4.
Click Port Settings on the menu (on the left side of the window) and the Port
Settings screen (see figure 24) is displayed.

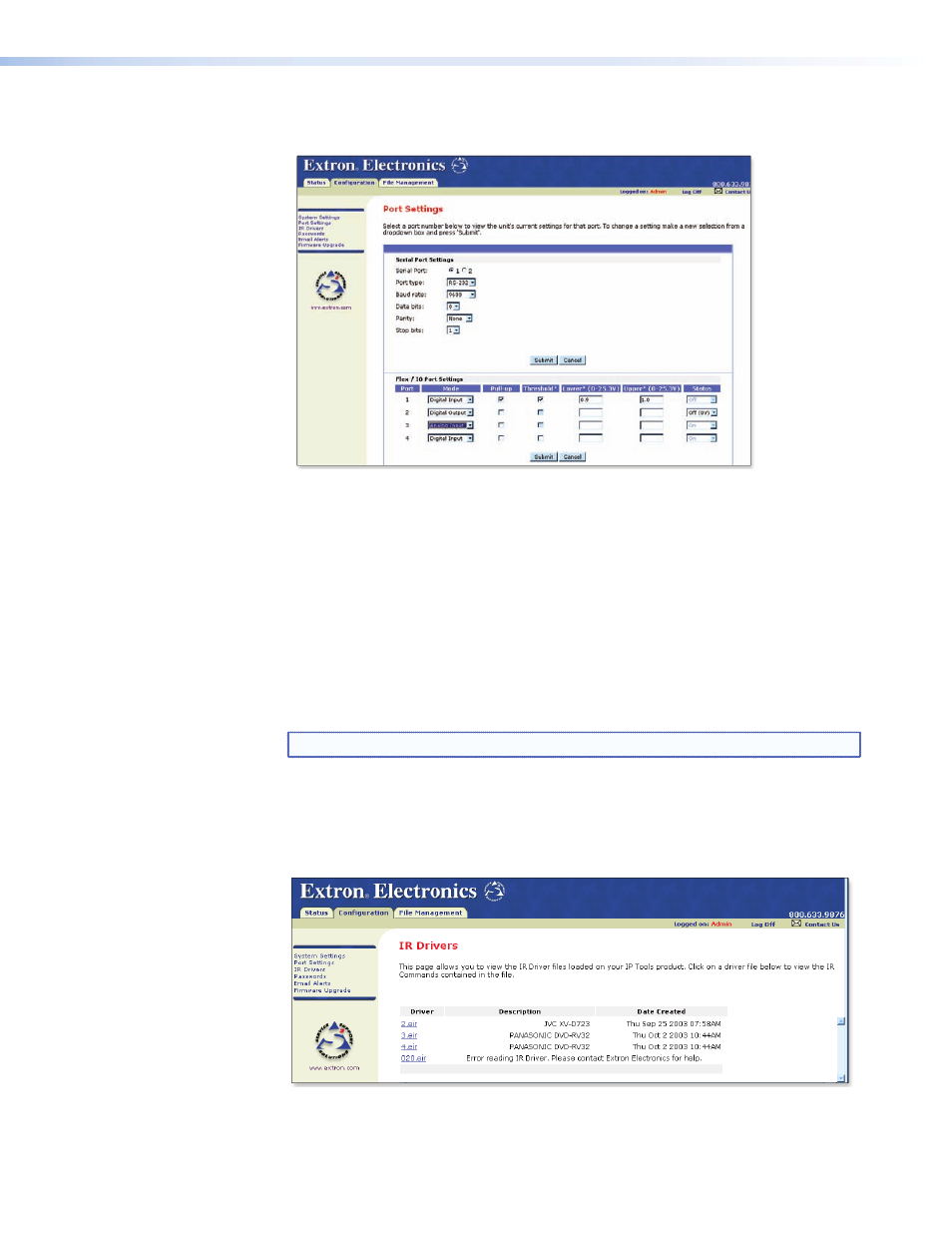

Figure 24.
Port Settings Screen
5.
Select the desired port and make changes to the port settings, as necessary.
6.
Click Submit to enter the changes or click Cancel to revert to the previous settings.
Controlling IR devices or sending IR commands
In order to send IR commands to IR devices via the default Web pages, do the following:
1.
Select the File Management tab. The File Management screen (see
) is
displayed.
2.
Upload the IR driver to the box by clicking Browse and locating the appropriate driver.
The IR driver file must be named numerically (ranging from 0 to 99).
NOTE: File names must end with an .eir extension (for example, 0.eir or 24.eir).
3.
Select the Configuration tab.
4.
Click IR Drivers on the menu (on the left side of the window) and the IR Drivers
screen (see figure 25) is displayed. All uploaded IR drivers should be displayed on this
page.
Figure 25.
IR Driver Screen
