AVT 200HD Tuner • HTML Configuration and Control

77

Configuration Pages

The

Configuration

tab contains enables you to four pages that only an administrator can

access. These pages are listed in the left sidebar menu on the

Configuration

tab. The

following sections describe the changes you can make from these pages.

System Settings Page

The AVT 200HD displays the System Settings page (shown on the next page) when you
click the

Configuration

tab. The screen consists of fields in which you can view and

edit IP administration and system settings. The Tuner Settings, Passwords, and Firmware
Upgrade pages can be accessed by clicking the appropriate link on the left sidebar menu.
See “

IP Addressing

” in the “Reference Information” section for basic information about IP

addresses and subnetting.

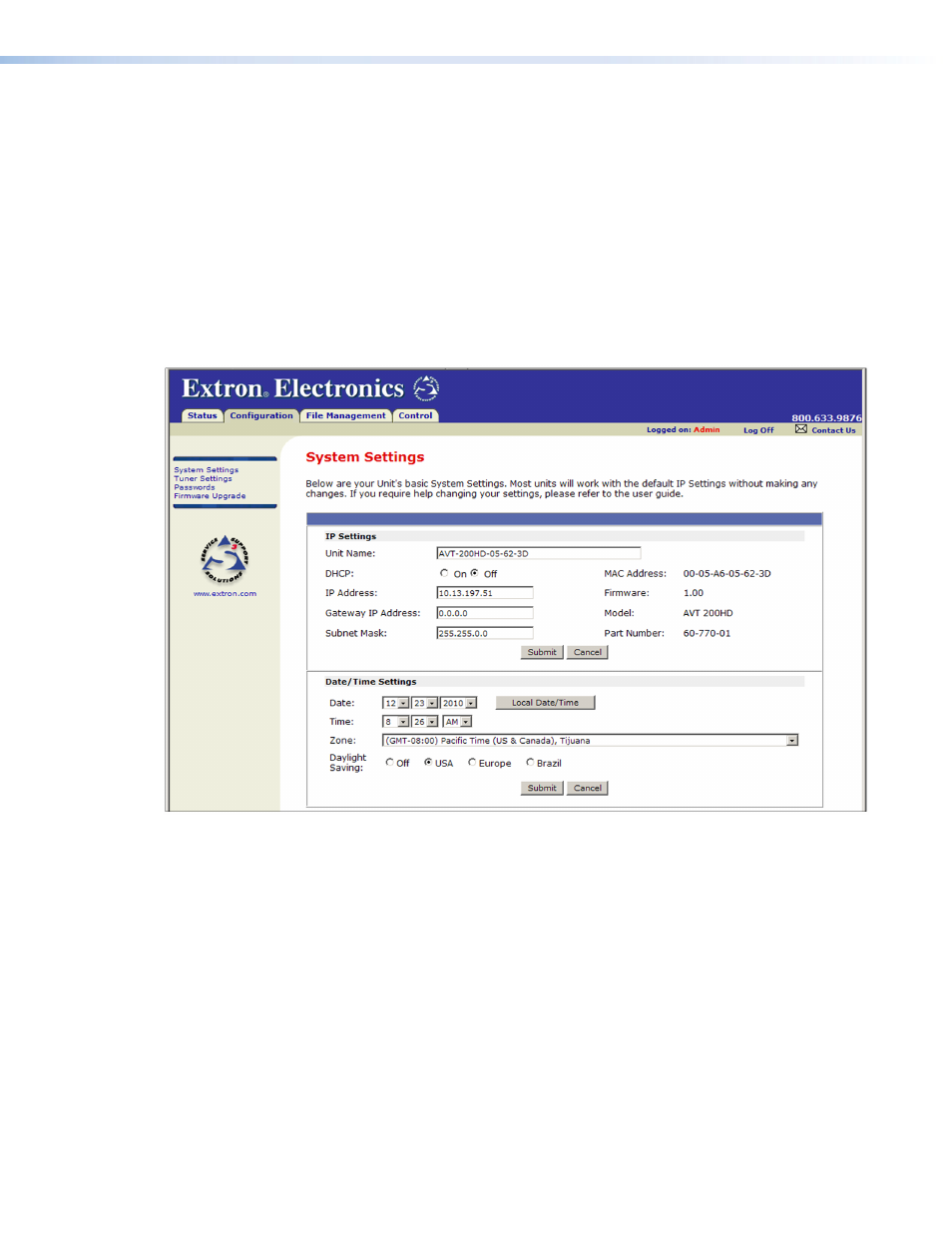

Figure 48.

System Settings Page

On password-protected connections, there are two levels of protection: administrator and
user. Administrators have full access to all tuning capabilities and editing functions. Users
can select channels, save and recall presets, and view all settings with the exception of
passwords.

Ethernet connection to the tuner, either entering SIS commands (see the “

Using SIS

Commands

section) or using the AVT 200HD Configuration & Control Program (see

the control program help file) is password protected.

Connection via the RS-232 port is not password protected.
