AVT 200HD Tuner • Operation

17

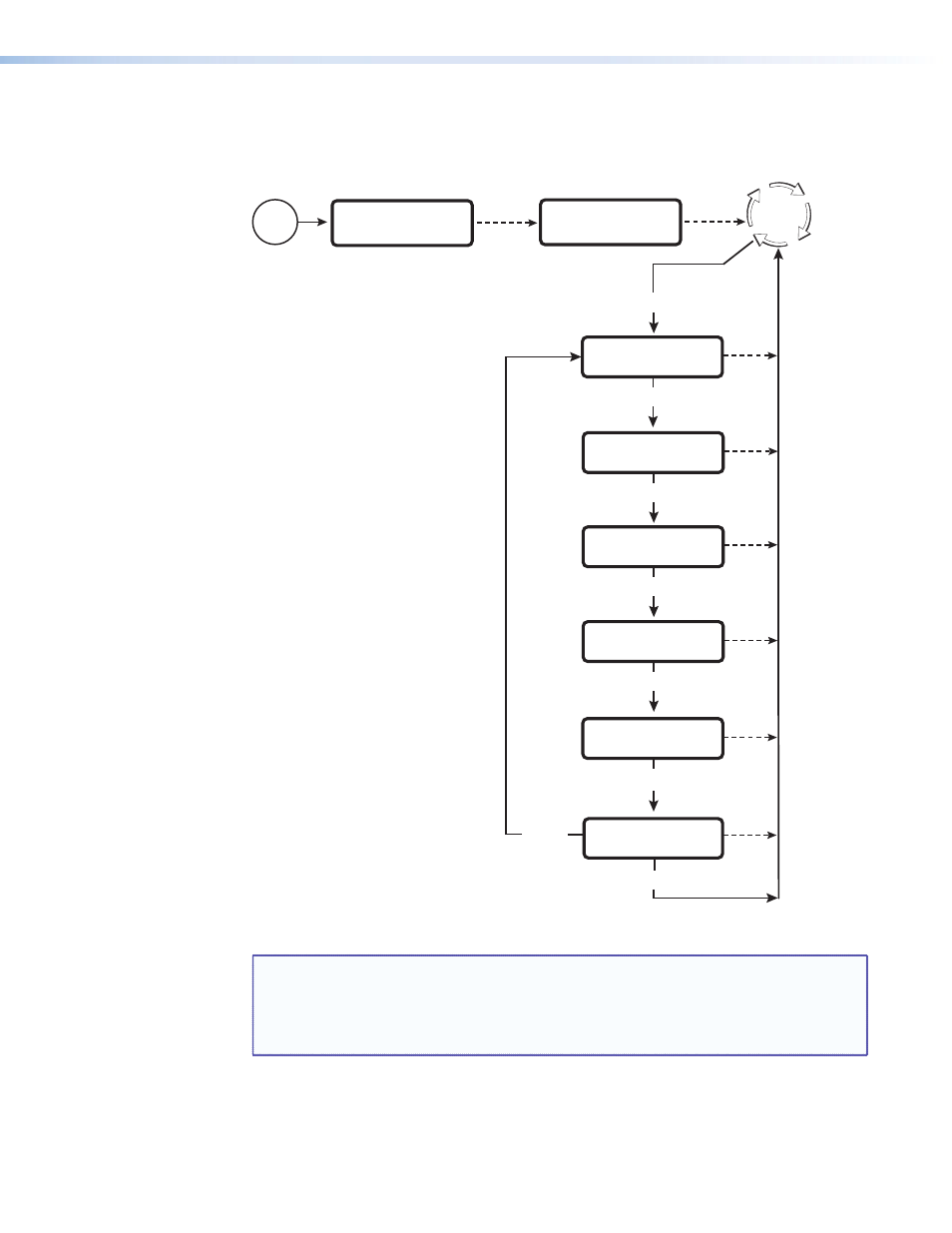

Menu flow diagram

The following diagram shows the menus that are displayed in the front panel LCD window
and the order in which they appear when you repeatedly press the Menu button.

Power

On

AVT 200HD

VERSION X.XX

OUTPUT

CONFIGURATION

2 sec.

Menu

Menu

AUDIO

CONFIGURATION

Menu

30 sec.

VIEW

COMM SETTING

Menu

30 sec.

30 sec.

Default

Cycle

EXTRON

ELECTRONICS

2 sec.

Menu

Next

PRESS NEXT

TO EXIT

Menu

30 sec.

CHANNEL

SETUP

30 sec.

30 sec.

UNIT

RESET

Menu

Figure 14.

AVT 200HD Menu Flow

NOTE: The menus time out and the default cycle is displayed after 30 seconds of

inactivity; however, any selections you made with the Adjustment knobs are
saved and remain in effect until you change them or reset the unit to factory
defaults (see “

Unit Reset Menu (Resetting from the Front Panel)

,” later in

this section).

The following sections describe the submenu options for each of these menus.
