AVT 200HD Tuner • Operation

13

Operation

This section describes the AVT 200HD front panel controls and the procedures for using
them to configure and operate the AVT tuner. Topics include:

Front Panel Features
Powering On
Menus on the LCD Screen
Resetting from the Rear Panel
Locking and Unlocking the Front Panel (Executive Modes)
Using the AVT 200HD IR Remote Control

Front Panel Features

AVT 200HD

ATSC TUNER

ADJUST

IR

MENU

SDTV
EDTV
HDTV

NEXT

VOLUME

CONFIG

CHANNEL

1

2

3

5

7

8

9

10

6

4

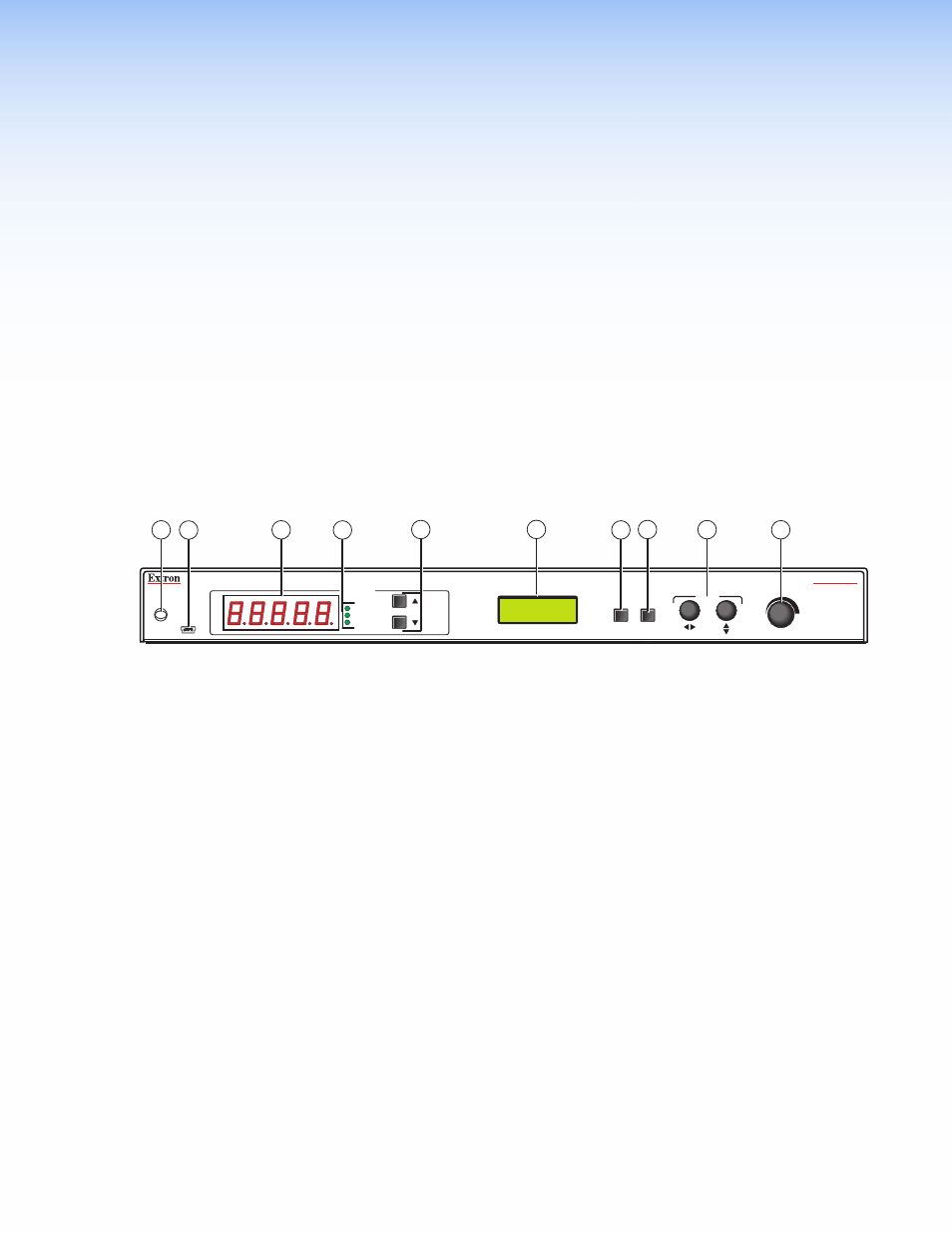

Figure 12.

AVT 200HD Front Panel

a

IR receiver — This sensor receives commands via infrared signals from the optional AVT

200HD IR Remote Control (see “

Using the AVT 200HD IR Remote Control

,” later in

this section).

b

Config port — Connect a USB cable (USB A to mini B) between your computer and

this port to configure and control the AVT via SIS commands or the Windows-based
configuration and control software, and to update the firmware.

c

LED display — This 5-digit, alphanumeric LED display indicates the over-the-air TV or

CATV channel being received (in tune mode) or the selected channel preset (in preset
mode).

d

TV format indicator LEDs — These three green LEDs light to indicate the digital

television format of the input signal. The following resolutions are supported:
SDTV — 480i
EDTV — 480p
HDTV — 720p and 1080i
When no TV signals are detected, none of these LEDs light.
