4.4 The Screen Layout
The screen layout closely resembles the layout of Windows applications (Multiple Docu-
ment Interface) like Microsoft Word or Excel. The main window includes a menu bar, a and a block
selection bar at the top and a statusbar at the bottom. Between these bars there is the client area where one or
more child windows can appear. If the size of the child windows is larger than the client space of the main
window scroll bars appear which can be used to move the actual visible portion of the total client area that is
used by all child windows.
The Win+Drive main window can be minimized, resized and maximized by the standard methods of Win-
dows. In most cases it will be run in maximized mode.
4 . 4 . I M e n u s
The menus are located at the top of the main window. Each menu item can be accessed by the standard
methods of Windows (clicking by the mouse or keycodes). A complete overview of all menu items is given in
Chapter 3.
4 . 4 . 2
The provides a fast method to access often used menu items. Clicking one of the buttons
equals accessing the equivalent menu item.

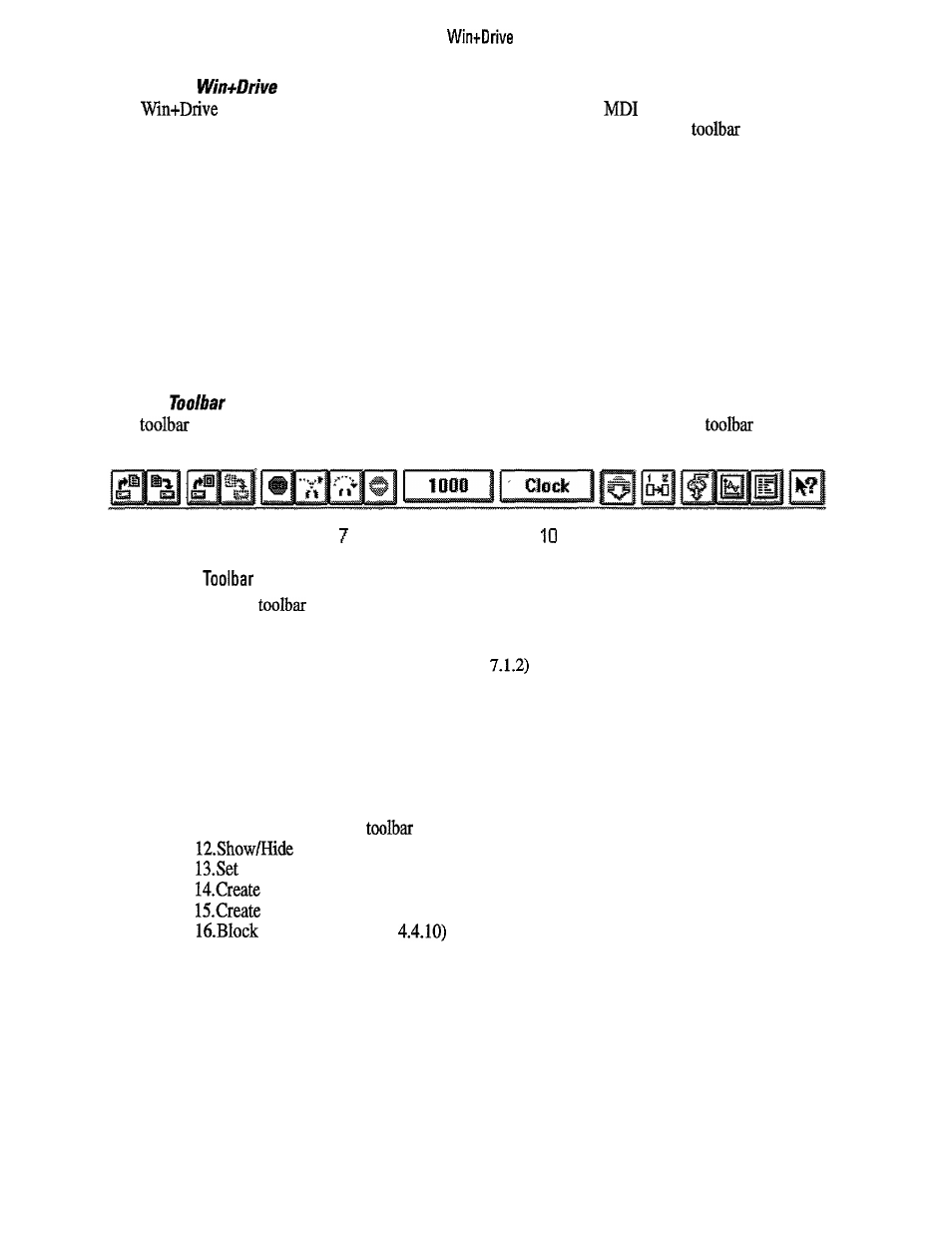

12 3 4 5 6 8 9 11 12 13 14 15 16
Figure 4.4.2.1:
By the buttons of the the following commands can be accessed by a simple mouse click
1. Open a tile (see paragraph 4.2.2)
2 . Save a file (see paragraph 4.3)
3 . Open a compound block (see paragraph
4 . Update the instances of a compound block (see paragraph 7.3)
5. Restart the simulation (see paragraph 9.5)
6. Simulate one loop (see paragraph 9.5)
7. Simulate several loops (see paragraph 9.5)
8. Stop the simulation (see paragraph 9.5)
9 . Set the number of loops to simulate (see paragraph 9.5)
lO.Display the number of loops that have been simulated (see paragraph 9.5)
11. Show/Hide the block (see paragraph 4.4.2)
the execution order (see paragraph 8.2)
a probe (see paragraph 9.1)
a monitor window (see paragraph 9.1)
a trace window {see paragraph 9.1)
help (see paragraph
