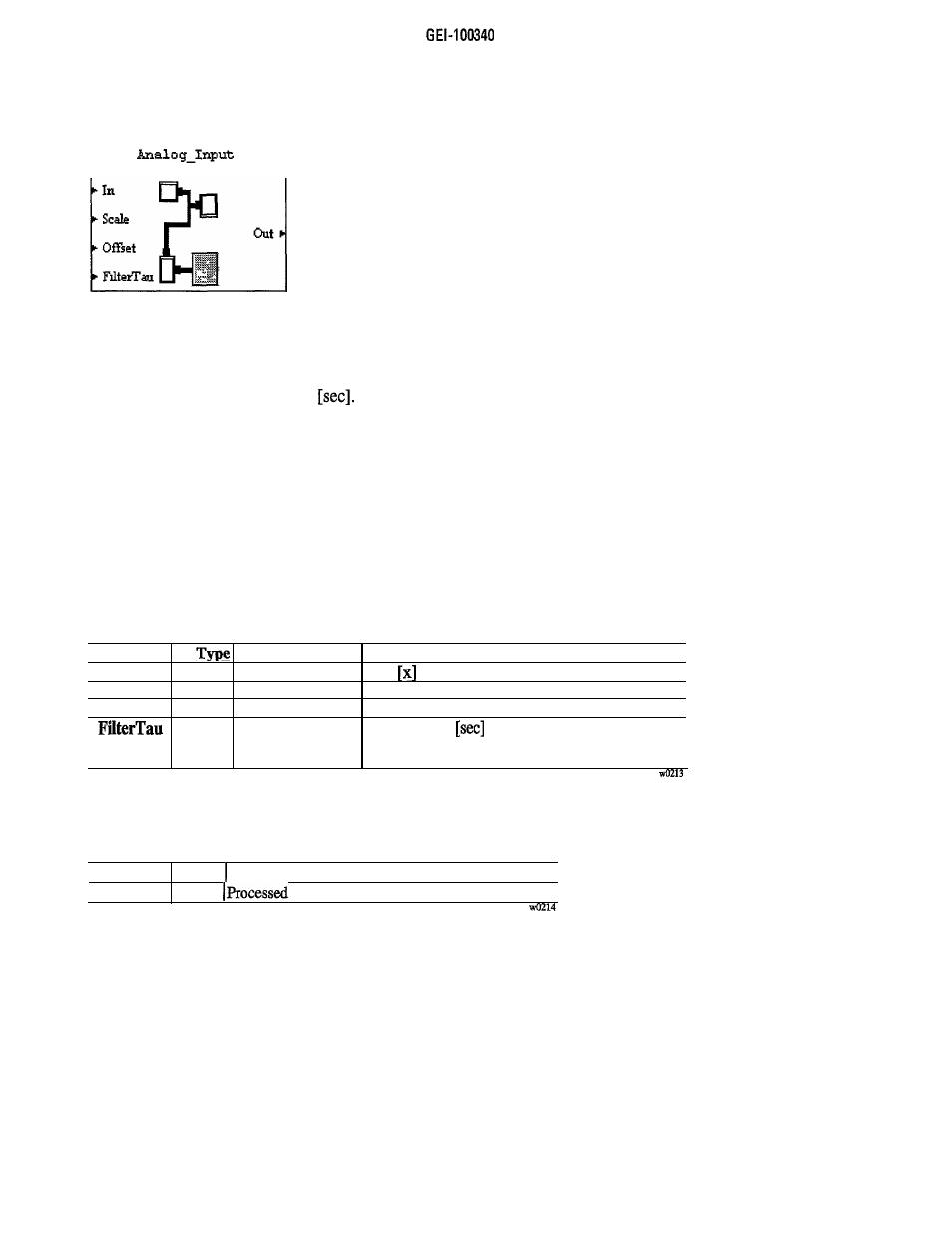

A n a l o g - I n p u t
Description
It reads the input (In), multiplies by scale (Scale), adds an offset (Offset) and filters it with a low pass filter
with a time constant of FilterTau
Input logical variables
None
Output logical variables
None
Input ports
N a m e Executed
In float always
Scale float always
Offset float always
float always
Function
Input to be read
Scale factor [y/x] multiplied by In input
Offset [y] added to In input
Time constant of the first order low pass
filter. It must be greater than the cycle time of the
control. If not. the filter will be disabled.
Output ports
name
o u t
type function
float output [y]
1 6 4
