5–10 MX350 AUTOMATIC TRANSFER CONTROL SYSTEM – INSTRUCTION MANUAL
CONFIGURATION SETPOINTS CHAPTER 5: SETPOINTS
Inputs
The following figure shows the screen that lists all assignable inputs. The user can
highlight any of these input signals and hit enter to see to which available terminal input
the signal can be assigned.

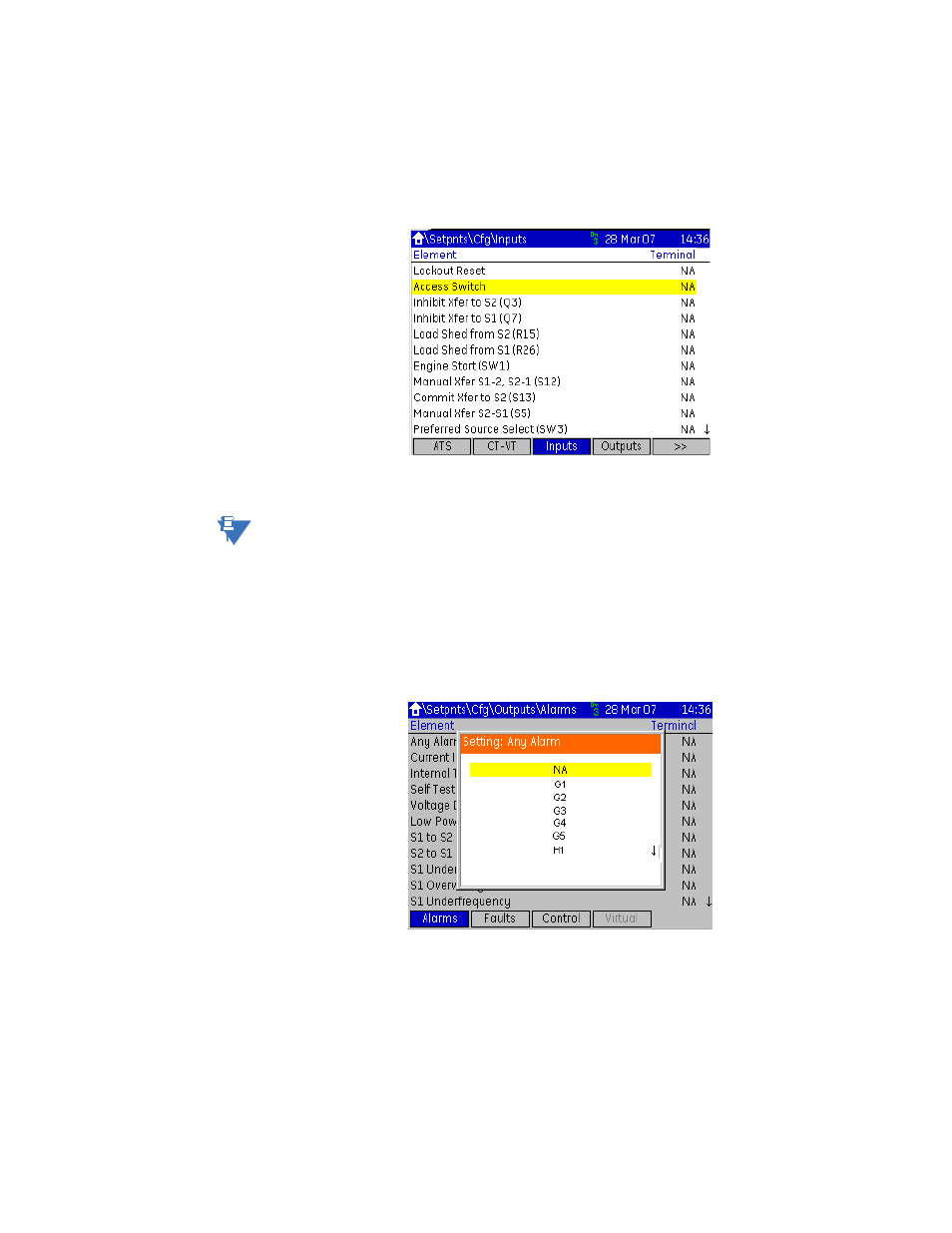

Figure 5: Input configuration setpoint page
Each function can be assigned to only one input. Once an input is assigned, its status can
be monitored from the Status > Inputs screen.
NOTE
NOTE: Only inputs to L cards are user programmable, with the exception of the input terminals for
G7 and G8. These inputs are hard coded for basic ATS functions.
Outputs
The following figure shows the screen that lists all assignable outputs. The user can
highlight any of these output signals and hit enter to see to which available terminal
output terminal the signal can be assigned.
Figure 6: Output configuration setpoint page
Each function can be assigned to only one output. Once an output is assigned, its status
can be monitored from the Status > Outputs screen .
Communications setpoints
The MX350 has one RS485 serial communnicatios port supporting a subset of the Modbus
protocol.
Select the Home > Setpnts > Cfg > Comms page to edit the communications setpoints.
