3–22

MX350 AUTOMATIC TRANSFER CONTROL SYSTEM – INSTRUCTION MANUAL

ENERVISTA™ MX350 SETUP SOFTWARE

CHAPTER 3: INTERFACING WITH THE MX350 AT CONTROLLER

The Site Device has now been configured via the Quick Connect feature for either USB or
Serial communications. Proceed to Connecting to the Relay below, to begin
communications.

Connecting to the

relay

Now that the communications parameters have been properly configured, the user can
easily communicate with the relay.
1.

Expand the Site list by double clicking on the site name or clicking on the «+» box to
list the available devices for the given site.

2.

Desired device trees can be expanded by clicking the «+» box. The following list of
headers is shown for each device:
Device Definition
Setpoints
Values
Diagnostics
Device Summary
Status
Exerciser
Maintenance.

3.

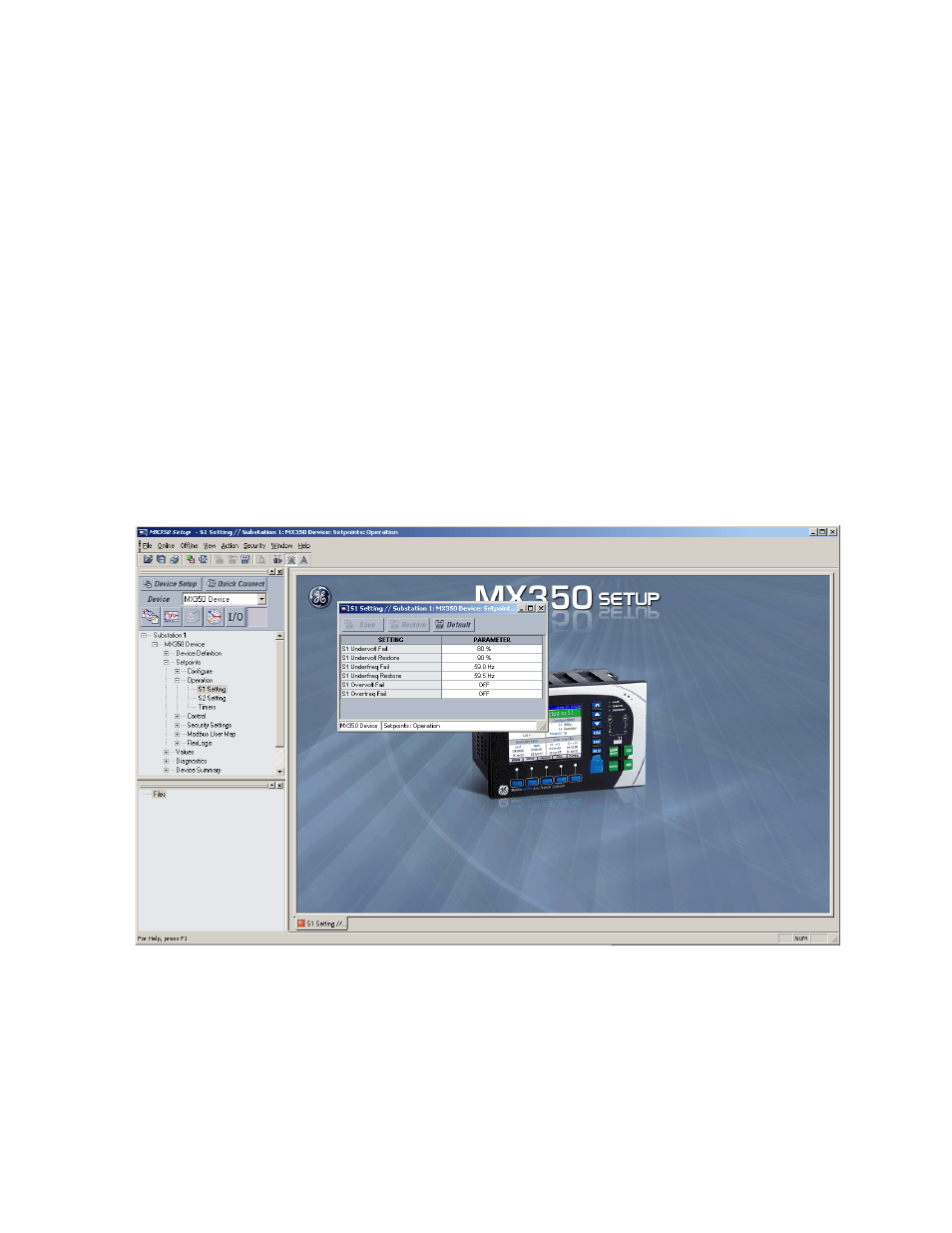

Expand any list item and double click on any item contained in the expanded list to
open that item, as shown below:

4.

The window related to that item will open with a corresponding status indicator tab on
the lower left of the EnerVista SR3 Setup window.

5.

If the status indicator is red, verify that the seria or USB cable is properly connected to
the relay, and that the relay has been properly configured for communications (steps
described earlier).

The "item" settings can now be edited, printed, or changed. Other windows can be
displayed and edited in a similar manner. These windows can be arranged, and resized at
will.
