Page 64
3–34
MX350 AUTOMATIC TRANSFER CONTROL SYSTEM – INSTRUCTION MANUAL
POWER ANALYSIS
CHAPTER 3: INTERFACING WITH THE MX350 AT CONTROLLER

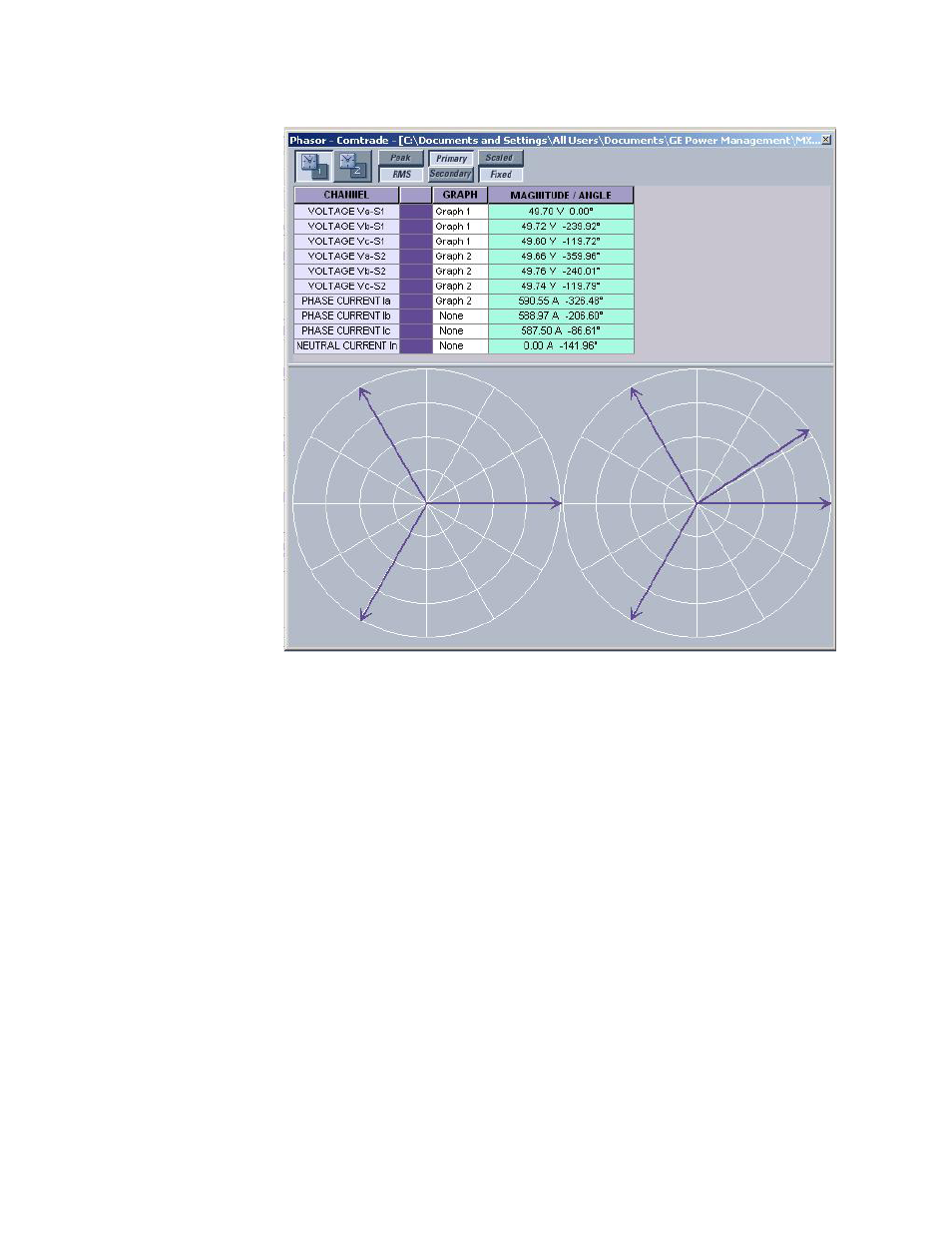

12. Use the graph attribute utility described in step 10, to change the vector colors.
Data logger
The data logger feature is used to sample and record up to ten actual values at a
selectable interval. The datalogger can be run with Continuous mode Enabled, which will
continuously record samples until stopped by the user; or with Continuous mode Disabled,
which will trigger the datalog once without overwriting previous data.
