Printing setpoints and actual values – GE Industrial Solutions MX350 Instruction manual User Manual
Page 57
CHAPTER 3: INTERFACING WITH THE MX350 AT CONTROLLER
ENERVISTA™ MX350 SETUP SOFTWARE
MX350 AUTOMATIC TRANSFER CONTROL SYSTEM – INSTRUCTION MANUAL
3–27
6.

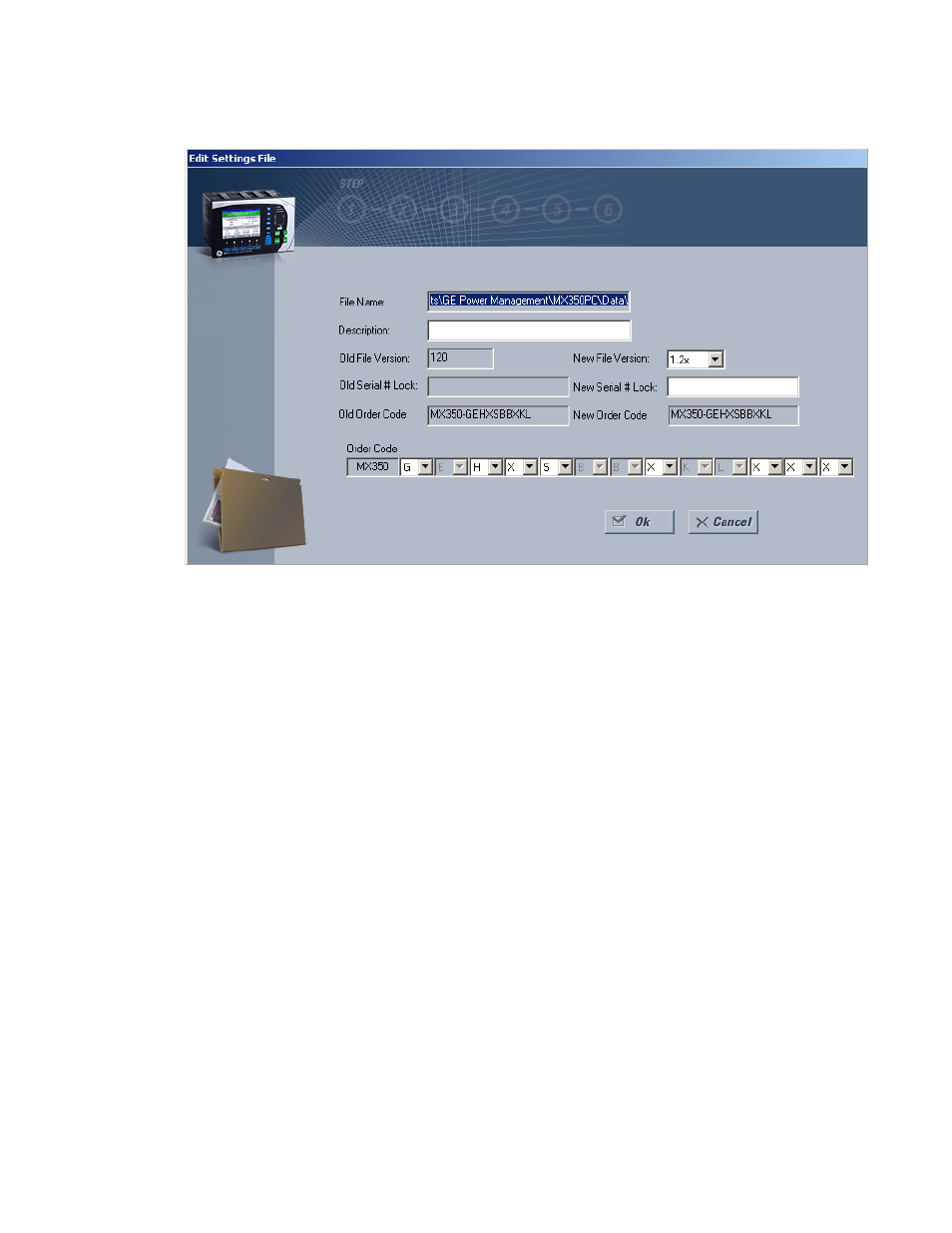

For example, if the firmware revision is MAMO3MA120.000 (Firmware Revision 1.20)
and the current setpoint file revision is 1.10, change the setpoint file revision to “1.2x”.
7.
Enter any special comments about the setpoint file in the "Description" field.
8.
Select the desired firmware version from the "New File Version" field.
9.
When complete, click OK to convert the setpoint file to the desired revision. See
Loading Setpoints from a File below, for instructions on loading this setpoint file into
the MX350.
Printing setpoints and
actual values
The software allows the user to print partial or complete lists of setpoints and actual
values. Use the following procedure to print a list of setpoints:
1.
Select a previously saved setpoints file in the File pane or establish communications
with a device.
2.
From the main window, select the Offline > Export Settings File menu item.
