CHAPTER 5: SETPOINTS CONFIGURATION SETPOINTS
MX350 AUTOMATIC TRANSFER CONTROL SYSTEM – INSTRUCTION MANUAL 5–3
Configuration setpoints
The configuration setpoints contain data on ATS configuration as well as system setup,
inputs, outputs, communications, CTs, and VTs. The following sub-pages are available.
•
ATS (setpoints related to ATS configuration).
• CT-VT (setpoints related to CT and VT configuration).
• Inputs (setpoints related to digital input configuration)
• Outputs (setpoints related to digital output configuration)
• Comms (setpoints related to communications configuration)
• System (setpoints related to MX350 system configuration)
• Events (setpoints related to the event recorder)
• Counters (setpoints related to the digital counters)
ATS setpoints
The MX350 can control the following types of transfer switch:
1.
Standard (Open) Transition (with or without bypass panel)
2. Delayed Transition (with or without bypass panel)
3. Closed Transition (with or without bypass panel)
The home screen tells the user for which application a particular MX350 is suitable. The
figure below shows the home screen for a Closed Transition type controller.
NOTE
NOTE: It is important not to confuse the type of ATS being controlled, with the mode in which it is
being operated. For example, a Closed Transition type switch can be operated in Closed
Transition Mode or in Delayed Transition Mode.
Select the Home > Setpoints > Config > ATS page to edit the ATS data settings.

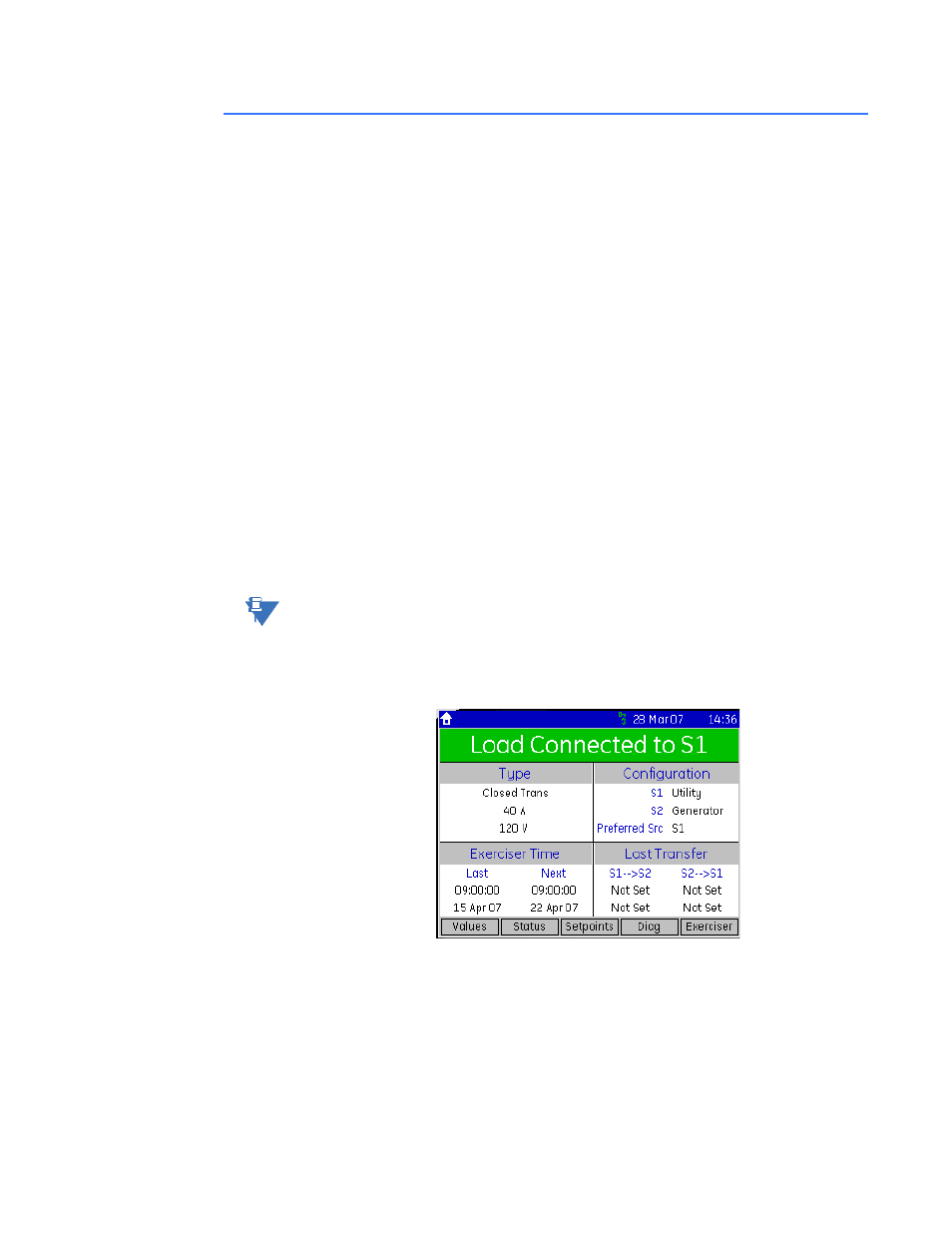

Figure 2: Closed Transition home screen
