Page 42
3–12
MX350 AUTOMATIC TRANSFER CONTROL SYSTEM – INSTRUCTION MANUAL
GRAPHICAL CONTROL PANEL
CHAPTER 3: INTERFACING WITH THE MX350 AT CONTROLLER
Control page
This page is used to view the active control modes. For example, selection of primary
source, automatic vs manual initialization of transfer, etc.

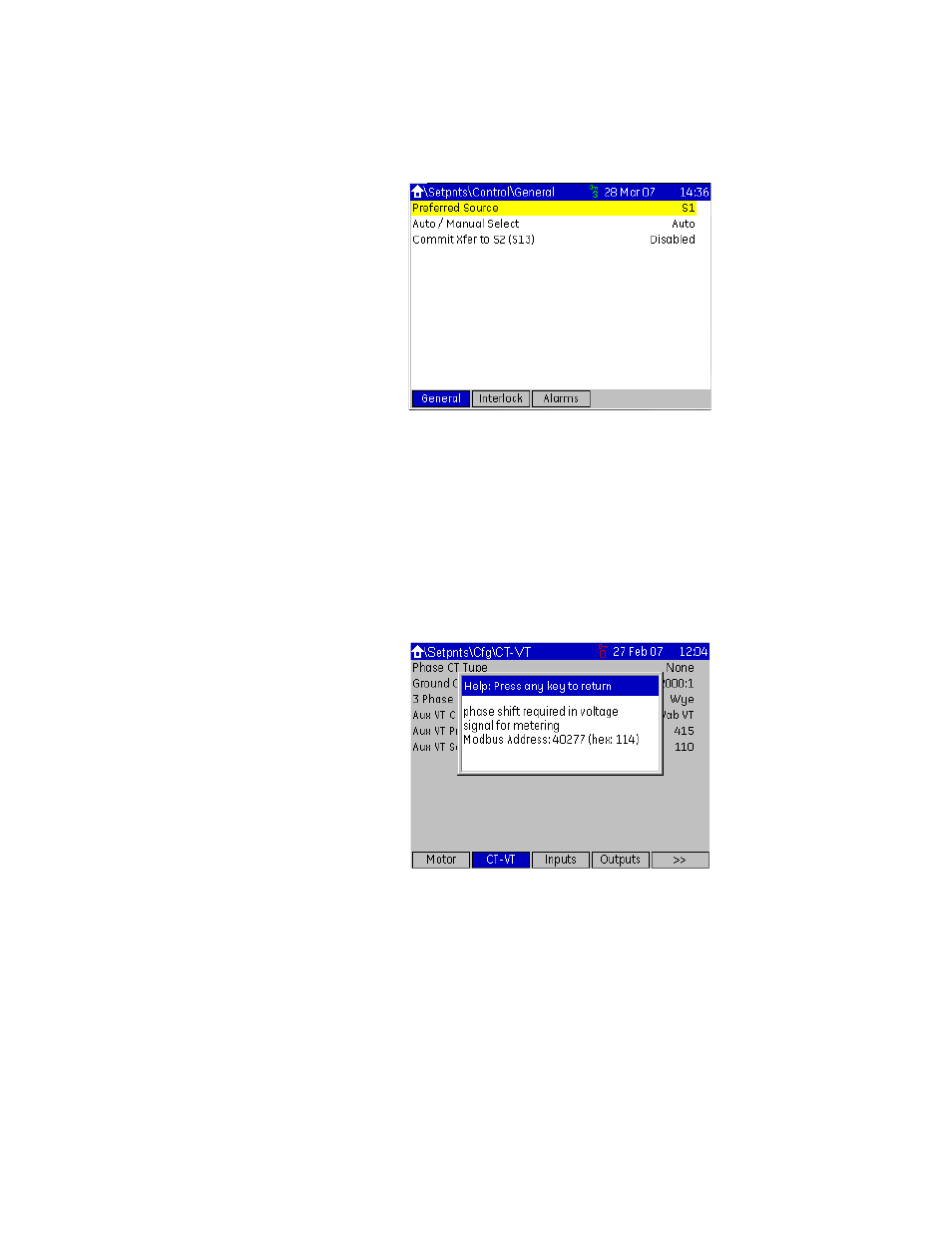

Figure 17: Typical control page display
Refer to the Control chapter for details on control page functionality.
Popup windows
There are three types of popup windows:
•
Setpoint editor popup windows.
•
Help popup windows.
•
Invalid operation popup windows.
Refer to the Setpoints chapter for details on setpoint editor popup windows.
Help popup windows are initiated by pressing the HELP key. This will display help text for
the active setpoint field.
Figure 18: Typical help popup window
Invalid operation popups explain the problem and provide direction on how to rectify it.
This may also include invalid features or uninstalled options. Where a keypress is illegal
because a security passcode is required, the popup is a passcode entry dialog box.
