Using the quick connect feature – GE Industrial Solutions MX350 Instruction manual User Manual
Page 51
CHAPTER 3: INTERFACING WITH THE MX350 AT CONTROLLER
ENERVISTA™ MX350 SETUP SOFTWARE
MX350 AUTOMATIC TRANSFER CONTROL SYSTEM – INSTRUCTION MANUAL
3–21
8.
Select the relay as the USB device.
9.
Click the Read Order Code button to connect to the device and upload the order
code.
10. Click OK when the relay order code has been received. The new device will be added
to the Site List window (or Online window) located in the top left corner of the main
window.
The Site Device has now been configured for USB communications. Proceed to Connecting
to the Relay below, to begin communications.
Using the Quick
Connect feature

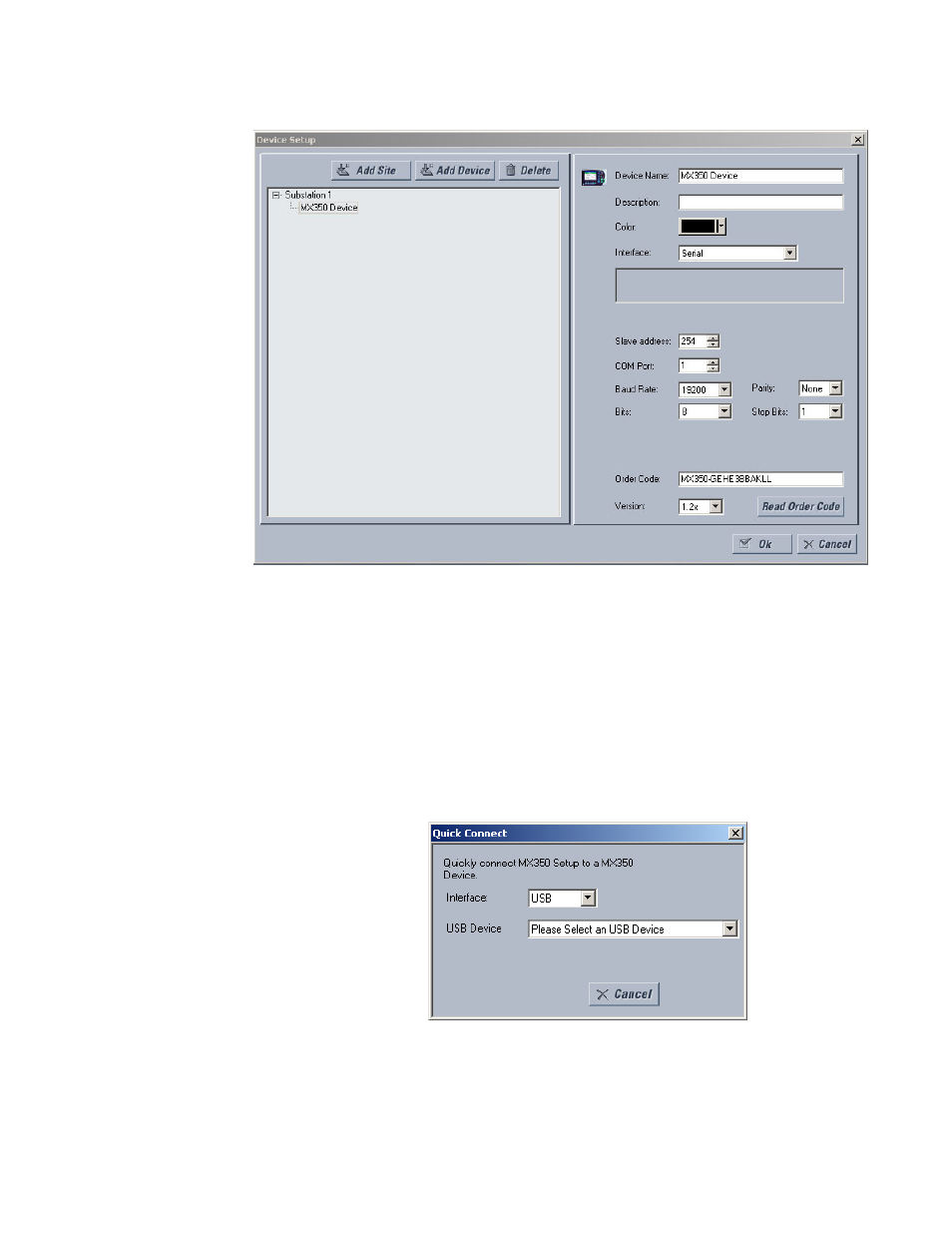

The Quick Connect button can be used to establish a fast connection through the front
panel USB port of a relay. The following window will appear when the QuickConnect
button is pressed:
As indicated by the window, the "Quick Connect" feature can quickly connect the software
to a front port if the USB is selected in the interface drop-down list. Select " Relay" and
press the Connect button.
When connected, a new Site called “Quick Connect” will appear in the Site List window.
