CHAPTER 7: DIAGNOSTICS
STATISTICAL INFORMATION
MX350 AUTOMATIC TRANSFER CONTROL SYSTEM – INSTRUCTION MANUAL
7–3
Statistical information
The Home > Diag > Stats page displays date and time information as well as the reason
for the last failure of the preferred source. It also contains information about how long the
load has been in either source, how many transfers have occurred, and the total time the
load has been without power. All this data is accumulative and can be reset by pressing
the CLEAR soft key.

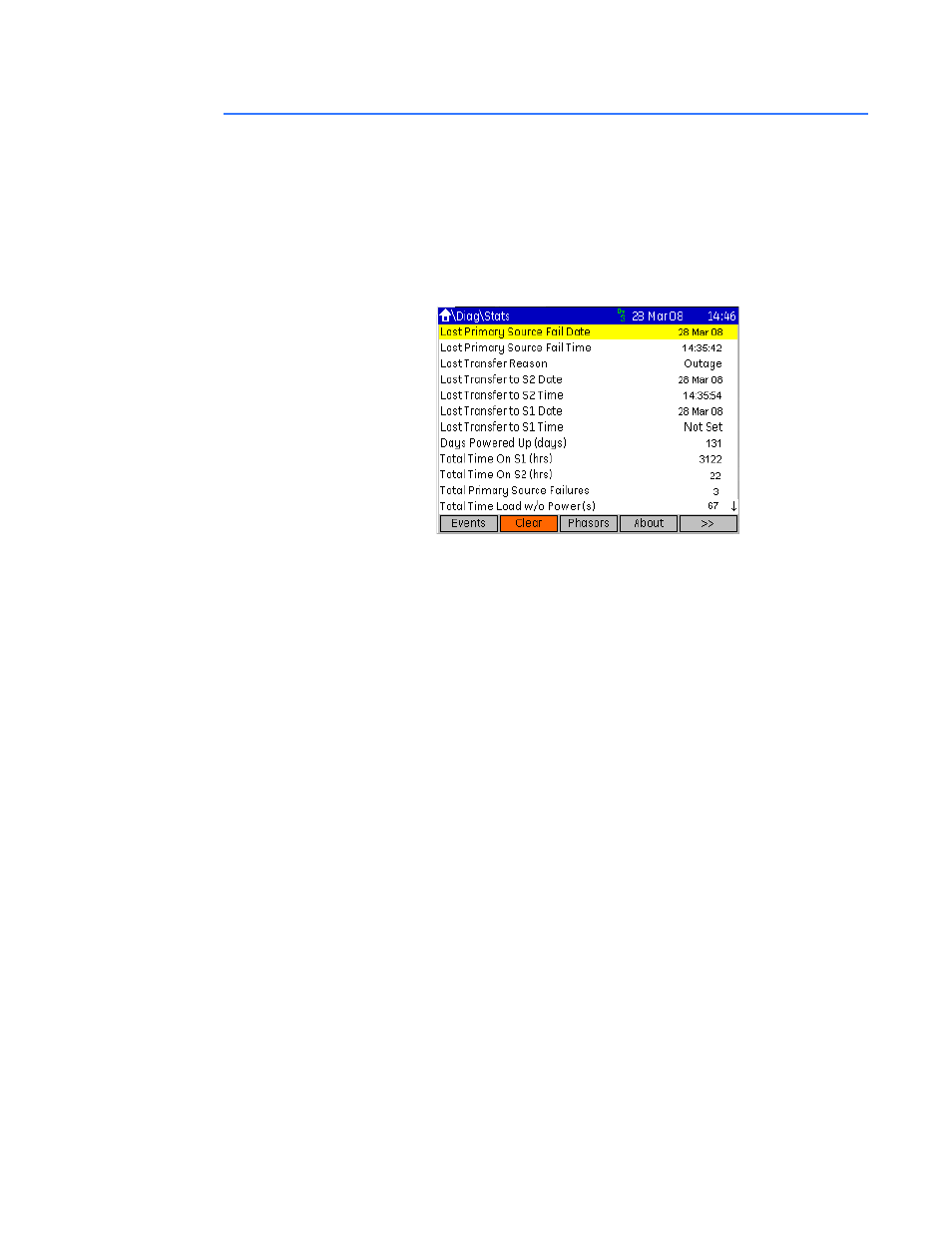

Figure 3: Statistical information page
