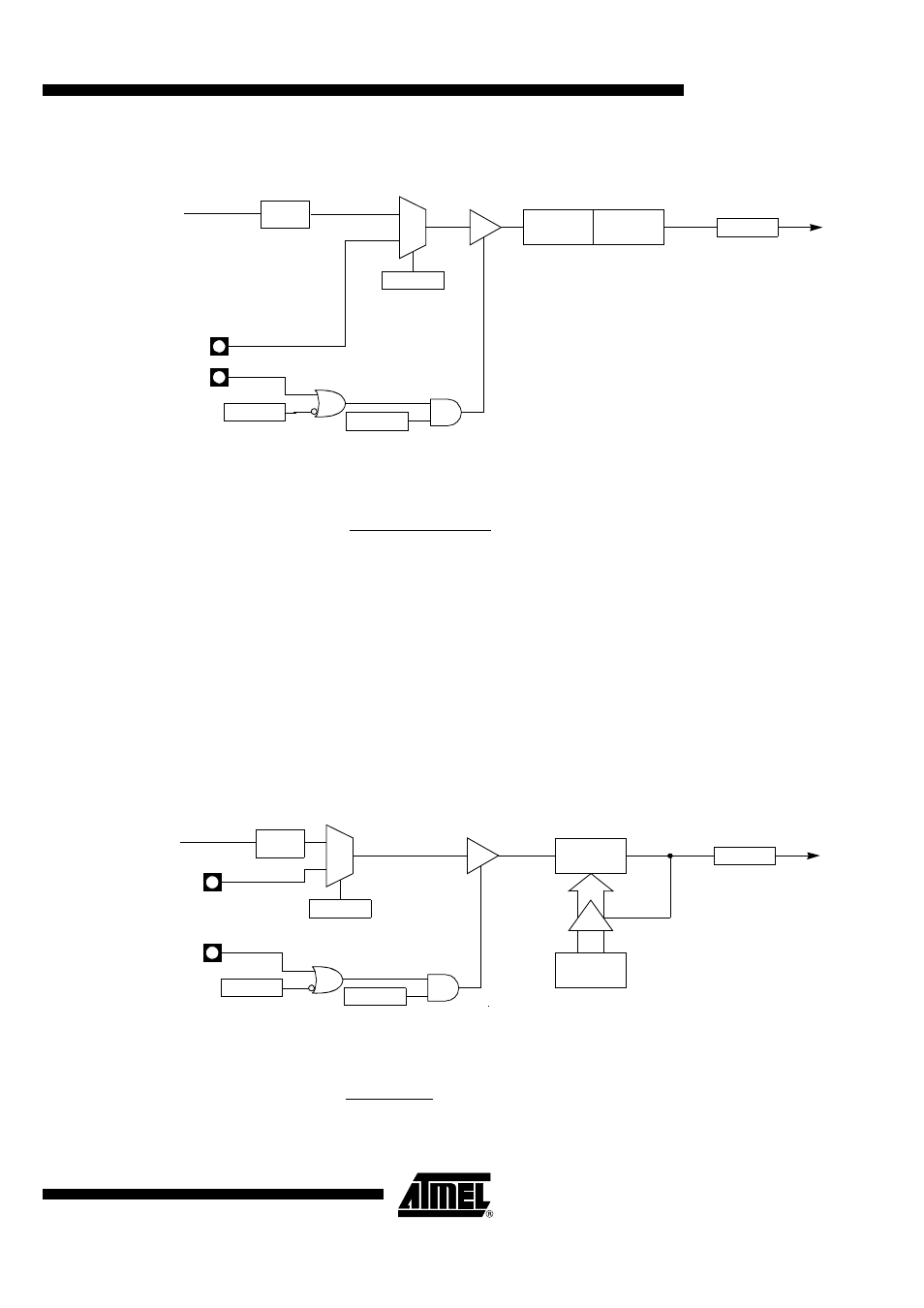

Figure 92. Timer/Counter x (x = 0 or 1) in Mode 1
Figure 93. Mode 1 Overflow Period Formula
Mode 2 (8-bit Timer with Auto-
Reload) Mode 2 configures Timer 0 as an 8-bit Timer (TL0 register) that automatically reloads
from the TH0 register (see Figure 94). TL0 overflow sets the TF0 flag in the TCON reg-
ister and reloads TL0 with the contents of TH0, which is preset by the software. When
the interrupt request is serviced, the hardware clears TF0. The reload leaves TH0
unchanged. The next reload value may be changed at any time by writing it to the TH0
register.
Figure 95 gives the autoreload period calculation formula when in timer mode.
Figure 94. Timer/Counter x (x = 0 or 1) in Mode 2
Figure 95. Mode 2 Autoreload Period Formula
TRx
TCON reg
TFx
TCON reg
0
1
GATEx
TMOD reg
Overflow
Timer x
Interrupt
Request
C/Tx#
TMOD reg
TLx
(8 bits)
THx
(8 bits)
INTx#
Tx
FCK_Tx
/6
6 ⋅
(65536 – (THx, TLx))
TFx
PER
=
F
CK_Tx
TRx
TCON reg
TFx
TCON reg
0
1
GATEx
TMOD reg
Overflow
Timer x
Interrupt
Request
C/Tx#
TMOD reg
TLx
(8 bits)
THx
(8 bits)
INTx#
Tx
FCK_Tx
/6
TFx
PER
=
F
CK_Tx
6
⋅
(256 – THx)
