J300P-4
END YOKES with SPLINED HOLES

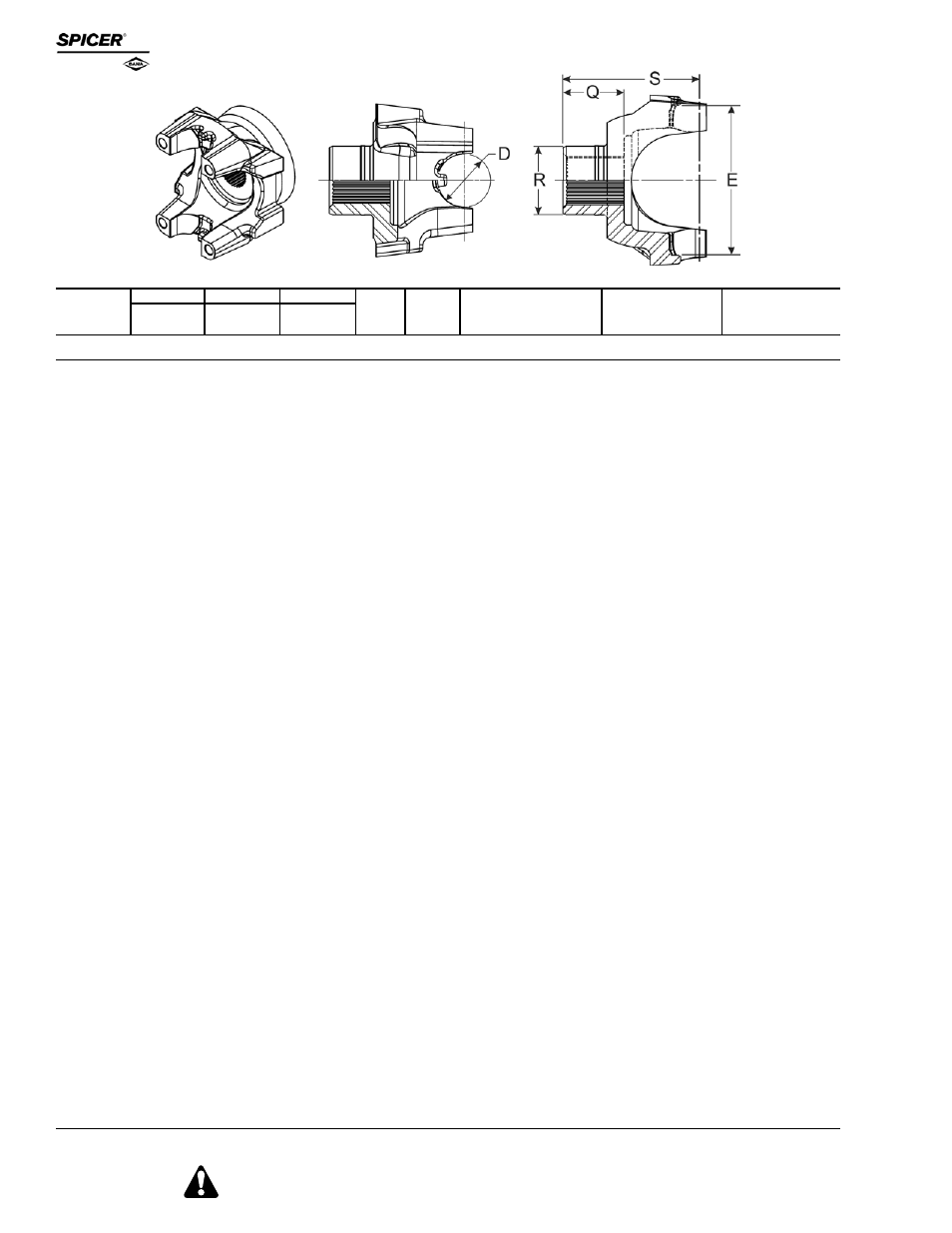

R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger/plug) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
6
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
BS/CV/HR/UB Style
SPL140 SERIES (Continued) E-5.457 IN. D-1.938 IN. USE KIT SPL140X
USE BEARING RETAINER NO. 140-70-18X
2.024-39 Spline
2.024 2.750 2.435 5.250 .090 HR 140-4-1431-1X• 231599 140-4-1421-1•
2.024 3.000 2.312 5.680 .090 HR 140-4-241-1X 232182 140-4-211-1©
2.024 3.000 2.312 5.680 .090 HR 140-4-231-1X 231359 140-4-211-1©
2.024-39 Involute Spline
2.024 3.000 1.817 4.470 .250 HR 140-4-07494X — 5007493©
2.024 3.000 1.817 4.470 .250 HR 5007494 — 5007493©
5007494 was replaced by 140-4-07494X
2.024 3.000 2.250 6.250 .250 HR 140-4-1641-1X 232511 140-4-1631-1©
Flanged yoke w/8 tapped metric holes.
2.024 3.000 2.284 4.940 — HR 140-4-1161-1X 232511 140-4-1151-1©
2.024 3.000 2.284 4.940 .250 HR 140-4-371-1X 232511 140-4-361-1
140-4-361-1 was replaced by 140-4-371-1X
2.024 3.000 2.284 7.587 .250 HR 140-4-1401-1X 232511 140-4-1391-1©
Metric flanged yoke
2.114-32 Involute Spline
2.114 3.000 2.250 4.810 .424 HR 140-4-931-1X• 232200 140-4-921-1©
2.143-41 Involute Spline
2.143 2.938 2.500 5.560 — HR 140-4-431-1X 232604 140-4-421-1©
2.143 3.000 2.166 5.030 .310 HR 5002879 5002871 5002878©
5002879 was replaced by 140-4-02879-1X
2.143 3.000 2.166 5.030 .310 HR 140-4-02879-1X 5002871 5002878©
2.178-41 Involute Spline
2.178 3.543 1.882 5.040 .078 HR 5001047 5001045 5001037
OEM only
2.178-43 Involute Spline
2.178 3.539 2.050 5.100 .157 HR — — 140-4-761-1•
2.178 3.541 2.047 5.100 .160 HR — — 140-4-1231-1•
2.195-34 Involute Spline
2.195 3.543 1.889 4.421 — HR — — 5007599©
OEM only
2.195 3.543 1.889 4.646 — HR — — 5007600©
OEM only
2.250-10 Spline
2.250 3.500 3.000 6.000 — HR 140-4-1101-1X• 231616 140-4-1091-1©
2.274-44 Spline
2.274 3.000 2.500 5.160 .236 HR 140-4-331-1X — 140-4-321-1©
2.274-44 Involute Spline
2.274 2.938 2.344 5.190 — HR 140-4-1201-1X 232604 140-4-1191-1©
2.274 2.938 2.350 5.190 — HR 140-4-451-1X 232604 140-4-441-1©
2.274 3.000 2.500 5.160 .236 HR 140-4-1271-1X 232511 140-4-1261-1©
2.374-46 Spline
2.374 3.250 2.875 6.210 .140 HR 140-4-291-1X 231615 140-4-271-1©
