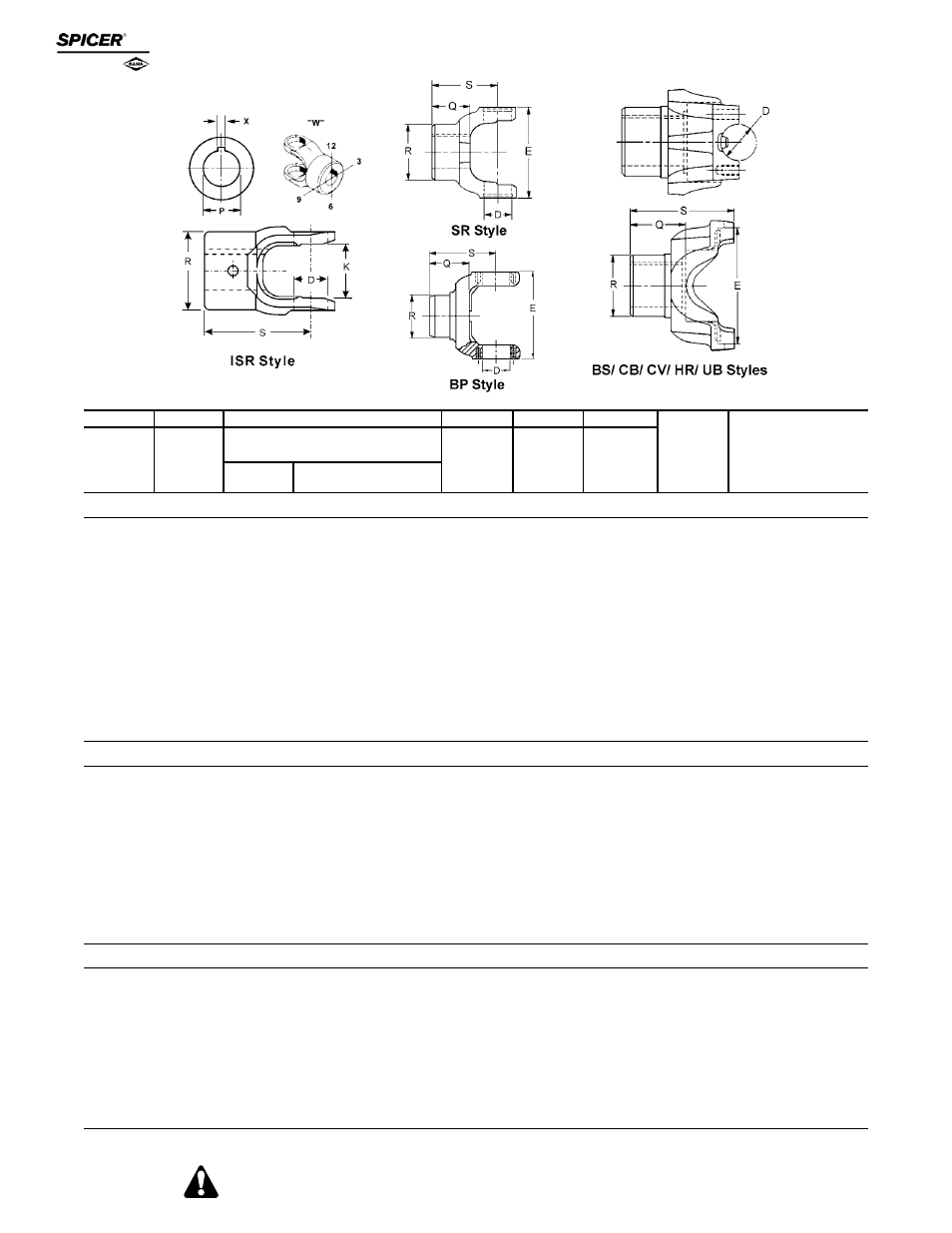

STRAIGHT ROUND HOLE
J300P-4
66
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
P
Round
Hole
Diameter
X
SAE
Keyway
Width
W
Set Screw Location in
Relation to Keyway
Hole
Diameter
Location
Keyway Set Screw
R
Hub
Diameter
Q
Length
Thru
Hole
S
C/L
to End
of Hub
S
T
Y
L
E
End Yoke
Part
Number
1350 SERIES SR: E-3.875 OTHERS: E-3.625, D-1.188 USE KIT 5-178X, 5-799X
.750 — — — — 2.000 — 4.090 BS 3-4-543-1
1.000 .250 — 12 — 2.000 — 2.690 SR 3-4-33
1.125 .250 — 12 — 2.000 — 2.688 SR 3-4-43
1.250 .312 — 12 — 2.000 — 2.750 SR 3-4-53
1.250 .312 — 12 — 2.000 — 2.688 SR 3-4-93
1.250 .312 .375 12 — 2.000 — 2.750 SR 3-4-13
Two set screws, 135° & 225° from keyway
1.250 .312 .375 12 6 2.062 — 3.000 SR 3-4-103
1.250 .314 .375 12 6 2.250 1.500 3.000 BS 3-4-283-1
1.375 .312 .375 12 6 2.250 1.500 3.031 BS 3-4-613-1
1.500 .313 .375 12 — — — 3.500 BS 3-4-243-1
1.500 .375 .375 12 6 — — 3.469 BS 3-4-333-1
1410 SERIES SR: E-4.438 OTHERS: E-4.188, D-1.188 USE KIT 5-160X, 5-801X
1.250 .250 .500 12 6 2.250 — 3.700 BS 3-4-163-1
1.250 .312 .375 12 6 2.250 2.000 3.688 BS 3-4-343-1
1.250 .313 — 12 — 2.250 2.000 3.700 UB 3-4-1763
3-4-1763 was replaced by 3-4-1763-1
1.250 .313 — 12 — 2.252 2.000 3.700 BS 3-4-1763-1
1.500 — — 00 — 2.690 — 4.000 BS 3-4-223-1
1.500 .377 .500 12 135° 2.690 2.270 4.000 BS 3-4-263-1
Two set screws, 135° & 225° from keyway
1.750 .439 .500 12 — 2.750 2.500 4.250 BS 3-4-273-1
Two set screws, 135° & 225° from keyway
1480 SERIES SR: E-4.438 OTHERS: E-4.188, D-1.375 USE KIT 5-188X, 5-803X
1.375 — — — — 2.130 — 1.440 — 3-4-1743
3-4-1743 was replaced by 3-4-1743-1
1.500 .375 .375 12 12 & 6 3.188 2.063 4.625 SR 3-4-1173•
.318 dia. hole drilled thru hub
2.000 .500 .375 3 3 & 9 3.188 2.063 4.625 SR 3-4-1753•
.318 dia. hole drilled thru hub
