J300P-4

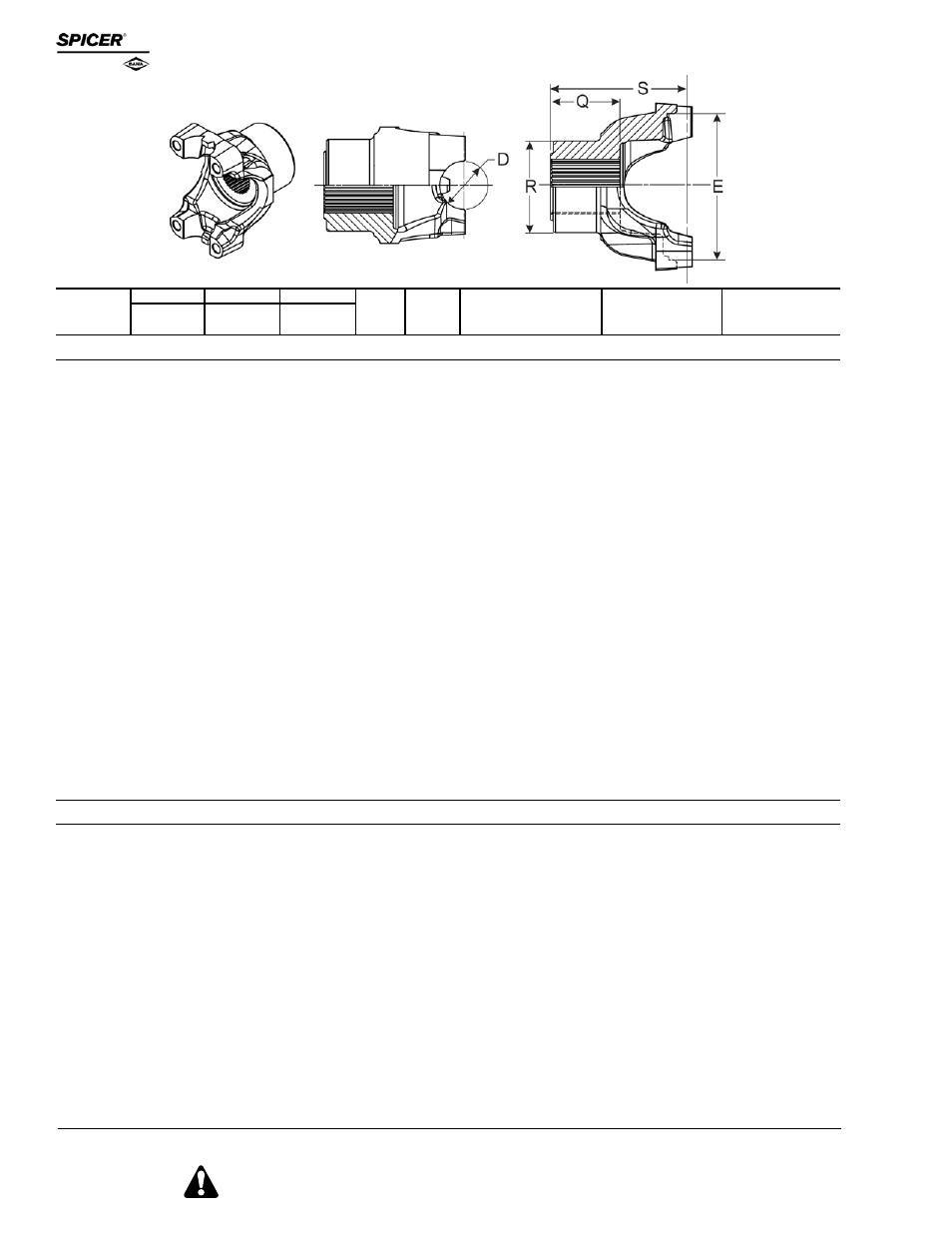

END YOKES with SPLINED HOLES
R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger/plug) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
2
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
BS/CV/HR/UB Style
SPL55 SERIES E-4.188, D-1.375 USE KIT SPL55-1X, SPL55-2X, 5-803X, 5-804X
USE STRAP ASSY 3-70-38X
1.567-36 Involute Spline
1.567 2.618 1.980 4.025 — BS — — 55-4-11-1
Coupling shaft yoke
1.750-10 Spline
1.750 2.500 1.935 5.102 — HR — — 55-4-111-1
Flanged end yoke.
1.790-34 Involute Spline
1.790 2.375 2.188 4.219 — BS 55-4-41-1X 233034 55-4-31-1©
1.790 2.564 2.760 4.870 — BS 55-4-131-1X 231059 55-4-121-1©
For 9” x 3” Brake
Contains plug/washer #231059
1.790 2.564 2.760 4.870 — BS 5001480 231059 55-4-201-1©
5001480 was replaced by 55-4-01480-1X
1.790 2.564 2.760 4.870 — BS 55-4-01480-1X 231059 55-4-201-1©
1.790 2.564 2.760 4.870 — BS 55-4-101-1X 231059 55-4-91-1©
For 9” x 3” Brake
2.024-39 Involute Spline
2.024 3.000 1.847 3.875 .250 BS 55-4-03328-1X 5006975 5003327©
2.024 3.000 1.847 3.875 .250 BS 5003328 5006975 5003327©
5003328 was replaced by 55-4-03328-1X
2.024 3.000 2.281 4.330 .250 BS 55-4-81-1X 232511 55-4-71-1©
2.034-39 Involute Spline
2.034 3.000 1.844 5.438 .250 BS 5003813 5006975 5003812©
5003813 was replaced by 55-4-03813-1X
2.034 3.000 1.844 5.438 .250 BS 55-4-03813-1X 5006975 5003812©
SPL70 SERIES E-4.964, D-1.375 USE KIT SPL70X, SPL70-1X, 5-808X, 5-809X
USE STRAP ASSY. 3-70-38X
1.543-24 Involute Spline
1.543 2.241 1.844 5.750 — BS 70-4-271-1X• — 70-4-261-1©
Flanged yoke w/eight, 7-73-620 bolts
1.750-10 Spline
1.750 2.500 2.000 5.750 — BS 70-4-171-1X• — 70-4-161-1©
1.783-34 Involute Spline
1.783 2.940 2.236 4.244 — BS — — 70-4-11-1
Coupling shaft yoke
1.790-34 Involute Spline
1.790 2.375 2.188 4.000 — BS 70-4-61-1X 233034 70-4-51-1©
1.790 2.562 2.750 6.650 — BS 5001789 231059 5001781•
5001789 was replaced by 70-4-01789-1X; Flanged yoke w/four holes in flange
1.790 2.562 2.750 6.650 — BS 70-4-01789-1X 231059 5001781•
Flanged yoke w/four holes in flange
1.790 2.564 2.750 5.530 — BS 70-4-191-1X 231059 70-4-181-1©
Flanged yoke w/eight, 7-73-620 bolts
