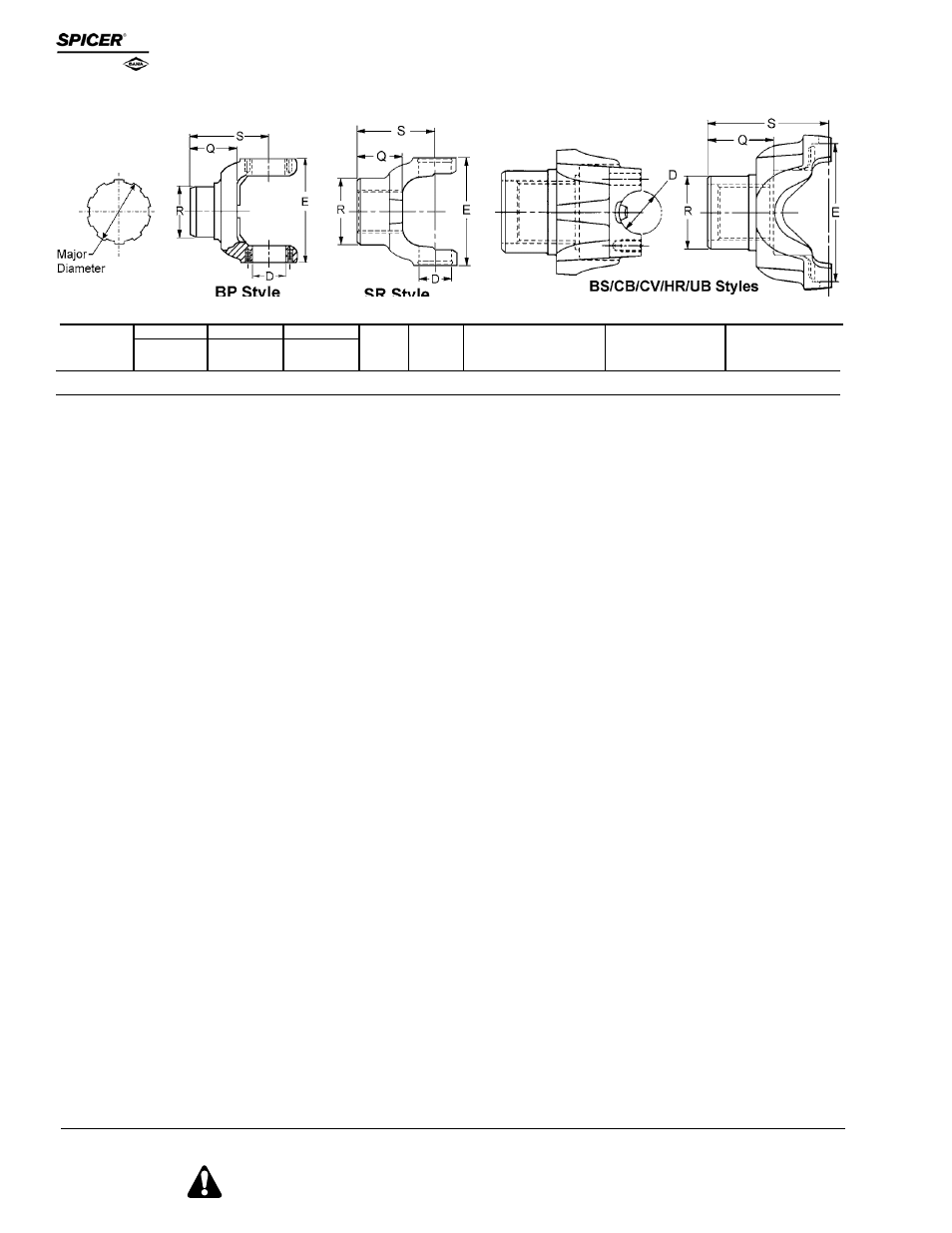

END YOKES with SPLINED HOLES
J300P-4
R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
16
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
1310 SERIES (Continued) SR: E-3.469 OTHERS E-3.219, D-1.062 USE KIT 5-153X,5-785X,5-810X
USES U-BOLT ASSY. 2-94-28X, STRAP ASSY. 2-70-18X
1.183-6 Spline
1.183 1.620 1.500 2.935 — UB — — 2-4-1301
.188 Dia drilled hole thru hub
1.215-18 Involute Spline
1.215 2.120 1.500 2.562 — SR — — 2-4-6301
Hub diameter not ground
1.229-28 Involute Spline
1.229 1.844 1.375 2.938 .120 BS — — 2-4-3741-1
1.229 1.844 1.375 2.938 .120 BS 2-4-7371-1X• 231935-1 2-4-6161-1
Zinc plated slinger
1.250-10 Spline
1.250 1.750 2.000 3.375 — CV 2-4-4021X 230881 2-4-4011•
1.250 1.750 2.000 3.625 — UB — — 2-4-1831
1.250 1.875 1.500 2.938 — BS 2-4-1991-1X• 30798 2-4-1981-1©
1.250 1.875 1.500 2.938 — UB 2-4-2611X 230421 2-4-2601•
1.250 1.875 1.500 2.938 — BS 2-4-2611-1X 230421 2-4-2601-1•
1.250 2.000 1.750 3.281 — UB 2-4-4471X• 500166-24 2-4-2901
2-4-2901 was replaced by 2-4-2901-1
1.250 2.000 1.750 3.281 — BS — — 2-4-2901-1
1.250 2.000 1.750 3.625 — UB — — 2-4-7731•
1.268-14 Involute Spline
1.268 2.000 2.500 3.688 — SR — — 2-4-5411
.375 Dia.set screw @ 6 OR 12, hub diameter not ground.
1.268 2.120 1.500 2.562 — SR — — 2-4-1741
1.268 2.125 1.953 3.453 — BS — — 2-4-7141-1
1.274-19 Involute Spline
1.274 2.000 1.344 2.500 — SR — — 2-4-6341
Hub diameter not ground
1.276-29 Involute Spline
1.276 1.875 1.500 2.531 — UB 2-4-3781X 30798 2-4-3771•
1.276 1.875 1.500 2.938 — UB 2-4-3801X 34592 2-4-3791
2-4-3791 was replaced by 2-4-3801X
1.276 1.875 1.500 2.938 — BS 2-4-3801-1X 34592 2-4-3791-1•
1.276 1.875 1.500 2.996 — BS 2-4-8391-1X 34592 2-4-8331-1•
1.326-30 Involute Spline
1.326 1.750 2.000 3.375 — CV 2-4-5421X• 230881 2-4-4801•
