Spicer Driveline Components Catalog - End Yokes - Manual (Page 16)

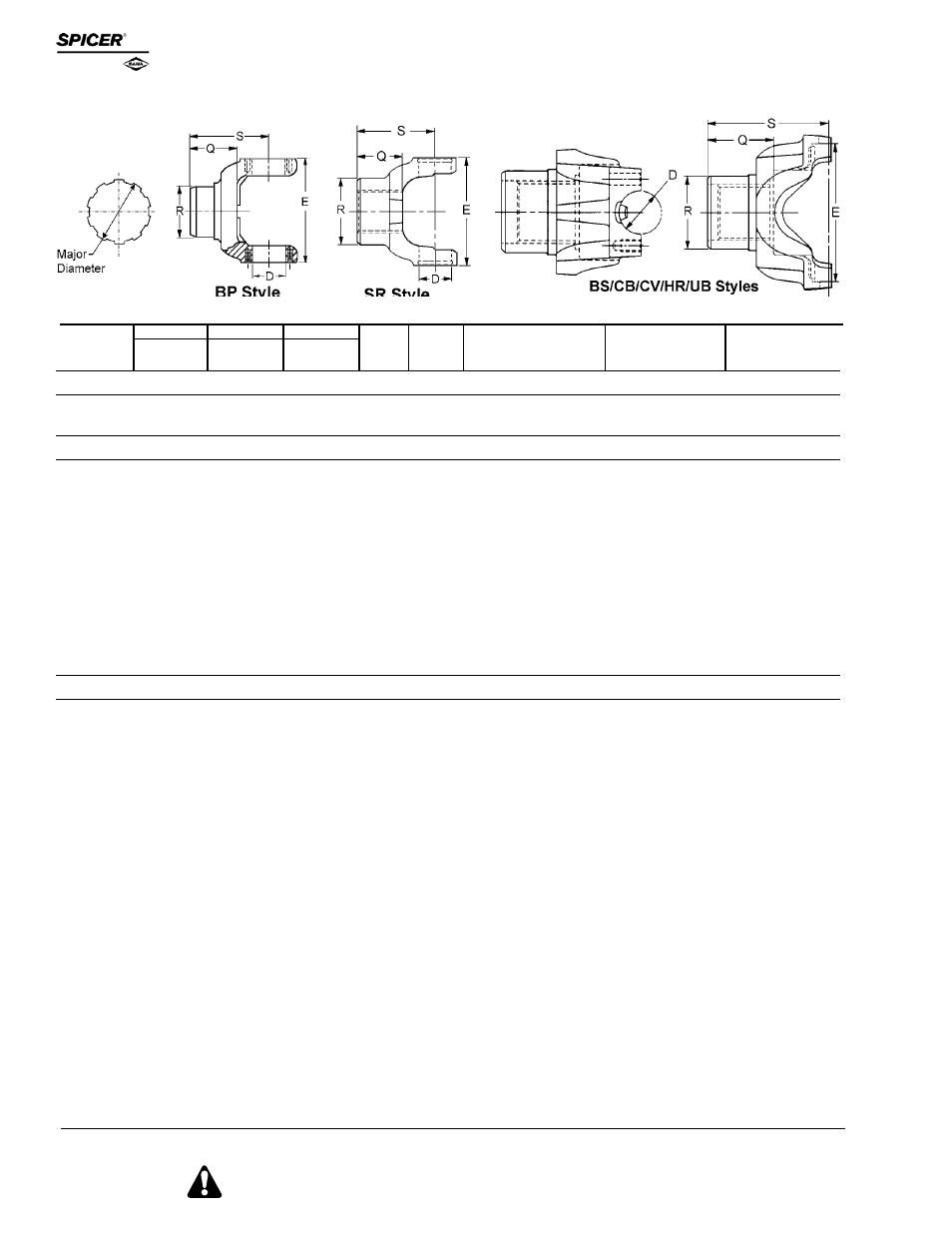

END YOKES with SPLINED HOLES
J300P-4
R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
14
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
1100 SERIES E-2.656 D-.938 USE KIT 5-101X OR 5-111X
.878-13 Involute Spline
.878 2.000 1.250 2.250 — SR — — 1-4-1201
1210 SERIES E-2.438 D-1.062 USE KIT 5-443X
USES U-BOLT ASSY. 2-94-28X, STRAP ASSY. 2-70-18X
.984-22 Involute Spline
.984 1.547 1.297 3.305 — BS 2-4-7221-1X• 42735 2-4-7111-1•
1.031-23 Involute Spline
1.031 1.562 1.500 3.063 — BS 2-4-5921-1X 41498 2-4-5911-1•
1.146-26 Involute Spline
1.146 1.594 1.594 2.938 — BS 2-4-6731-1X• 231596 2-4-6721-1•
Coupling shaft yoke
1.146 1.625 1.156 2.750 — BS — — 2-4-5901-1
1.146 1.625 1.156 3.375 — CV — — 2-4-5891•
1.146 1.750 1.375 2.938 — BS — — 2-4-6191-1•
Hub diameter not ground
1310 SERIES SR: E-3.469 OTHERS E-3.219, D-1.062 USE KIT 5-153X,5-785X,5-810X
USES U-BOLT ASSY. 2-94-28X, STRAP ASSY. 2-70-18X
.878-13 Involute Spline
.878 2.000 1.567 2.562 — SR — — 2-4-3331
.375 Diameter set screw; Hub diameter not ground
.970-29 Involute Spline
.970 1.500 1.500 3.000 .299 BS — — 2-4-8031-1•
.982-10 Spline
.982 1.562 1.938 3.656 — UB — — 2-4-1721
2-4-1721 was replaced by 2-4-1721-1
.982 1.562 1.938 3.656 — BS — — 2-4-1721-1
1.010-15 Involute Spline
1.010 1.594 2.656 3.562 — SR — — 2-4-4931
1.010 2.120 1.240 2.312 — SR — — 2-4-4921
Hub diameter not ground
1.010 2.120 1.470 2.500 — SR — — 2-4-8241
.375 Diameter set screw; Hub diameter not ground
1.026-23 Involute Spline
1.026 1.552 1.500 3.000 — BS 2-4-6131-1X 41498 2-4-6121-1•
1.070-16 Involute Spline
1.070 1.625 1.750 3.219 .201 BS 2-4-6981-1X• — 2-4-6661-1©
Assembly includes Balance Disc #231901
