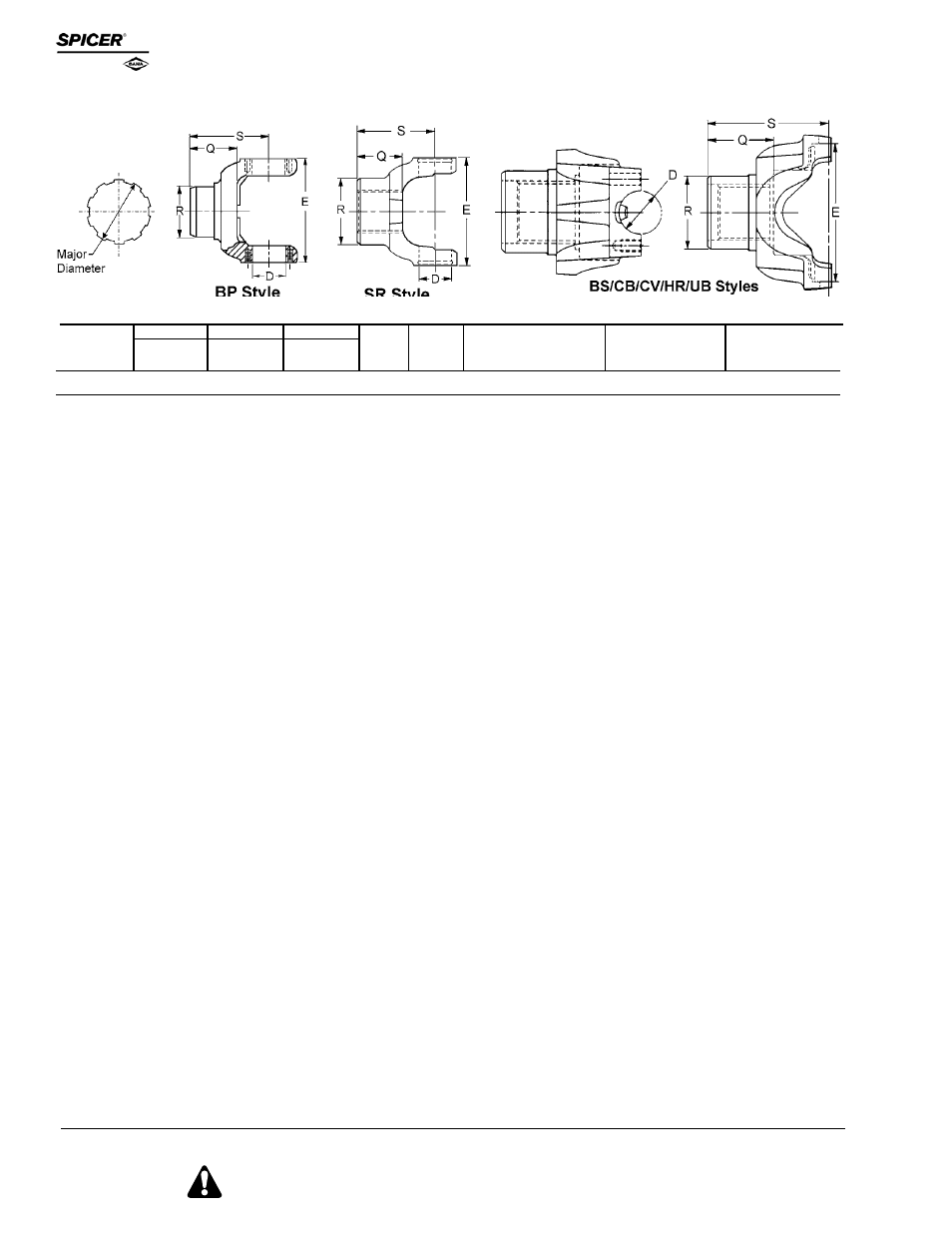

END YOKES with SPLINED HOLES
J300P-4
R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
54
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
1810 SERIES (Continued) E-7.547 (7.643 FOR HR STYLE) D-1.938 USE KIT 5-281X, 5-676X
FOR HR STYLE USE STRAP KIT 6.5-70-18X
2.374-46 Spline (Continued)
2.374 3.750 2.406 5.219 — BP 6.5-4-4011X — 6.5-4-3441
Assy includes electronic speedometer gear #231528
2.374 3.750 2.406 5.219 — HR 6.5-4-4001-1X — 6.5-4-3441-1
Assy includes mechanical speedometer drive gear #231527
2.374 3.750 2.406 5.219 — HR 6.5-4-4011-1X — 6.5-4-3441-1
Assy includes electronic speedometer gear #231528
2.390-46 Involute Spline
2.390 2.875 2.750 5.500 — HR — — 6.5-4-3591-1
Coupling shaft yoke
2.390 3.250 2.312 5.156 .140 BP 6.5-4-3731X 231803 6.5-4-3721©
2.390 3.250 2.312 5.156 .140 BP 6.5-4-04768X 5003552 6.5-4-3721©
2.390 3.250 2.312 5.156 .140 HR 5003556 5003552 6.5-4-3721-1
5003556 was replaced by 6.5-4-03556-1X
2.390 3.250 2.312 5.156 .140 HR 6.5-4-5111-1X 5015354 6.5-4-3721-1
2.390 3.250 2.312 5.156 .140 HR 6.5-4-03556-1X 5003552 6.5-4-3721-1
2.390 3.250 2.312 5.156 .140 HR 6.5-4-3731-1X 231803 6.5-4-3721-1
2.390 3.250 2.312 5.156 .140 HR 6.5-4-4721-1X 232747 6.5-4-3721-1
2.390 3.250 2.312 5.156 .140 HR 6.5-4-4511-1X 211831X 6.5-4-3721-1
2.390 3.375 3.188 6.000 .580 BP 6.5-4-3921X 231013 6.5-4-3911
2.390 3.375 3.188 6.000 .580 BP 6.5-4-4611X 232610 6.5-4-3911
2.390 3.375 3.188 6.000 .580 HR 6.5-4-4611-1X 232610 6.5-4-3911-1
2.390 3.375 3.188 6.000 .580 HR 6.5-4-3921-1X 231013 6.5-4-3911-1
2.390 3.500 3.375 6.156 — BP — — 6.5-4-2541
2.390 3.500 3.375 6.156 — HR — — 6.5-4-2541-1
2.422-18 Involute Spline
2.422 3.375 3.000 5.812 .380 BP 6.5-4-2361X 231013 6.5-4-1991
2.422 3.375 3.000 5.812 .380 HR 6.5-4-2361-1X 231013 6.5-4-1991-1•
2.450-47 Involute Spline
2.450 3.625 2.500 5.312 .750 BP — — 6.5-4-2921
2.500-10 Spline
2.500 3.250 3.000 5.781 — BP 6.5-4-3711X 231179 6.5-4-2561
2.500 3.250 3.000 5.781 — HR 6.5-4-3711-1X 231179 6.5-4-2561-1
2.500 3.500 2.406 5.406 — BP 6.5-4-4291X 232042-11 6.5-4-2101•
2.500 3.500 2.406 5.406 — HR 6.5-4-4261-1X• 232042-10 6.5-4-2101-1
2.500 3.500 2.406 5.406 — HR 6.5-4-4291-1X 232042-11 6.5-4-2101-1
2.500 3.500 3.000 5.781 — BP — — 6.5-4-2151•
2.500 3.750 3.000 5.875 — BP 6.5-4-3551X 231616 6.5-4-3451•
Hub machined for speedometer gear
2.500 3.750 3.000 5.875 — HR 6.5-4-3551-1X 231616 6.5-4-3451-1
Hub machined for speedometer gear
