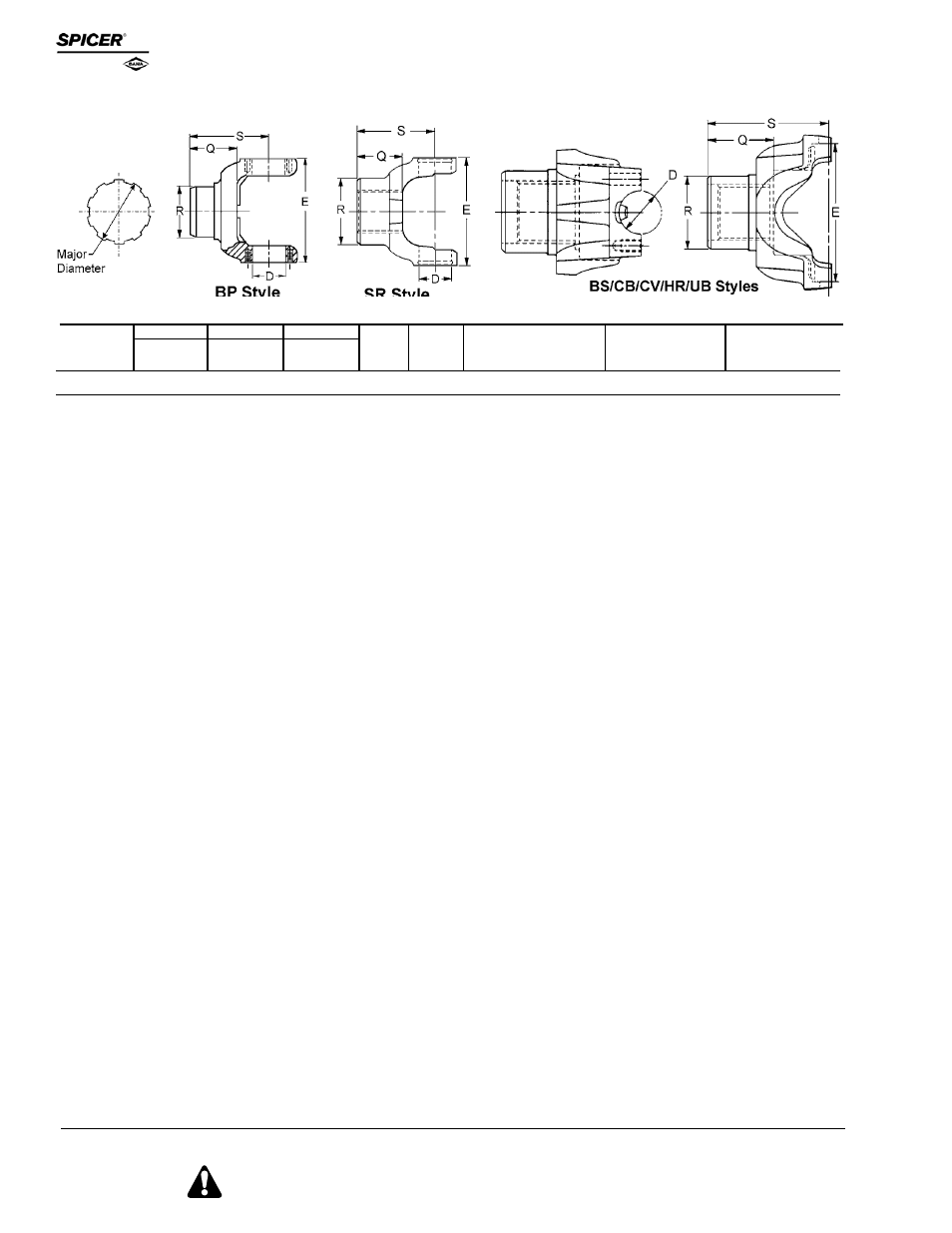

END YOKES with SPLINED HOLES
J300P-4
R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
48
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
1760 SERIES (Continued) E-7.000 (7.094 FOR HR STYLE) D-1.938 USE KIT 5-407X, 5-677X
FOR HR STYLE USE STRAP KIT 6.5-70-18X
2.114-32 Involute Spline
2.114 3.000 2.250 5.000 .424 HR 6.3-4-1521-1X 232200 6.3-4-1511-1
2.143-41 Involute Spline
2.143 2.938 2.500 5.250 — BP 6.3-4-1071X 231028 6.3-4-1061•
2.143 2.938 2.500 5.250 — HR 6.3-4-1071-1X• 231028 6.3-4-1061-1§
2.143 2.938 2.500 5.250 — HR 6.3-4-1631-1X• 232604 6.3-4-1061-1§
2.143 2.938 3.000 5.812 — BP 6.3-4-1641X• 232609 6.3-4-1171•
2.149-16 Spline
2.149 2.938 2.500 5.250 — BP 6.3-4-231X 231022 6.3-4-121•
2.149 2.938 3.000 5.812 .380 BP 6.3-4-251X 231028 6.3-4-141•
2.149 2.938 3.000 5.812 .380 HR 6.3-4-251-1X• 231028 6.3-4-141-1©
2.170-34 Involute Spline
2.170 3.543 1.889 4.598 — HR — — 5007597©
2.178-43 Involute Spline
2.178 3.539 2.050 5.500 .157 HR — — 6.3-4-1591-1•
2.225-6 Spline
2.225 3.000 3.250 6.000 — BP 6.3-4-171X 829W 6.3-4-51©
2.225 3.000 3.250 6.000 — HR 6.3-4-171-1X 829-W 6.3-4-51-1©
2.250-10 Spline
2.250 3.000 3.000 5.844 .250 BP 6.3-4-731X 230921 6.3-4-91
6.3-4-91 will be replaced by 6.3-4-731X when supply is exhausted
2.250 3.000 3.000 5.844 .250 HR 6.3-4-731-1X 230921 6.3-4-91-1©
2.250 3.750 3.000 5.625 — HR 6.3-4-1101-1X• 231616 6.3-4-1091-1•
2.274-44 Involute Spline
2.274 2.938 2.328 5.094 — BP 6.3-4-1621X• 232604 6.3-4-1321©
2.274 2.938 2.328 5.094 — BP 6.3-4-1331X 231022 6.3-4-1321©
2.274 2.938 2.328 5.094 — HR 6.3-4-1621-1X 232604 6.3-4-1321-1•
2.274 2.938 2.328 5.094 — HR 6.3-4-1331-1X 231022 6.3-4-1321-1•
2.274 2.938 2.500 5.250 — BP 6.3-4-331X 231022 6.3-4-1421
2.274 2.938 2.500 5.250 — BP 6.3-4-1481X 232168 6.3-4-1421
2.274 2.938 2.500 5.250 — HR 6.3-4-1481-1X 232168 6.3-4-1421-1
2.274 2.938 2.500 5.250 — HR 6.3-4-331-1X 231022 6.3-4-1421-1
2.274 3.000 2.500 5.250 .236 BP 6.3-4-5221X 232511 6.3-4-1411
2.274 3.000 2.500 5.250 .236 HR 6.3-4-5221-1X 232511 6.3-4-1411-1•
2.343-45 Involute Spline
2.343 3.750 3.000 5.656 — HR 6.3-4-901-1X• 231616 6.3-4-841-1•
