J300P-4

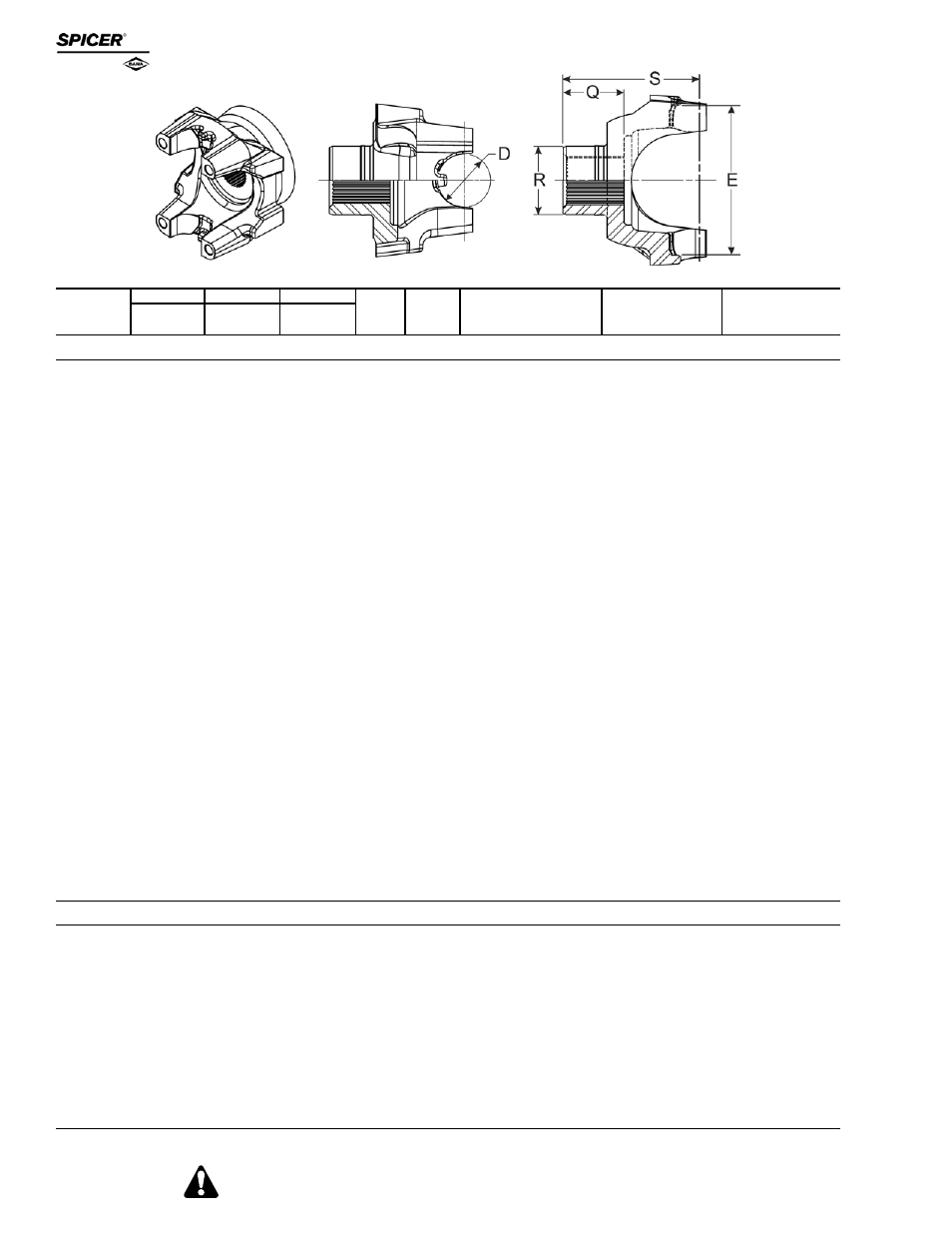

END YOKES with SPLINED HOLES
R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger/plug) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
4
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
BS/CV/HR/UB Style
SPL90 SERIES (Continued) E-4.957, D-1.625 USE KIT SPL100-1X
USE STRAP ASSY. 90-70-28X
2.024-39 Involute Spline
2.024 2.626 2.245 4.160 — BS 90-4-05379-1X 232167 90-4-621-1©
2.024 2.626 2.245 4.160 — BS 90-4-631-1X 232039 90-4-621-1©
2.024 2.626 2.245 4.160 — BS 5005379 232167 90-4-621-1©
5005379 was replaced by 90-4-05379-1X
2.024 3.000 2.281 4.750 .250 BS 100-4-1431-1X 5006975 90-4-241-1
2.024 3.000 2.281 4.750 .250 BS 90-4-251-1X 232511 90-4-241-1
2.114-32 Involute Spline
2.114 3.000 2.250 4.375 .424 BS 90-4-591-1X 232200 90-4-581-1•
2.141-41 Involute Spline
2.141 2.938 2.500 4.562 — BS 90-4-691-1X 232604 90-4-471-1©
90-4-691-1X was replaced by 100-4-1061-1X
2.178-41 Involute Spline
2.178 3.543 1.882 4.570 — BS 5001046• 5001045 5001036©
2.178-43 Involute Spline
2.178 3.547 2.031 4.625 .157 BS — — 90-4-791-1
2.250-10 Spline
2.250 3.500 3.000 5.219 — HR 90-4-151-1X 231616 90-4-401-1
2.250 3.750 3.000 5.219 — BS 90-4-171-1X 231616 90-4-161-1•
2.281-44 Involute Spline
2.281 2.938 2.344 4.469 — BS 100-4-1381-1X 232604 90-4-281-1•
2.364-36 Involute Spline
2.364 3.000 2.688 4.812 — BS 90-4-611-1X 232200 90-4-601-1•
2.374-46 Involute Spline
2.374 3.250 2.875 5.188 — BS 90-4-361-1X 231615 90-4-351-1
2.390-46 Involute Spline
2.390 3.250 2.312 4.641 — BS 90-4-341-1X 231803 90-4-331-1•
2.390-47 Involute Spline
2.390 3.344 1.781 4.250 — BS 90-4-531-1X• 232195 90-4-521-1©
SPL100 SERIES E-4.958 D-1.626 USE KIT SPL100-1X
USE BEARING RETAINER NO. 90-70-28X
1.759-28 Involute Spline
1.759 3.250 1.950 4.331 .669 HR — — 100-4-09671
1.759 3.250 1.950 4.331 .669 HR — — 5009671
5009671 was replaced by 100-4-09671
1.790-34 Involute Spline
1.790 2.562 2.750 5.700 — BS 100-4-901-1X 231059 100-4-891-1
Flanged end yoke.
1.790 2.562 2.750 5.970 — HR 100-4-921-1X§ 231059(PLUG) 100-4-911-1©
OEM only ; Flanged end yoke.
