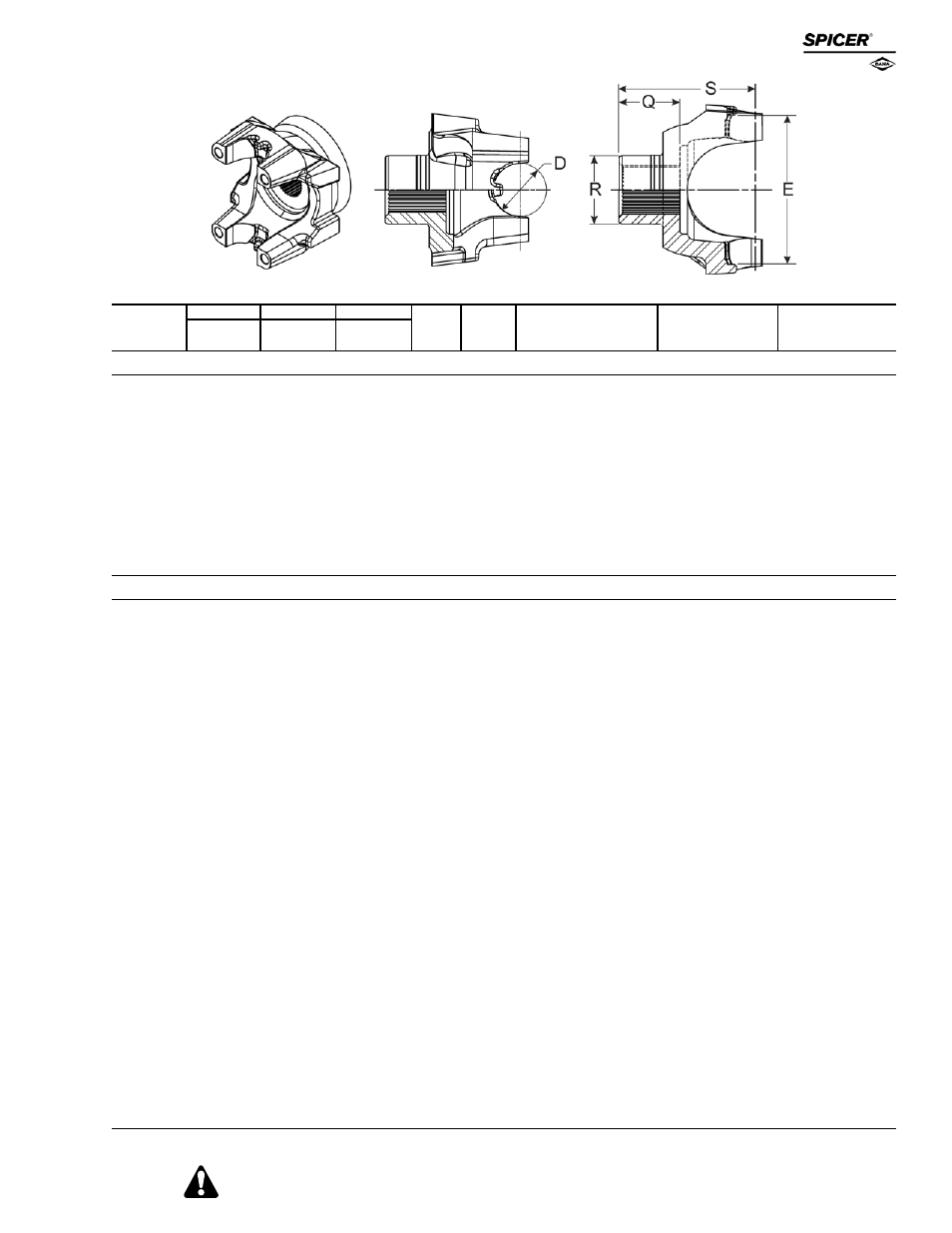

BS/CV/HR/UB Style
R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
J300P-4
END YOKES with SPLINED HOLES
3
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
SPL70 SERIES (Continued) E-4.964, D-1.375 USE KIT SPL70X, SPL70-1X, 5-808X, 5-809X
USE STRAP ASSY. 3-70-38X
2.024-39 Involute Spline
2.024 3.000 1.844 3.878 .250 BS 5006977 5006975 5001782©
5006977 was replaced by 70-4-06977X
2.024 3.000 1.844 3.878 .250 BS 70-4-06977X 5006975 5001782©
2.024 3.000 1.847 3.875 .250 BS 70-4-03330-1X 5006975 5003329©
2.024 3.000 1.847 3.875 .250 BS 5003330 5006975 5003329©
5003330 was replaced by 70-4-03330-1X
2.024 3.000 2.281 4.281 .250 BS 70-4-111-1X 232511 70-4-101-1©
2.143-41 Involute Spline
2.143 2.938 2.500 4.555 — BS 70-4-151-1X 232604 70-4-141-1©
SPL90 SERIES E-4.957, D-1.625 USE KIT SPL100-1X
USE STRAP ASSY. 90-70-28X
1.750-10 Spline
1.750 2.500 1.938 4.125 — BS — — 90-4-371-1
1.774-34 Involute Spline
1.774 2.500 2.250 4.110 — BS 90-4-761-1X 231206 90-4-751-1•
1.790-34 Involute Spline
1.790 2.375 2.188 5.625 — BS 90-4-551-1X 232198 90-4-541-1•
1.790 2.190 2.250 4.062 .500 BS — — 90-4-11-1
Coupling shaft yoke
1.790 2.562 2.750 5.609 — BS 90-4-191-1X 231059 90-4-181-1
90-4-181-1 was replaced by 90-4-191-1X
1.790 2.562 2.750 5.625 — BS 90-4-501-1X 231059 90-4-461-1©
1.962-10 Spline
1.962 2.625 2.250 5.094 — BS 90-4-211-1X• 230909 90-4-201-1©
1.962 2.750 2.781 4.984 — BS — — 90-4-381-1
1.998-38 Involute Spline
1.998 2.750 2.125 4.000 — BS — — 90-4-71-1
1.998 2.750 2.125 4.250 — BS — — 90-4-391-1
1.998 2.750 2.125 7.562 — BS — — 90-4-111-1
Flanged end yoke.
1.998 3.000 2.125 4.250 — BS 90-4-571-1X 232200 90-4-561-1•
2.000-10 Spline
2.000 2.750 3.000 4.969 — BS — — 90-4-21-1
2.024-39 Spline
2.024 3.000 2.312 4.625 — BS 90-4-321-1X 231359 90-4-311-1
