END YOKES with SPLINED HOLES
J300P-4

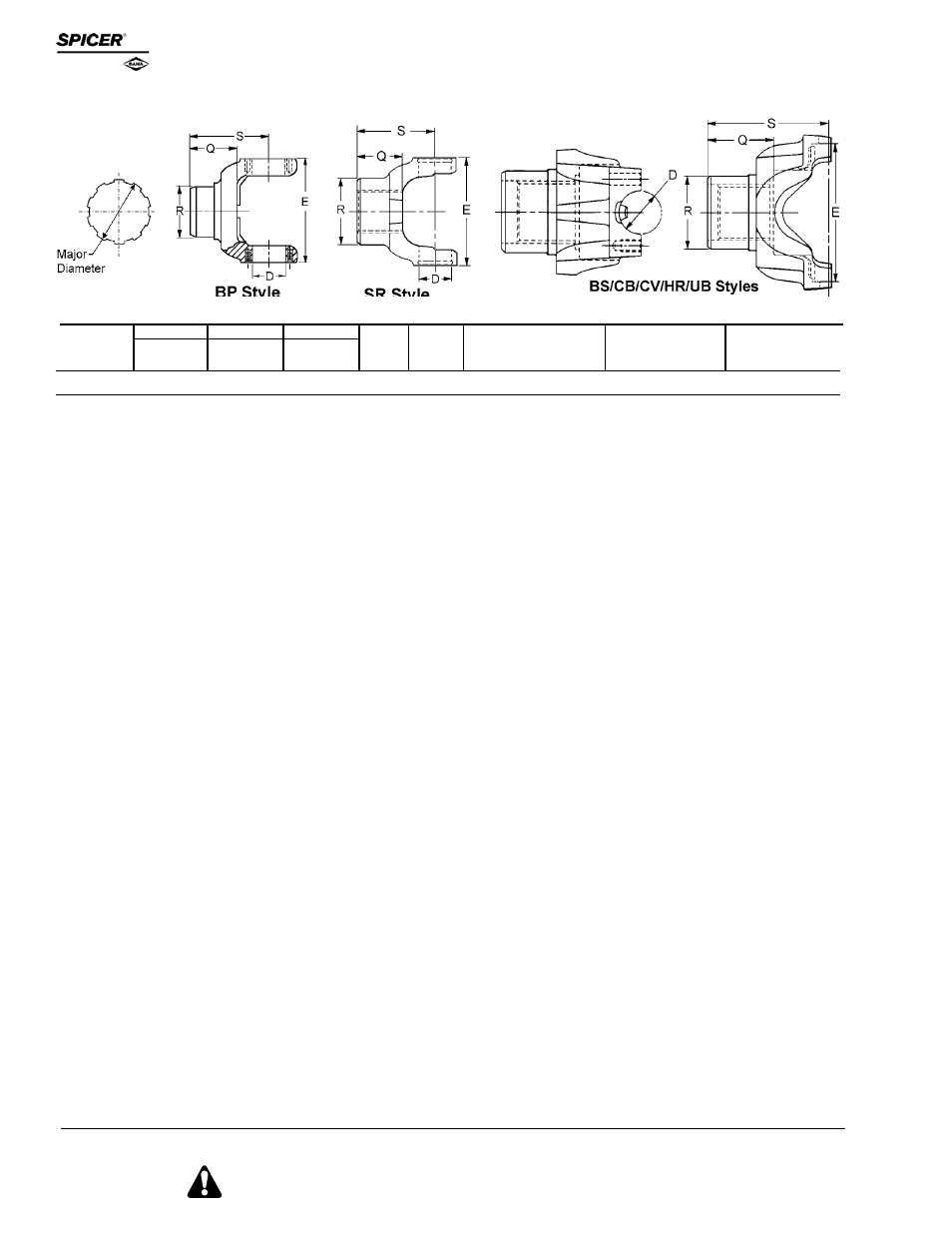

R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
34
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
1610 SERIES (Continued) E-5.312 D-1.875 USE KIT 5-279X, 5-674X
FOR HR STYLE USE STRAP KIT 5-70-28X
2.024-39 Involute Spline (Continued)
2.024 3.000 2.281 6.000 .250 BP 5-4-9241X• 232511 5-4-8261
High angle yoke
2.024 3.000 2.281 6.000 .250 HR 5-4-9241-1X 232511 5-4-8261-1
High angle yoke
2.024 3.000 2.500 5.594 .280 HR — — 5-4-9351-1
2.032-10 Spline
2.032 2.750 2.000 4.500 .120 BP — — 5-4-4401
2.114-32 Involute Spline
2.114 3.000 2.234 5.375 .424 HR 5-4-8611-1X 232200 5-4-8601-1
2.114 3.000 2.234 6.000 .424 HR 5-4-8691-1X 232200 5-4-8681-1
High angle yoke
2.114 3.000 2.250 5.375 .424 BP 5-4-7221X 231750 5-4-5751
2.114 3.000 2.250 5.375 .424 BP — — 5-4-5751
2.114 3.000 2.250 6.000 .424 BP 5-4-7181X 231750 5-4-5731
2.143-41 Involute Spline
2.143 2.938 2.500 5.250 — HR 5-4-7311-1X 231028 5-4-7271-1•
2.143 2.938 2.500 5.250 — HR 5-4-9111-1X 232604 5-4-7271-1•
2.143 2.938 2.500 6.000 — BP 5-4-9121X• 232604 5-4-7561•
2.143 2.938 2.500 6.000 — BP 5-4-7571X 231028 5-4-7561•
2.143 2.938 2.500 6.000 — HR 5-4-7571-1X• 231028 5-4-7561-1•
2.143 2.938 2.500 6.000 — HR 5-4-9121-1X• 232604 5-4-7561-1•
2.143 2.938 3.000 6.500 .380 HR 5-4-9131-1X• 232609 5-4-7551-1•
2.143 2.938 3.000 6.500 .380 HR — — 5-4-7551-1•
2.143 2.939 2.500 5.660 — HR 5-4-9451-1X 232604 5-4-9421-1©
2.149-16 Spline
2.149 2.938 3.000 5.660 .380 HR 5-4-6591-1X 231028 5-4-6581-1©
2.149 2.938 3.000 6.250 .380 BP 5-4-5161X 231028 5-4-5031•
High angle yoke
2.149 2.938 3.000 6.250 .380 HR 5-4-5161-1X 231028 5-4-5031-1•
2.149 2.938 3.000 6.500 .380 BP 5-4-8711X 232367 5-4-5501•
High angle yoke
2.149 2.938 3.000 6.500 .380 BP 5-4-5511X 231028 5-4-5501•
High angle yoke
2.170-34 Involute Spline
2.170 3.543 1.889 4.441 — HR — — 5008270©
OEM only
2.178-43 Involute Spline
2.178 3.531 2.031 5.406 .157 BP — — 5-4-9141
2.178 3.531 2.031 5.406 .157 HR — — 5-4-9141-1
2.178 3.547 2.047 5.219 .157 HR — — 5-4-8461-1•
