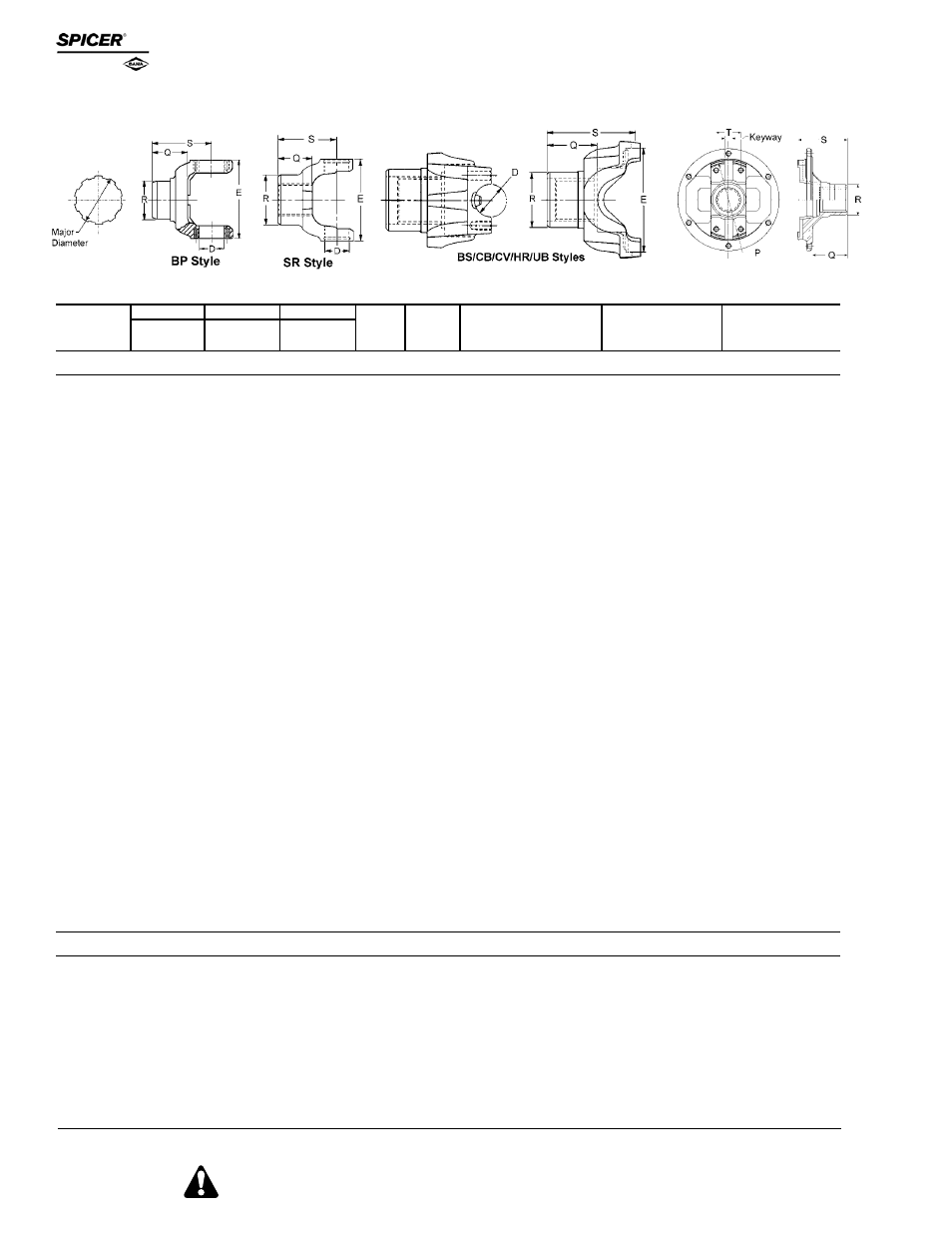

END YOKES with SPLINED HOLES
J300P-4
R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger/plug) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
56
Important: See Safety Information in General Information Section (J300P-GI)
WB Style
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
1810 SERIES (Continued) E-7.547 (7.643 FOR HR STYLE) D-1.938 USE KIT 5-281X, 5-676X
FOR HR STYLE USE STRAP KIT 6.5-70-18X
2.794-54 Involute Spline
2.794 — 2.750 5.625 — BP — — 6.5-4-4631
Hub diameter not ground
2.794 — 2.750 5.625 — HR — — 6.5-4-4631-1
Hub diameter not ground
2.794 3.625 2.315 5.070 — HR 5005400 232746 5005399©
5005400 was replaced by 6.5-4-05400-1X
2.794 3.625 2.315 5.070 — HR 6.5-4-05400-1X 232746 5005399©
2.795-55 Involute Spline
2.795 4.719 2.047 5.000 .150 BP — — 6.5-4-4521•
OEM only
2.795 4.719 2.047 5.000 .150 HR — — 6.5-4-4521-1•
OEM only
2.798-21 Involute Spline
2.798 3.531 2.094 4.844 .080 HR — — 6.5-4-3941-1•
2.922-22 Involute Spline
2.922 3.750 2.650 5.840 .400 HR — — 6.5-4-4491-1
Counterbore at hub end.
2.922 3.875 2.625 5.375 — BP — — 6.5-4-3081•
2.922 4.000 3.391 6.156 .310 BP 6.5-4-3961X© 230902 6.5-4-3951
Counterbore at hub end.
3.003-23 Involute Spline
3.003 4.000 3.000 5.750 .310 BP 6.5-4-4401X 232193 6.5-4-2621
3.003 4.000 3.000 5.750 .310 HR 6.5-4-4401-1X 232193 6.5-4-2621-1©
3.045-48 Involute Spline
3.045 4.250 1.955 4.882 — HR — — 5005680
5005680 was replaced by 6.5-4-05680-1
3.045 4.250 1.955 4.882 — HR — — 6.5-4-05680-1
3.100-60 Involute Spline
3.100 3.900 2.500 5.310 — BP — — 6.5-4-4341
3.100 4.000 2.500 5.312 — BP — — 6.5-4-2681
1880 SERIES E-8.094 D-2.188 USE KIT 5-308X
2.625-20 Involute Spline
2.625 4.500 3.910 7.470 1.160 BP — — 8-4-791•
2.794-54 Involute Spline
2.794 3.625 2.315 5.250 .120 BP 8-4-1351X 232746 8-4-1341©
3.582-59 Involute Spline
3.582 4.725 4.406 8.000 — BP 8-4-1381X• 233038 8-4-1321©
3.582 4.725 4.411 8.000 — BP 5002688• 233038 5002687©
