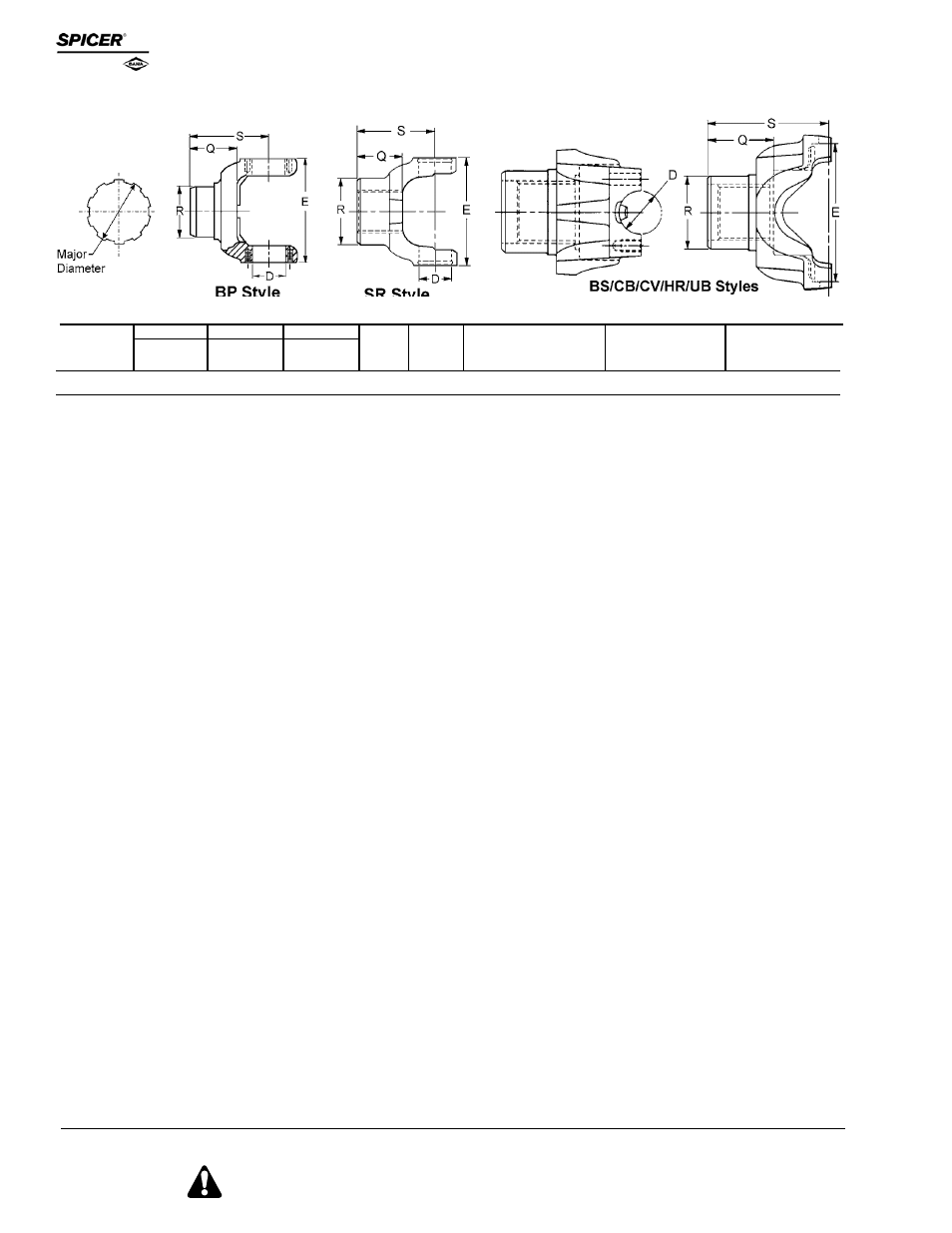

END YOKES with SPLINED HOLES
J300P-4
R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
42
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
1710 SERIES (Continued) E-6.094 (6.190 FOR HR STYLE) D-1.938 USE KIT 5-280X, & 5-675X
FOR HR STYLE USE STRAP KIT 6.5-70-18X
2.225-6 Spline
2.225 2.875 3.250 5.312 — BP 6-4-2601X• 98-1361 6-4-2331•
2.225 3.000 3.250 5.312 — BP 6-4-3041X 829-W 6-4-3031
2.225 3.000 3.250 5.312 — BP 6-4-3461X 330499 6-4-3031
2.225 3.000 3.250 5.438 — HR 6-4-3041-1X 829-W 6-4-3031-1•
2.250-10 Spline
2.250 3.000 2.875 5.250 — BP — — 6-4-2511
2.250 3.000 3.000 5.250 — BP — — 6-4-3871•
2.250 3.000 3.000 6.062 .250 BP 6-4-4411X 230921 6-4-1991
2.250 3.000 3.000 6.062 .250 HR 6-4-4411-1X• 230921 6-4-1991-1•
2.250 3.000 3.000 7.188 .250 BP 6-4-6891X• 230921 6-4-4121•
High angle yoke
2.250 3.125 2.250 5.250 — BP — — 6-4-2441•
2.250 3.250 2.250 5.250 — BP — — 6-4-1971
2.250 3.250 3.000 5.250 .250 BP 6-4-4681X 230746 6-4-2501•
2.250 3.250 3.000 5.250 .250 HR — — 6-4-2501-1
2.250 3.312 2.250 5.297 — HR 6-4-8281-1X 232042-6 6-4-8271-1•
2.250 3.500 3.000 5.250 — BP 6-4-6771X 230674 6-4-2141
2.250 3.500 3.000 5.250 — HR 6-4-6901-1X 231616 6-4-6861-1•
2.250 3.750 3.000 5.250 — HR 6-4-7381-1X 231616 6-4-7371-1
2.260-6 Spline
2.260 3.250 2.250 5.300 — HR 6-4-8291-1X• 232042-6 6-4-3501-1©
2.274-44 Involute Spline
2.274 2.938 2.359 5.031 — BP 6-4-9161X• 232604 6-4-7961•
2.274 2.938 2.359 5.031 — BP 6-4-7971X§ 231022 6-4-7961•
2.274 2.938 2.359 5.031 — HR 6-4-9161-1X 232604 6-4-7961-1
2.274 2.938 2.359 5.031 — HR 6-4-7971-1X 231022 6-4-7961-1
2.274 2.938 2.500 5.188 — BP 6-4-6041X 231022 6-4-8461
2.274 2.938 2.500 5.188 — BP 6-4-8551X 232168 6-4-8461
2.274 2.938 2.500 5.188 — HR 6-4-8551-1X 232168 6-4-8461-1
2.274 2.938 2.500 5.188 — HR 6-4-6041-1X 231022 6-4-8461-1
2.274 3.000 2.500 5.190 .236 BP 6-4-8981X• 232511 6-4-8451
2.274 3.000 2.500 5.190 .236 HR 6-4-8981-1X 232511 6-4-8451-1
2.343-45 Involute Spline
2.343 3.750 3.000 5.250 — BP 6-4-7271X• 231616 6-4-7251©
2.343 3.750 3.000 5.250 — HR 6-4-7271-1X 231616 6-4-7251-1•
