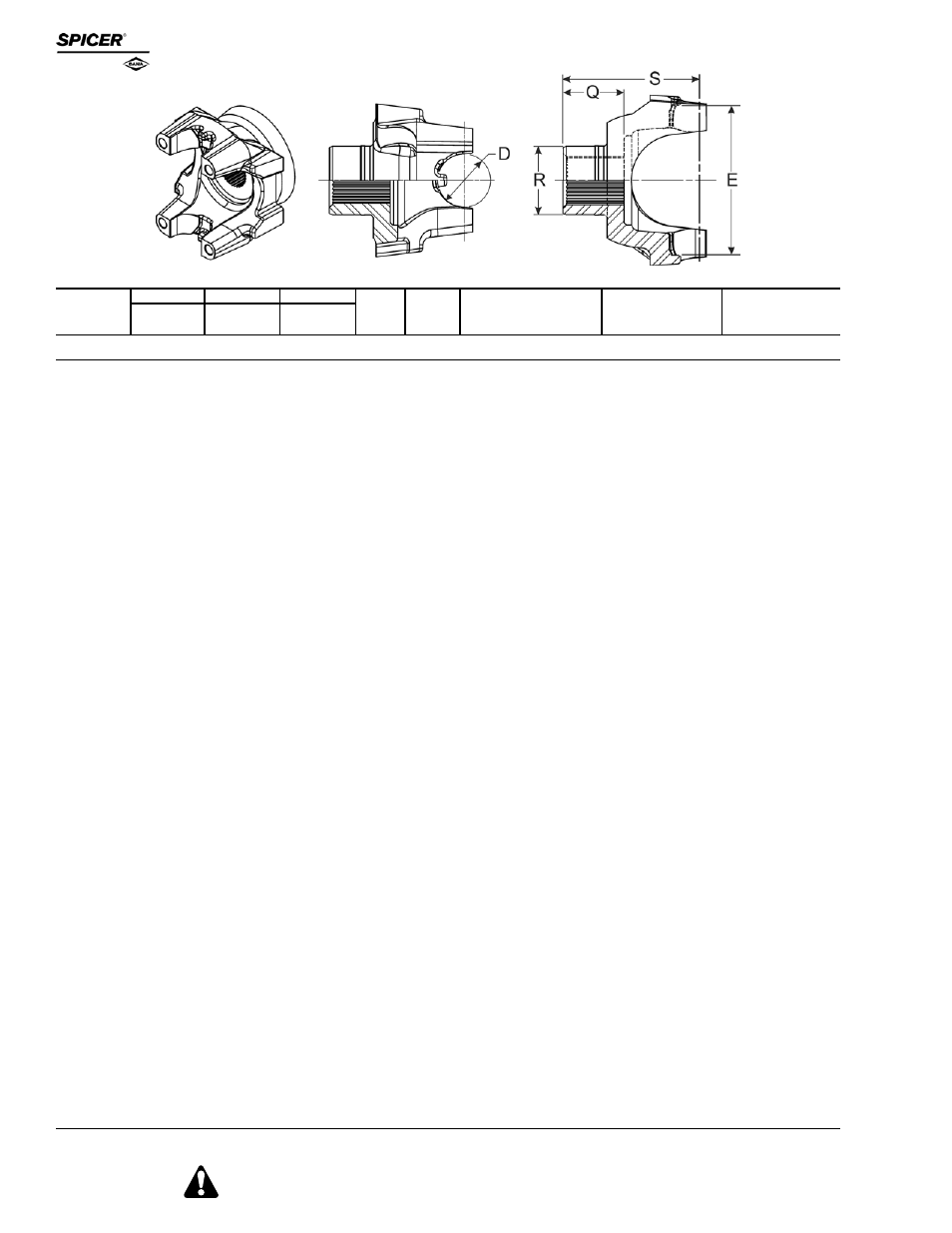

J300P-4
END YOKES with SPLINED HOLES
R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger/plug) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
8
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
BS/CV/HR/UB Style
SPL170 SERIES (Continued) E-6.456 IN. D-2.166 IN. USE KIT SPL170-3X
USE BEARING RETAINER KIT NO. 170-70-18X
2.024-39 Involute Spline
2.024 2.625 2.250 4.938 .250 HR 170-4-161-1X• 232167 170-4-151-1©
2.024 2.625 2.250 6.016 .250 HR 170-4-181-1X§ 232167 170-4-171-1©
High angle yoke
2.024 2.625 2.500 5.266 .250 HR 170-4-221-1X 232514 170-4-211-1•
2.024 2.625 2.500 5.750 .250 HR 170-4-08578-1X 232514 5001768•
2.024 2.625 2.500 5.750 .250 HR 5008578 232514 5001768•
5008578 was replaced by 170-4-08578-1X
2.024 2.625 2.500 6.500 .250 HR 170-4-1651-1X 232514 170-4-1641-1©
2.024 2.625 2.500 6.500 .250 HR 170-4-241-1X 232514 170-4-231-1•
High angle yoke
2.024 3.000 2.250 5.031 .280 HR 170-4-861-1X 232200 170-4-841-1
170-4-841-1 was replaced by 170-4-861-1X
2.024 3.000 2.250 5.031 .280 HR 170-4-851-1X 232199 170-4-841-1
170-4-841-1 was replaced by 170-4-861-1X
2.024 3.000 2.250 6.250 .306 HR 170-4-811-1X 232200 170-4-801-1•
High angle yoke
2.024 3.000 2.281 5.156 .250 HR 170-4-261-1X 232511 170-4-251-1•
2.024 3.000 2.281 5.540 .250 HR 5008577 232511 5001766•
5008577 was replaced by 170-4-08577-1X
2.024 3.000 2.281 5.540 .250 HR 170-4-08577-1X 232511 5001766•
2.024 3.000 2.281 6.240 .250 HR 170-4-1631-1X 232511 170-4-1621-1©
2.024 3.000 2.281 6.240 .250 HR 170-4-281-1X 232511 170-4-271-1©
High angle yoke
2.024 3.000 2.500 5.280 .280 HR 170-4-1751-1X 231101 170-4-821-1
2.024 3.000 2.500 5.280 .280 HR — — 170-4-821-1
2.024 3.000 2.500 6.500 .280 HR — — 170-4-831-1
High angle yoke
2.114-32 Involute Spline
2.114 3.000 2.250 5.000 .424 HR 170-4-901-1X 232200 170-4-891-1©
2.114 3.000 2.250 6.312 .424 HR 170-4-961-1X 232200 170-4-951-1•
High angle yoke
2.143-41 Involute Spline
2.143 2.938 2.500 5.320 — HR 170-4-361-1X 232604 170-4-351-1©
2.143 2.938 2.500 6.680 — HR 170-4-381-1X 232604 170-4-371-1©
High angle yoke
2.143 2.938 3.000 5.800 .380 HR 170-4-341-1X 232609 170-4-331-1•
2.143 2.938 3.000 7.190 .380 HR 170-4-08448-1X 232168 170-4-1901-1©
131451K = 5008448 yoke assy & nut# 128049; Spicer axles only
2.143 2.938 3.000 7.190 .380 HR 5008448 232168 170-4-1901-1©
5008448 was replaced by 170-4-08448-1X; 131451K = 5008448 yoke assy & nut# 128049; Spicer axles only; High angle yoke
2.143 2.938 3.000 7.190 .380 HR 170-4-321-1X 232609 170-4-311-1©
High angle yoke
