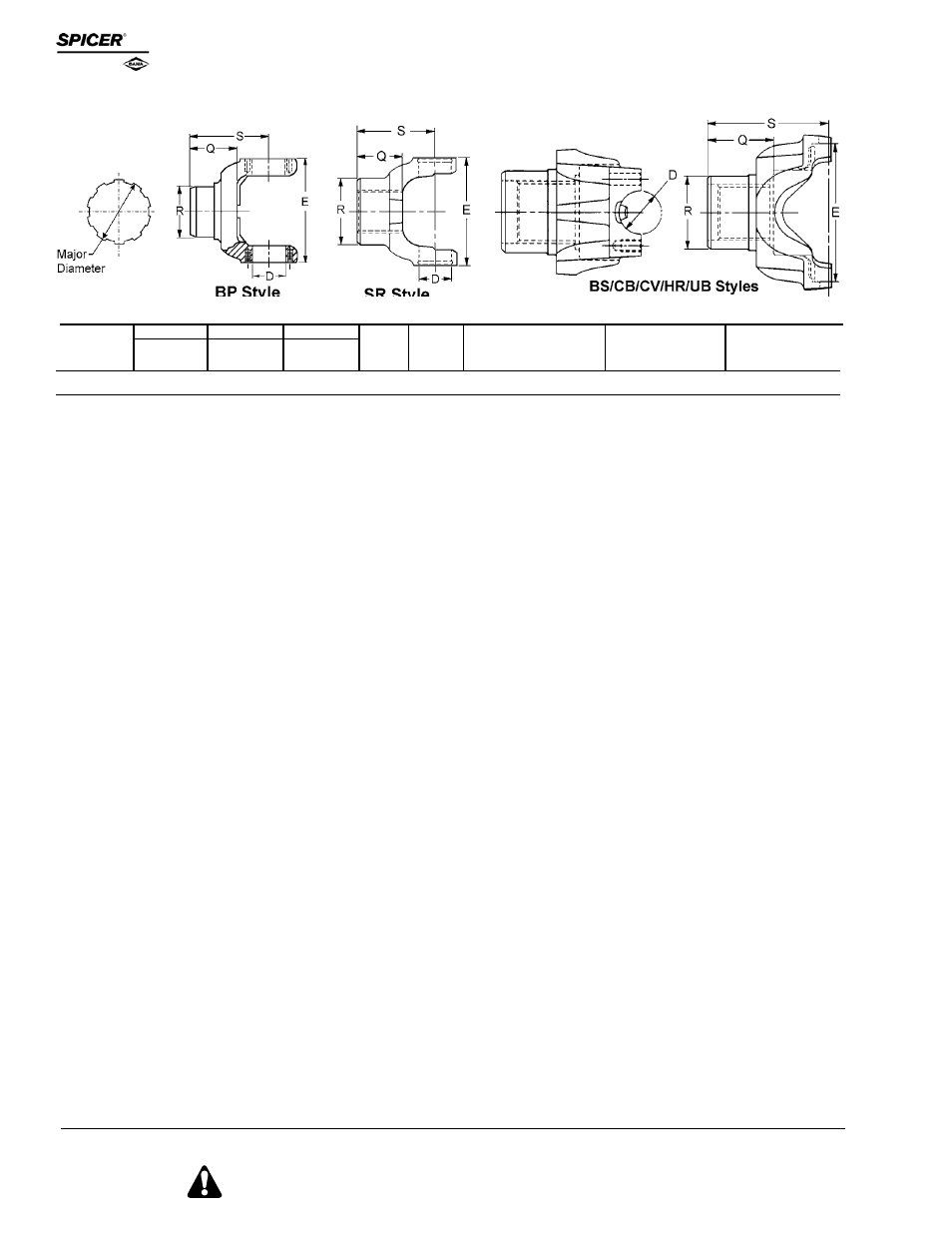

END YOKES with SPLINED HOLES
J300P-4
R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
50
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
1760 SERIES (Continued) E-7.000 (7.094 FOR HR STYLE) D-1.938 USE KIT 5-407X, 5-677X
FOR HR STYLE USE STRAP KIT 6.5-70-18X
2.500-10 Spline
2.500 3.328 2.938 5.812 — HR — — 6.3-4-1081-1
2.500 3.500 2.406 5.406 — BP 6.3-4-1401X 232042-11 6.3-4-151•
2.500 3.500 2.406 5.406 — HR 6.3-4-1401-1X 232042-11 6.3-4-151-1•
2.500 3.750 3.000 6.000 — BP 6.3-4-781X 231616 6.3-4-651
Hub machined for speedometer gear
2.500 3.750 3.000 6.031 — HR 6.3-4-781-1X 231616 6.3-4-651-1
Hub machined for speedometer gear
2.503-19 Involute Spline
2.503 3.344 3.000 5.938 — BP — — 6.3-4-521
2.544-49 Involute Spline
2.544 3.750 3.000 6.031 — BP 6.3-4-771X 231616 6.3-4-811•
Hub machined for speedometer gear
2.544 3.750 3.000 6.031 — HR 6.3-4-771-1X 231616 6.3-4-811-1©
Hub machined for speedometer gear
2.544 3.818 2.125 5.200 .120 BP 131441K 5008437 5008454
5008454 was replaced by 6.3-4-08454X; Attach nut #131095 on Spicer Axle only
2.544 3.818 2.125 5.200 .120 BP 131440K 5008437 5008455
5008455 was replaced by 6.3-4-08455-1X; Attach nut #131095 on Spicer Axle only
2.544 3.818 2.125 5.200 .120 BP 6.3-4-08454X 5008437 6.3-4-1861©
131441K = 5008454 yoke assy & nut# 131095; Spicer axles only
2.544 3.818 2.125 5.200 .120 BP 5008454 5008437 6.3-4-1861©
5008454 was replaced by 6.3-4-08454X; 131441K = 5008454 yoke assy & nut# 131095; Spicer axles only
2.544 3.818 2.125 5.200 .120 HR 6.3-4-08455-1X 5008437 6.3-4-1861-1
131440K = 5008455 yoke assy & nut# 131095; Spicer axles only
2.544 3.818 2.125 5.200 .120 HR 5008455 5008437 6.3-4-1861-1
5008455 was replaced by 6.3-4-08455-1X; 131440K = 5008455 yoke assy & nut# 131095; Spicer axles only
2.544 3.819 2.677 5.750 .240 BP 5008440 5008437 5005581©
5008440 was replaced by 6.3-4-08440-1X
2.544 3.819 2.677 5.750 .240 BP 6.3-4-08440-1X 5008437 5005581©
2.544 3.819 2.677 5.750 .240 HR 5008441 5008437 5005582
5008441 was replaced by 6.3-4-08441-1X; 5005582 was replaced by 6.3-4-05582-1;
131520K = 5008441 yoke assy & nut# 131095; Spicer axles only
2.544 3.819 2.677 5.750 .240 HR 6.3-4-08441-1X 5008437 5005582
5005582 was replaced by 6.3-4-05582-1; 131520K = 5008441 yoke assy & nut# 131095; Spicer axles only
2.544 3.819 2.677 5.750 .240 BP 131518K 5008437 5008440
5008440 was replaced by 6.3-4-08440-1X; Attach nut #131095 on Spicer Axle only
2.544 3.819 2.677 5.750 .240 HR 131482K 5008437 5008441
5008441 was replaced by 6.3-4-08441-1X
2.544 3.819 2.677 5.750 .240 HR — 5008437 6.3-4-05582-1
131482K = 5008441 yoke assy & nut# 131095; Spicer axles only
