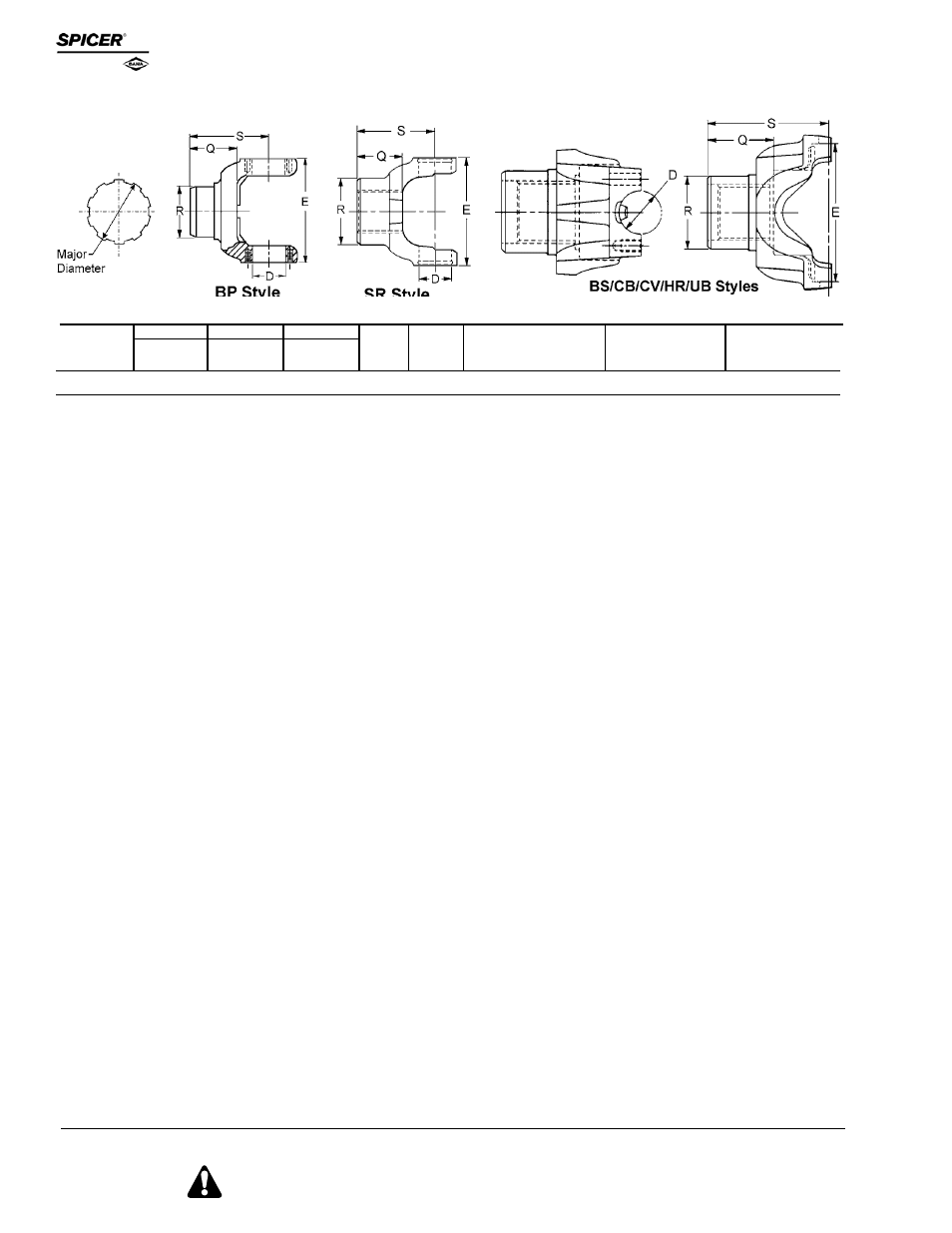

END YOKES with SPLINED HOLES
J300P-4
R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
46
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
1710 SERIES (Continued) E-6.094 (6.190 FOR HR STYLE) D-1.938 USE KIT 5-280X, & 5-675X
FOR HR STYLE USE STRAP KIT 6.5-70-18X
2.544-49 Involute Spline (Continued)
2.544 3.819 2.125 6.260 .120 HR 5008450 5008437 6-4-10311-1
5008450 was replaced by 6-4-08450-1X; 131438K = 5008450 yoke assy & nut# 131095; Spicer axles only
2.544 3.819 2.125 6.260 .120 HR 6-4-08450-1X 5008437 6-4-10311-1
131438K = 5008450 yoke assy & nut# 131095; Spicer axles only
2.544 3.819 2.677 6.050 .240 BP 5008438 5008437 5005579©
5008438 was replaced by 6-4-08438X; 131530K = 5008438 yoke assy & nut# 131095; Spicer axles only
2.544 3.819 2.677 6.050 .240 BP 6-4-08438X 5008437 5005579©
131530K = 5008438 yoke assy & nut# 131095; Spicer axles only
2.544 3.819 2.677 6.050 .240 HR 5008439 5008437 5005580•
5008439 was replaced by 6-4-08439-1X; 131519K = 5008439 yoke assy & nut# 131095; Spicer axles only
2.544 3.819 2.677 6.050 .240 HR 6-4-08439-1X — 5005580•
2.544 3.819 2.677 6.050 .240 BP 131530K 5008437 5008438
5008438 was replaced by 6-4-08438X; Attach nut #131095 on Spicer Axle only
2.544 3.819 2.677 6.050 .240 HR 131519K 5008437 5008439
5008439 was replaced by 6-4-08439-1X; Attach nut #131095 on Spicer Axle only
2.544 4.000 2.750 5.188 .180 BP — — 6-4-7691•
Hub machined for speedometer gear
2.544 4.000 2.750 5.188 .180 HR — — 6-4-7691-1
Hub machined for speedometer gear
2.588-40 Involute Spline
2.588 4.000 3.510 6.340 — HR 6-4-9751-1XM• 232760 6-4-9741-1M©
2.588 4.000 3.640 6.340 — HR 6-4-9571-1XM• 232759 6-4-9561-1M©
2.588 4.090 2.520 5.550 .120 HR — 5001687 5001692©
OEM only
2.588 4.090 2.520 5.550 .120 HR 6-4-01693X© 5001687 5001692©
OEM only
2.631-25 Involute Spline
2.631 3.625 2.562 5.250 1.000 BP — — 6-4-4921
2.631 3.625 3.000 5.250 1.000 BP — — 6-4-3021
2.635-20 Involute Spline
2.635 3.750 2.750 5.188 — BP 6-4-7071X• 231745 6-4-5351§
Hub Dia. 3.000 if used on Spicer 1241 Aux. Trans.; Hub machined for speedometer gear
2.635 3.750 2.750 5.188 — HR — 231745 6-4-5351§
Hub machined for speedometer gear
2.635 3.750 2.750 5.188 — HR — 231745 6-4-5351-1•
Hub machined for speedometer gear
2.635 3.750 2.750 5.188 — HR 6-4-7071-1X 231745 6-4-5351-1•
Hub Dia. 3.000 if used on Spicer 1241 Aux. Trans.; Hub machined for speedometer gear
