END YOKES with SPLINED HOLES
J300P-4

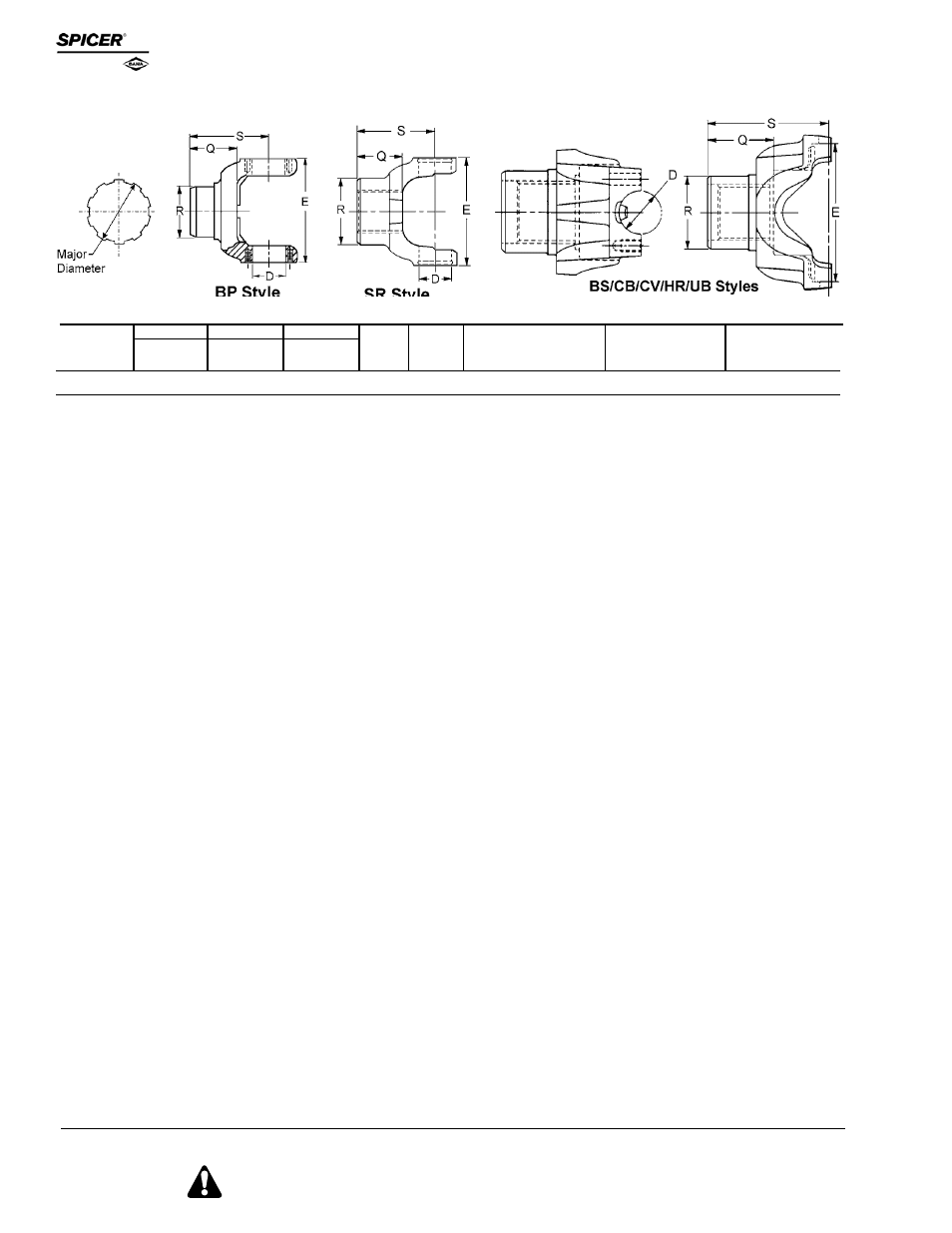

R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
38
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
1710 SERIES (Continued) E-6.094 (6.190 FOR HR STYLE) D-1.938 USE KIT 5-280X, & 5-675X
FOR HR STYLE USE STRAP KIT 6.5-70-18X
1.962-10 Spline
1.962 2.500 2.000 6.000 — BP — — 6-4-4261
High angle yoke
1.962 2.625 2.250 4.500 .250 BP 6-4-4731X• 230998 6-4-4721
Chamfered Counterbore
1.962 2.625 2.250 4.500 .250 HR 6-4-4731-1X• 230998 6-4-4721-1•
Chamfered Counterbore
1.962 2.625 2.250 5.250 — BP 6-4-5151X 230909 6-4-5141•
1.962 2.625 2.250 6.125 .250 BP 6-4-4851X 230909 6-4-4151•
.250 deep spline chamfer; High angle yoke
1.962 2.625 2.250 6.125 .250 HR 6-4-4851-1X• 230909 6-4-4151-1•
.250 deep spline chamfer; High angle yoke
1.962 2.750 2.812 5.156 — BP — — 6-4-3831
1.962 2.750 2.812 5.156 — HR — — 6-4-3831-1
1.964-10 Spline
1.964 2.625 2.250 4.500 .250 BP — — 6-4-2211§
Chamfered Counterbore
1.964 2.750 2.750 5.250 — BP — — 6-4-3901
1.964 3.000 2.250 4.562 — BP — — 6-4-3291
1.989-30 Involute Spline
1.989 3.000 2.700 6.280 .220 BP 6-4-7231X 231750 6-4-5781•
High angle yoke
1.989 3.000 2.703 6.281 .220 HR 6-4-8741-1X• 232199 6-4-8731-1
6-4-8731-1 was replaced by 6-4-8741-1X; High angle yoke
1.998-38 Involute Spline
1.998 2.750 2.125 5.250 — BP — — 6-4-7301
1.998 2.750 2.125 5.250 — HR — — 6-4-7301-1
1.998 2.810 3.000 5.000 .500 BP — — 6-4-7141
Coupling shaft yoke
1.998 2.810 3.000 5.000 .500 HR — — 6-4-7141-1
Coupling shaft yoke
1.998 3.000 2.125 4.840 .425 HR 6-4-9961-1X 232948 6-4-9951-1©
1.998 3.000 2.125 4.844 — BP 6-4-7291X• 231751 6-4-6201•
1.998 3.000 2.125 4.844 — HR 6-4-8661-1X 232200 6-4-8651-1©
2.000-10 Spline
2.000 2.750 2.000 5.000 — BP — — 6-4-2371
2.000 2.750 2.562 5.188 — BP 6-4-4391X• 230794 6-4-3271©
2.000 2.750 3.000 5.250 — BP — — 6-4-2361
2.000 2.750 3.000 5.250 — BS — — 6-4-2361-1•
2.000 2.938 2.562 5.188 — BP 6-4-4291X 98-1361 6-4-3241
