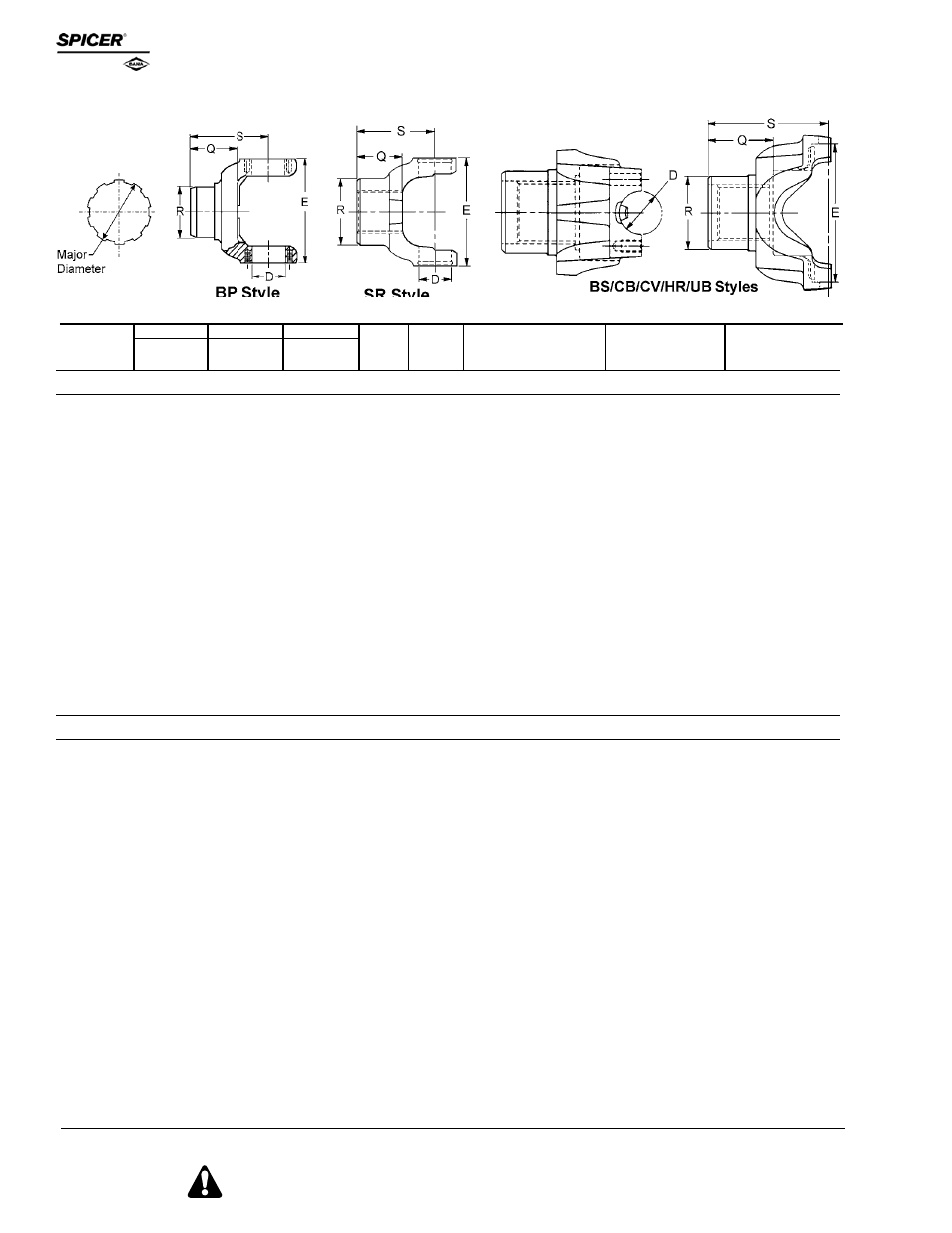

END YOKES with SPLINED HOLES
J300P-4
R Q S End Yoke Assy. Slinger/Plug Spicer
Major Ground Length Centerline C'Bore Style (includes slinger) Part Part
Diameter Hub Dia. Thru Hole to End Depth Order When Listed Number Number
30
Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
1550 SERIES (Continued) SR:E=5.250, ALL OTHERS:E-4.964 D-1.375 USE KIT 5-155X, 5-808X
USES U-BOLT ASSY. 3-94-28X, STRAP ASSY. 3-70-38X
2.143-41 Involute Spline
2.143 2.938 2.500 4.500 — BS 4-4-5701-1X• 231028 4-4-5581-1•
2.250-10 Spline
2.250 3.000 3.000 5.047 — BS — — 4-4-3931-2
Attaching hardware by OEM
2.250 3.500 3.000 5.125 — BS — — 4-4-3501-1
2.364-18 Involute Spline
2.364 3.000 2.765 4.777 — BS 4-4-3921-1X• — 4-4-2531-1•
2.364-36 Involute Spline
2.364 3.000 2.688 5.078 — BS 4-4-7111-1X 232200 4-4-7011-1•
2.372-46 Involute Spline
2.372 3.000 3.375 5.500 .787 BS 4-4-4451-1X 232189 4-4-4381-1©
2.372 3.000 3.734 6.193 .790 BS — — 4-4-7231-1M
Flanged yoke w/6 drilled holes in flange
2.372 3.020 3.734 6.193 .790 BS — — 4-4-7211-1M
Flange yoke; Flange has 8 threaded metric holes.
2.372 3.125 3.047 5.063 .500 BS — — 4-4-4761-1
1610 SERIES E-5.312 D-1.875 USE KIT 5-279X, 5-674X
FOR HR STYLE USE STRAP KIT 5-70-28X
1.618-18 Involute Spline
1.618 2.200 2.160 4.125 — BP — — 5-4-8041
1.625-10 Spline
1.625 2.375 2.125 4.125 — BP — — 5-4-2401
1.625 2.375 2.185 4.190 — BP — — 5-4-9741•
Four slots across end of hub
1.750-10 Spline
1.750 2.188 2.250 4.125 .500 BP — — 5-4-1721
Coupling shaft yoke; Forge version does not have counterbore
1.750 2.188 2.250 4.125 .500 HR — — 5-4-1721-1
Coupling shaft yoke
1.750 2.375 2.250 4.906 .250 HR — — 5-4-6941-1•
1.750 2.484 3.000 5.000 — BP — — 5-4-871•
1.750 2.500 1.938 4.125 — BP — — 5-4-5711
1.750 2.500 1.953 4.125 — HR — — 5-4-7631-1•
1.750 2.500 2.188 4.875 — HR — — 5-4-7031-1•
1.750 2.500 2.250 4.250 .250 BP — — 5-4-1051
1.750 2.500 2.250 4.720 — HR — — 5-4-7581-1•
1.750 2.625 2.250 4.125 — BP — — 5-4-781•
