25
Gas sampling and gas conditioning technology 2-1.1.4-ME
14.1 ADJUSTMENT OF THE SET VALUE TEMPERATURE
If the sample probes are delivered together with the temperature controllers 703 or double 703, then
the temperature controllers are parameterized for the sample probe. The adjusted set value of the
temperature is 320°C for the sample probe and 180°C for the heated separator.
In case there must be changed another parameter than the set value temperature, you can read how
to proceed in the separate operating manual of the temperature controller 703 (2-5.1.1MD).
C A U T I O N ! The maximum temperature of the device to be controlled must be heeded
because otherwise the equipment may be damaged or destroyed.
14.1.1 VERSION SP2000-H320/S

Open the lid of the connection box.

The adjustment of the set value is made via the control knob of the thermostat to be found
inside the connection box. The value can be adjusted between 50°C and max. 320°C.

The thermostat has got an excess temperature limiter that switches off automatically and per-
manently the heating in case the set value temperature is exceeded by 30°C. For switching
the heating on again, the RESET-button has to be actuated which is situated below the open-
ing in the mounting plate of the thermostat.

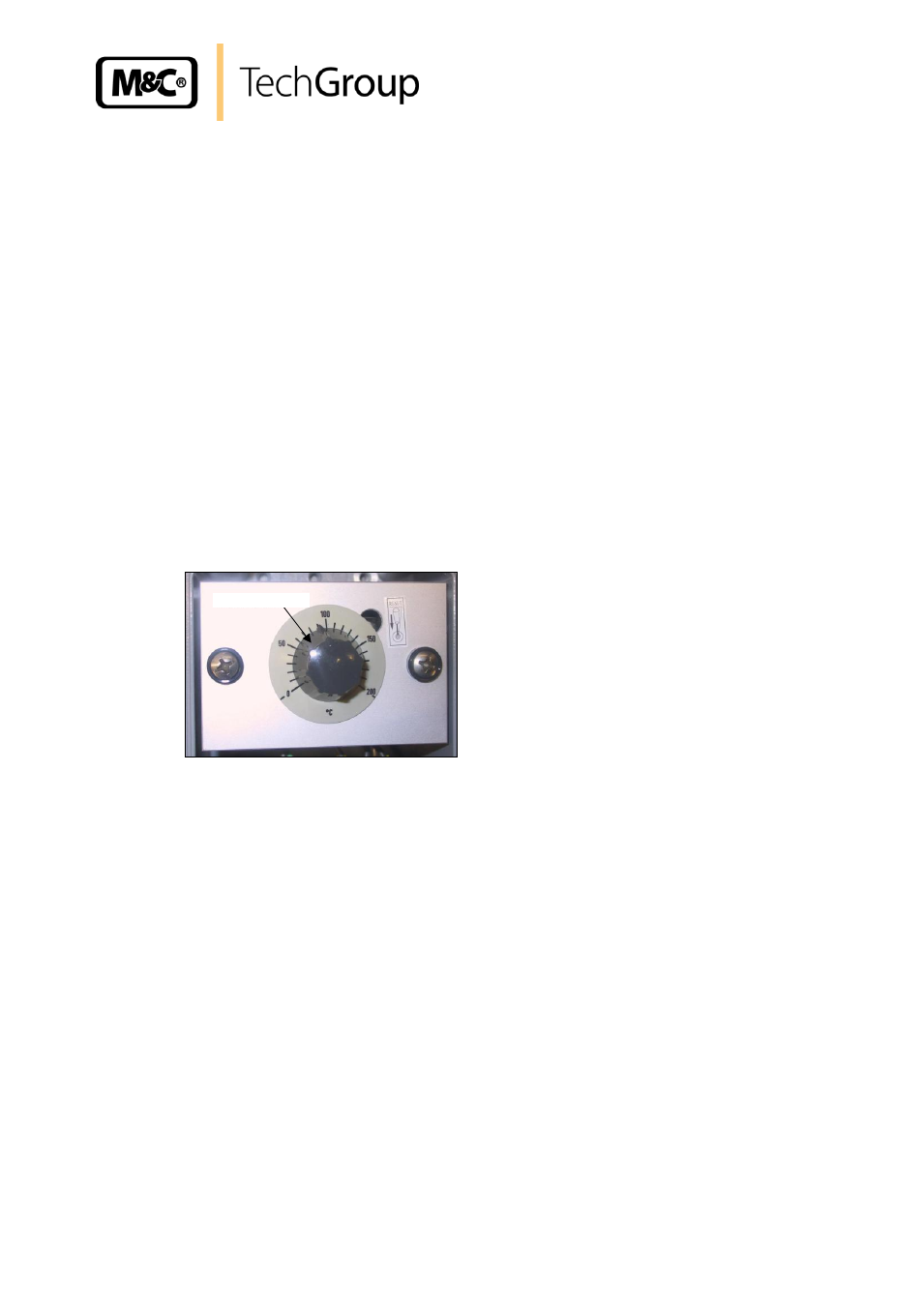

Adjustment knob
Figure 12 Set value adjustment on Version SP2000-H320/S
14.1.2 VERSION SP2000-H320/S1
The following steps have to be effected on the controller 703:

Push the PGM- key for a short time. On the display you can read “SP1”.

Adjust the desired set value by using the arrow keys   in the above display.

Wait until the set value is flashing for a short time, then it is fixed.

Push the PGM-key twice for return to the normal reading.
