Locate the sampling point in such a way that there is adequate space for inserting and remov-
ing the probe and pay attention to the insertion length of the probe tube! !

Make certain that the probe is easily accessible so that you can carry out any subsequent
maintenance work without trouble.

Make sure that the bleeder connection at site is made up and insulated so that the connec-
tion’s temperature is always above the dew point or above the acid dew point in order to avoid
corrosion and blockage problems as well as washing out effects. If this is not possible, a
heated sample tube SP35 / SP30 is recommended for cold connections.

If the ambient temperature in the area of the connections is >80°C due to radiant heat, then a
rediant heat reflection plate must be mounted to protect the probe.

The mounting flange connection of the connection piece should comply with DN65 PN6. If
other connection sizes are required, a special adapter flange can be supplied as option. In-
stead of a flange connection mounting, the probe can also be mounted us
ing a R2” adapter
on a corresponding threaded sleeve connection. The required minimum flange size or the
minimum connection piece diameter depends on the outside diameter of the used sample
tube or pre-filter.
Adapter- R 2"-threaded
to flange size
Seal according
Mounting fitting
20 S 9005
Seal 3/4"
90 S 2080
90 S 2077
DN65PN6
Seal
20 S 9004
flange
Options Probe Mounting

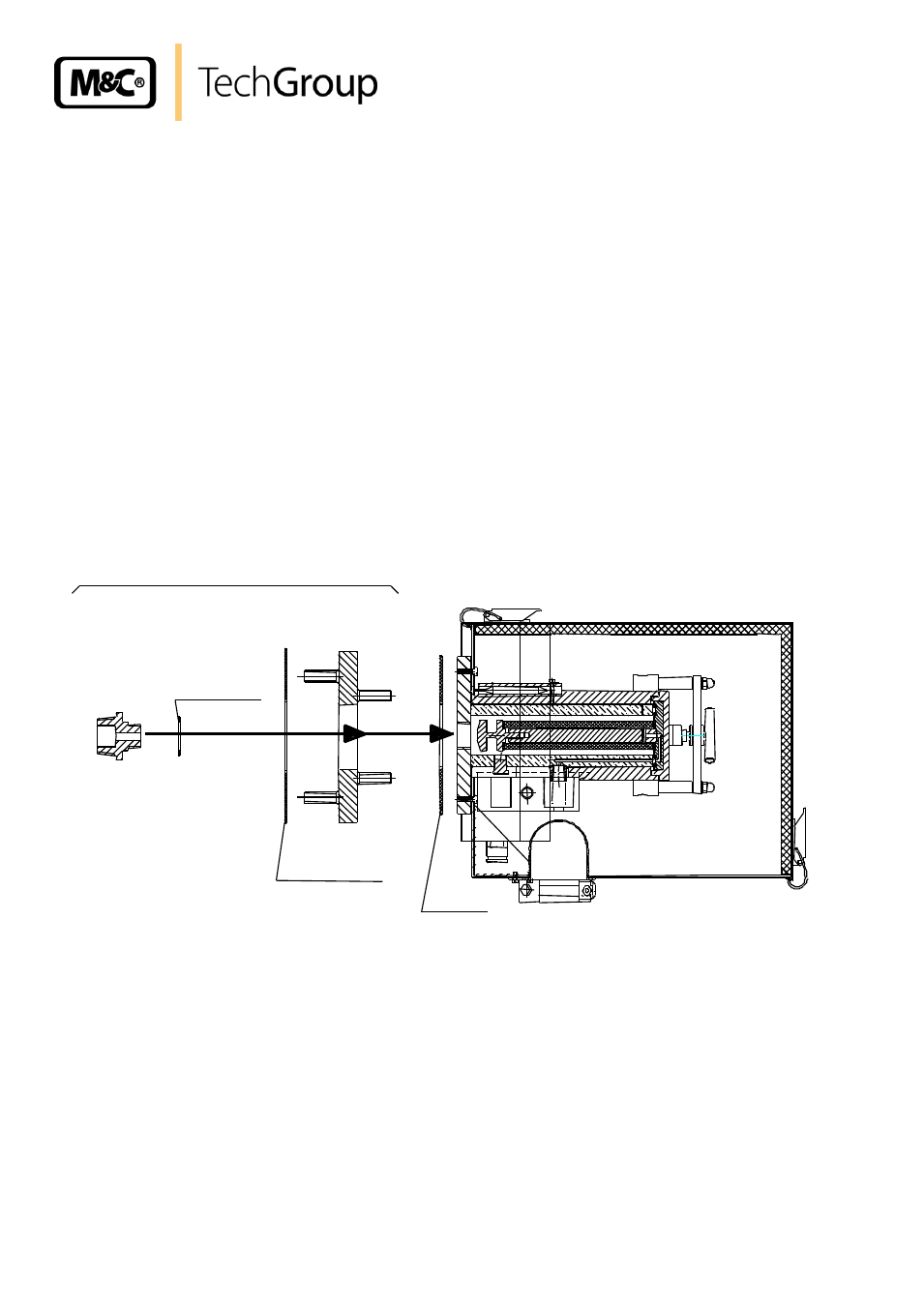

Figure 2 Mounting possibilities
12 MOUNTING
The M&C probes SP2000-H320/S.. are designed for stationary use and guarantee a long service life
and a minimum of maintenance provided they are properly selected and mounted. The required posi-
tion is horizontally.
