5

Fatal1ty X79 Champion Series Motherboard

English

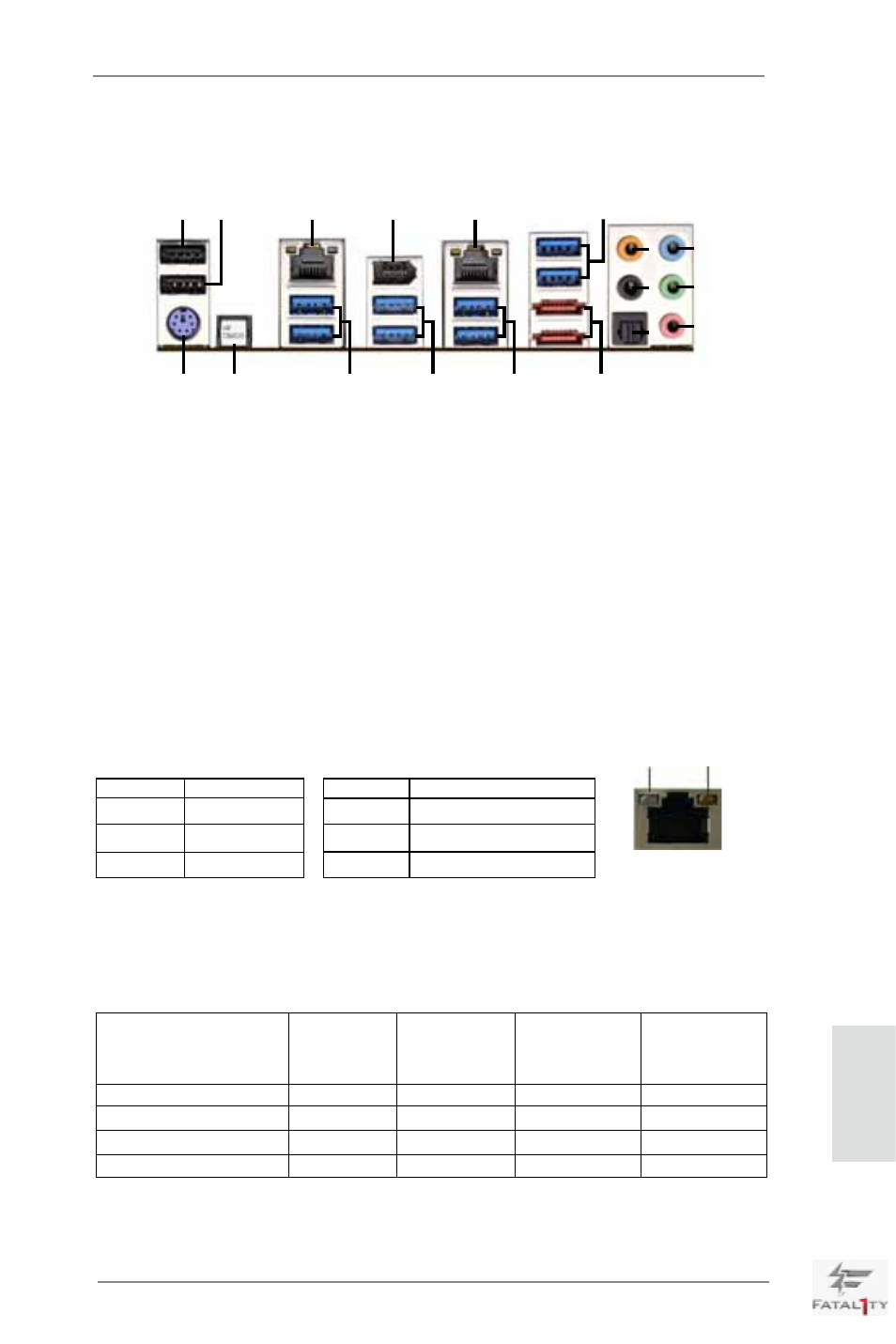

I/O Panel

* There are two LEDs next to the LAN port. Please refer to the table below for the LAN port LED
indications.

LAN Port LED Indications

Activity/Link LED

SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link

Green 1Gbps connection

ACT/LINK
LED

SPEED
LED

LAN Port

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

*** eSATA3 connectors support SATA Gen3 in cable 1M.

1

Fatal1ty Mouse Port (USB0)

2

USB 2.0 Port (USB1)

* 3

LAN RJ-45 Port

4

IEEE 1394 Port (IEEE 1394)

* 5

LAN RJ-45 Port

6

USB 3.0 Ports (USB3_78)

7

Central / Bass (Orange)

8

Rear Speaker (Black)

9

Optical SPDIF Out Port

10 Line In (Light Blue)

** 11 Front Speaker (Lime)

12 Microphone (Pink)

*** 13 eSATA3 Connectors

14 USB 3.0 Ports (USB3_56)

15 USB 3.0 Ports (USB3_34)

16 USB 3.0 Ports (USB3_12)

17 Clear CMOS Switch (CLRCBTN)

18 PS/2 Keyboard Port (Purple)

**

If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line in

(No. 11)

(No. 8) (No. 7) (No. 10)

2 V

-- -- --

4 --

-- -- --

6 V

V V --

8 V

V V V
