34
Fatal1ty X79 Champion Series Motherboard
English
Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI
connector of the graphics card that is inserted to PCIE1 slot.
For dual slot or triple slot graphics cards, we suggest inserting them in
PCIE1, PCIE4 and PCIE7 slots. Then align and insert the ASRock 3-Way
SLI-2S2S Bridge Card to the goldfingers on each graphics card.

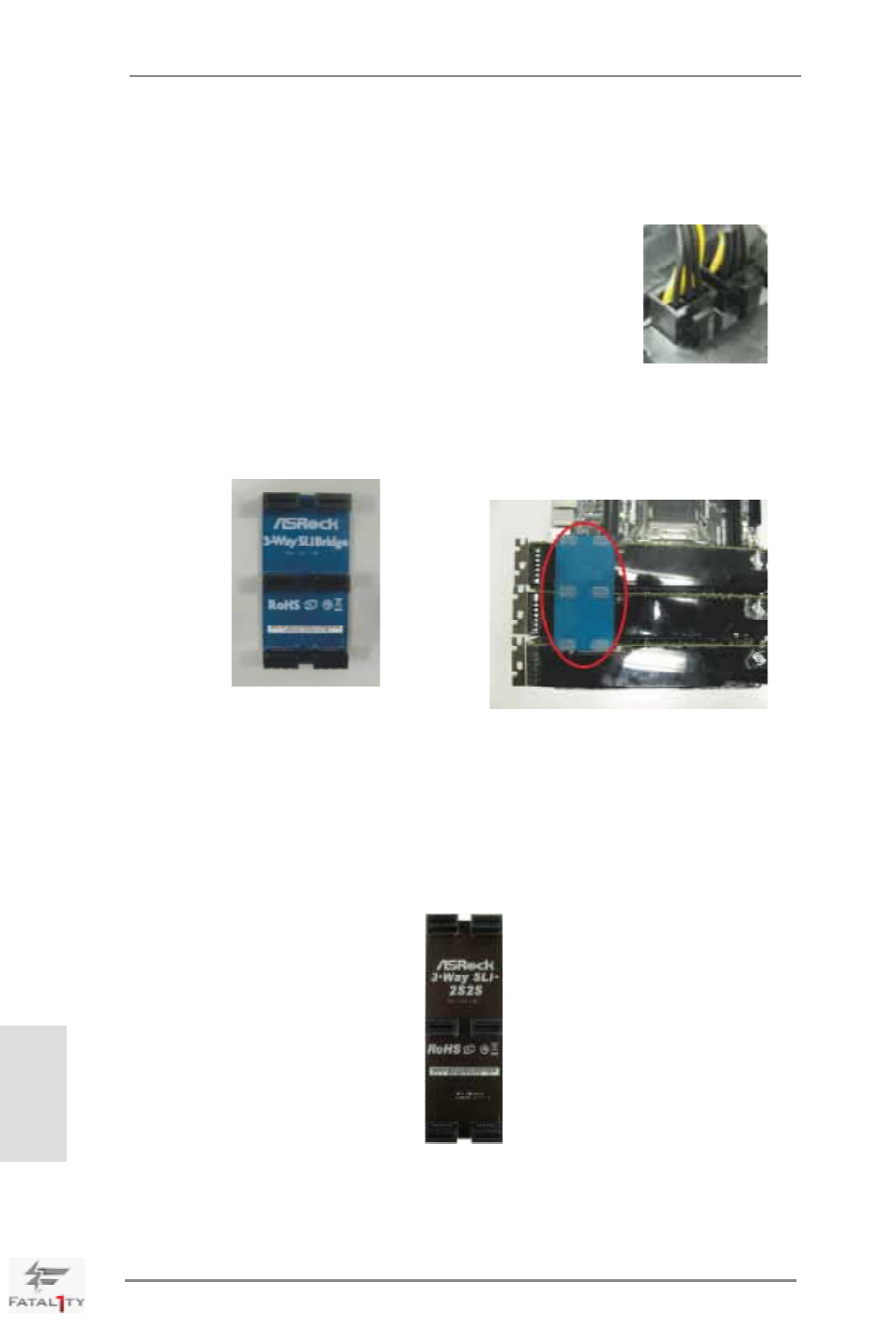

Step3. Align and insert the ASRock 3-Way SLI Bridge Card to the goldfingers
on each graphics card. Make sure the ASRock 3-Way SLI Bridge Card is
firmly in place.
ASRock 3-Way SLI Bridge Card
Step2. Connect the auxiliary power source to the PCI Express graphics card.
Please make sure that both power connectors on the PCI Express graph-
ics card are connected. Repeat this step on the three graphics cards.
ASRock 3-Way SLI-2S2S Bridge Card
