48
Fatal1ty X79 Champion Series Motherboard
English

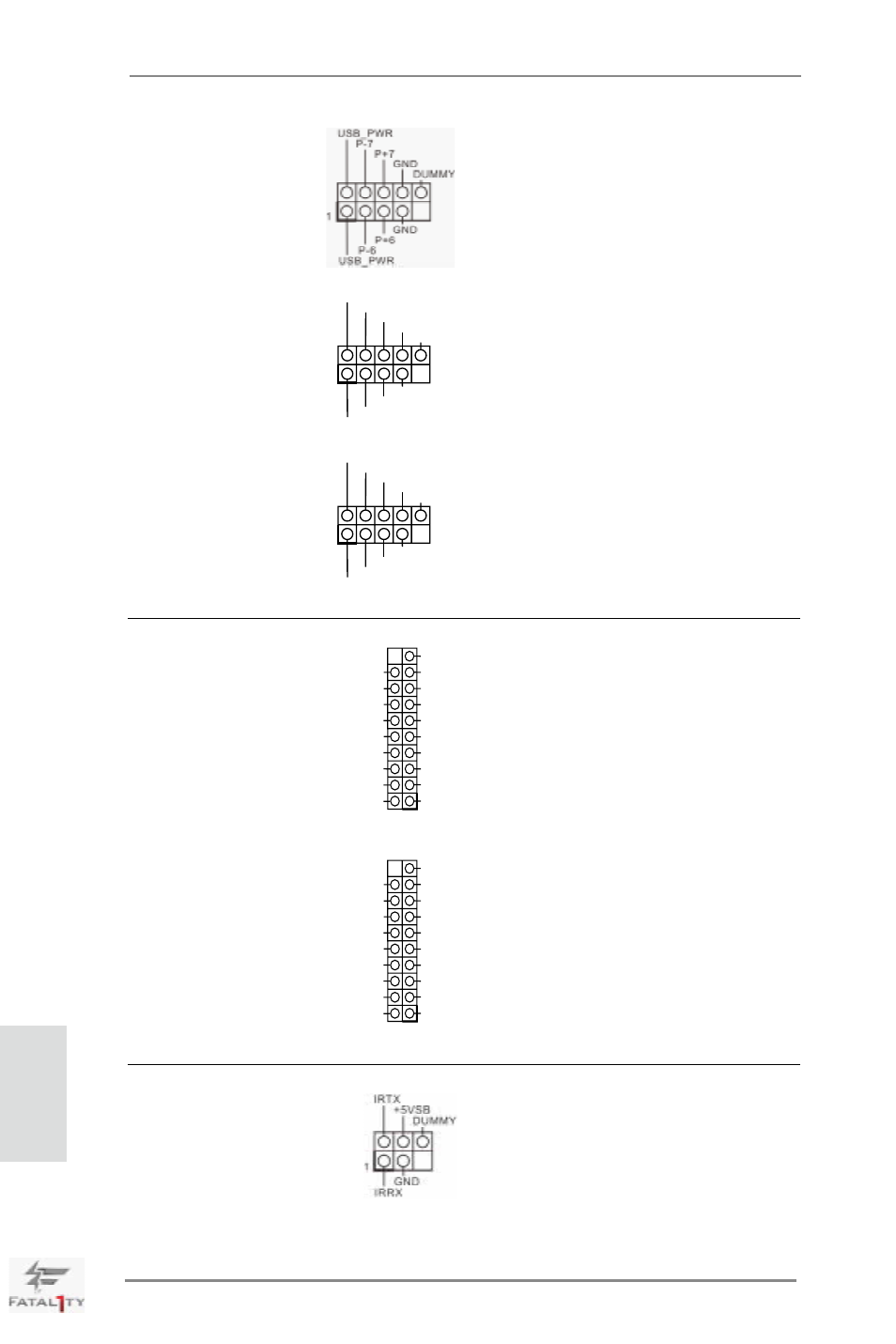

USB 2.0 Headers Besides two default USB 2.0
(9-pin USB_6_7) ports on the I/O panel, there are
(see p.4 No. 32) three USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB 2.0
ports.
(9-pin USB_4_5)
(see p.4 No. 33)
(9-pin USB_2_3)
(see p.4 No. 34)
DUMMY
GND
GND
P+5
P-5
USB_PWR
P+4
P-4
USB_PWR
1
DUMMY
GND
GND
P+3
P-3
USB_PWR
P+2
P-2
USB_PWR
1
USB 3.0 Header Besides eight default USB 3.0
(19-pin USB3_11_12) ports on the I/O panel, there are
(see p.4 No. 13) two USB 3.0 headers on this
motherboard. Each USB 3.0
header can support two USB 3.0
ports.
(19-pin USB3_9_10)
(see p.4 No. 14)
1
IntA_P12_D+
Dummy
IntA_P12_D-
GND
IntA_P12_SSTX+
GND
IntA_P12_SSTX-
IntA_P12_SSRX+
IntA_P12_SSRX-
Vbus Vbus
Vbus
IntA_P11_SSRX-
IntA_P11_SSRX+
GND
IntA_P11_SSTX-
IntA_P11_SSTX+
GND
IntA_P11_D-
IntA_P11_D+
1
IntA_P10_D+
Dummy
IntA_P10_D-
GND
IntA_P10_SSTX+
GND
IntA_P10_SSTX-
IntA_P10_SSRX+
IntA_P10_SSRX-
Vbus Vbus
Vbus
IntA_P9_SSRX-
IntA_P9_SSRX+
GND
IntA_P9_SSTX-
IntA_P9_SSTX+
GND
IntA_P9_D-
IntA_P9_D+
Infrared Module Header This header supports an
(5-pin IR1)
optional wireless transmitting
(see p.4 No. 37) and receiving infrared module.
