Español – ASRock Fatal1ty X79 Champion User Manual
Page 141
141
Fatal1ty X79 Champion Series Motherboard

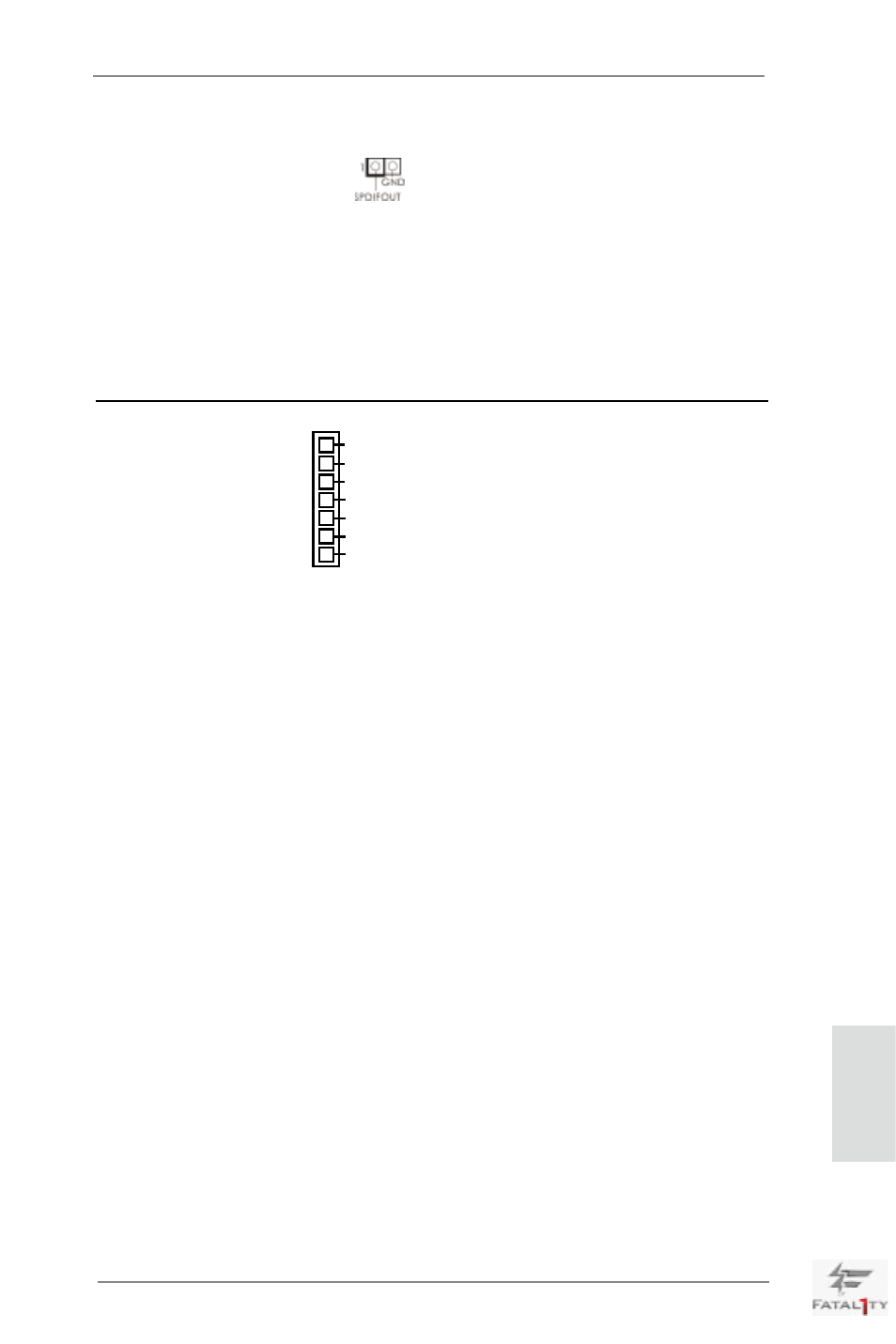

Cabecera HDMI_SPDIF
Cabecera HDMI_SPDIF. Ofrece
(HDMI_SPDIF1 de 2 pin)
una salida SPDIF la tarjeta
(vea p.4, N. 39)
VGA HDMI, permite al sistema
conectarse a dispositivos de
TV Digital HDMI / proyectores /
Dispositivos LCD. Conecte el
conector HDMI_SPDIF de la
tarjeta VGA HDMI a esta
cabecera.
V-Probe
TM
Los usuarios pueden medir
(VOL_CON1 de 7 pin)
el voltaje de los componentes
(vea p.4, N. 9)
integrados, como por ejemplo
VCORE, VCCSA, DRAM_CD,
DRAM_AB y VTT.
GND
VCORE
VCCSA
DRAM_CD
DRAM_AB
GND
VTT
Español
