2-4 Hardware Installation & Initial Setup
2.4 Front Panel LEDs
The LEDs on the front panel indicate the operational status of the Prestige.

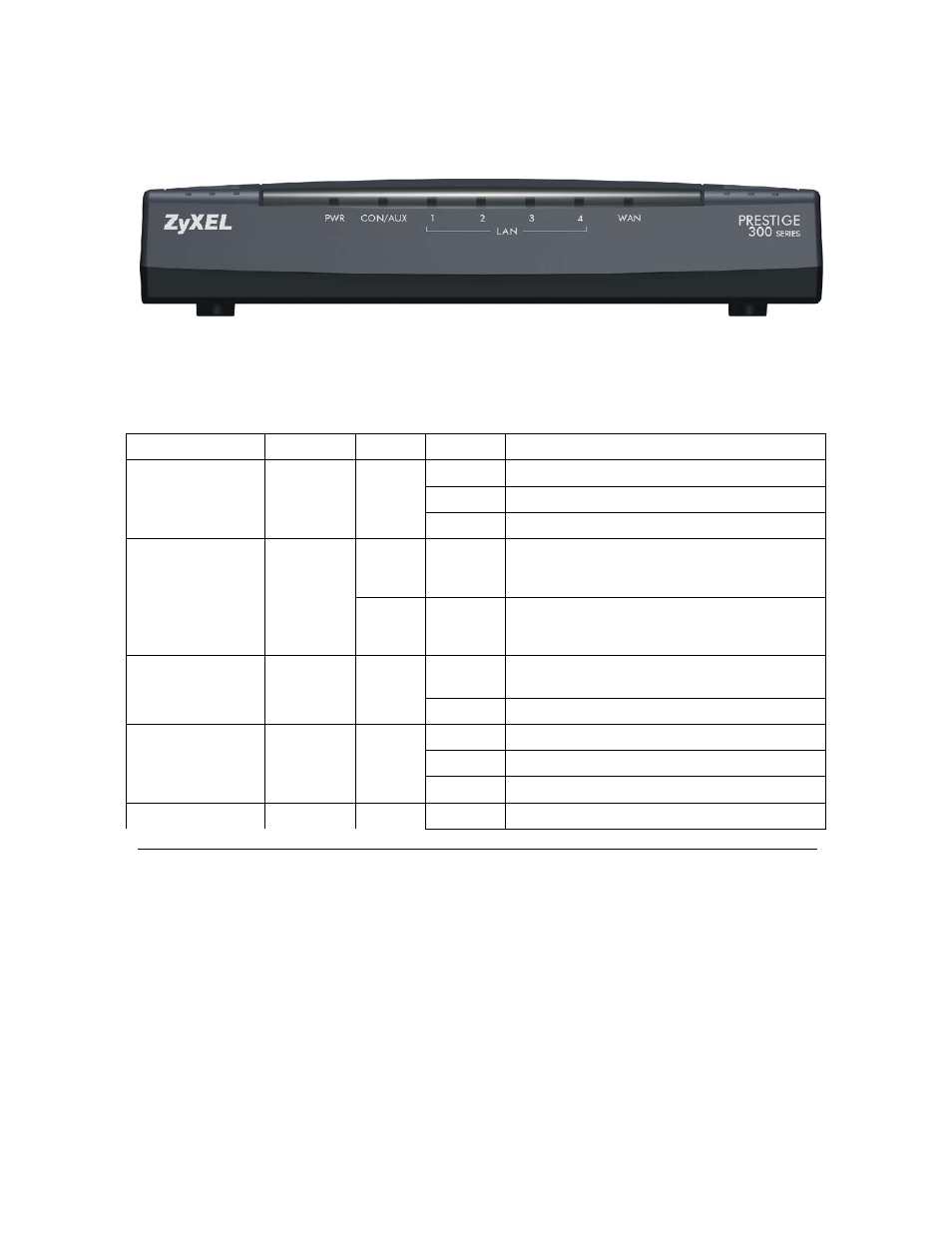

Figure 2-2 Front Panel
The following table describes the LED functions.
Table 2-2 LED Descriptions
LED FUNCTION COLOR STATUS MEANING
PWR Power Green On The Prestige is receiving power.
Off The system is not ready or failed.
Flashing The system is performing system tests.
CON/AUX Console/
Auxiliary
Green On The port is in console mode (CON/AUX switch
set to CON) and is connected to a management
computer.
Orange On The port is in auxiliary mode (CON/AUX switch
set to AUX), is connected to a modem or TA and
the link is up.
Orange Flashing Data is being sent/received through the backup
modem or TA.
Off There is no connection to the CON/AUX port.
10M LAN1,2,3,4 LAN Off The 10M LAN port(s) is not connected.
Green On The Prestige is connected to a 10M LAN port(s).
Flashing The 10M LAN is sending/receiving packets.
100M LAN1,2,3,4 Off The 100M LAN port(s) is not connected.
