Appendix J Maintenance of TOSHIBA RAID Appendices
Appendix J
Appendix J Maintenance of TOSHIBA RAID
J.1 Outline of Maintenance (Repair) of TOSHIBA RAID
Follow the below procedures to repair TOSHIBA RAID
Reception
Is the RAID configured
by two HDD?(*1)
Identify the failed HDD (*2)
Yes
Perform the HDD Trouble-
shooting Procedure in
Section 2.6.
No
Treatment
Is it needed to
specify the cause?
Analysis by Drive Log (*3)
Yes
No

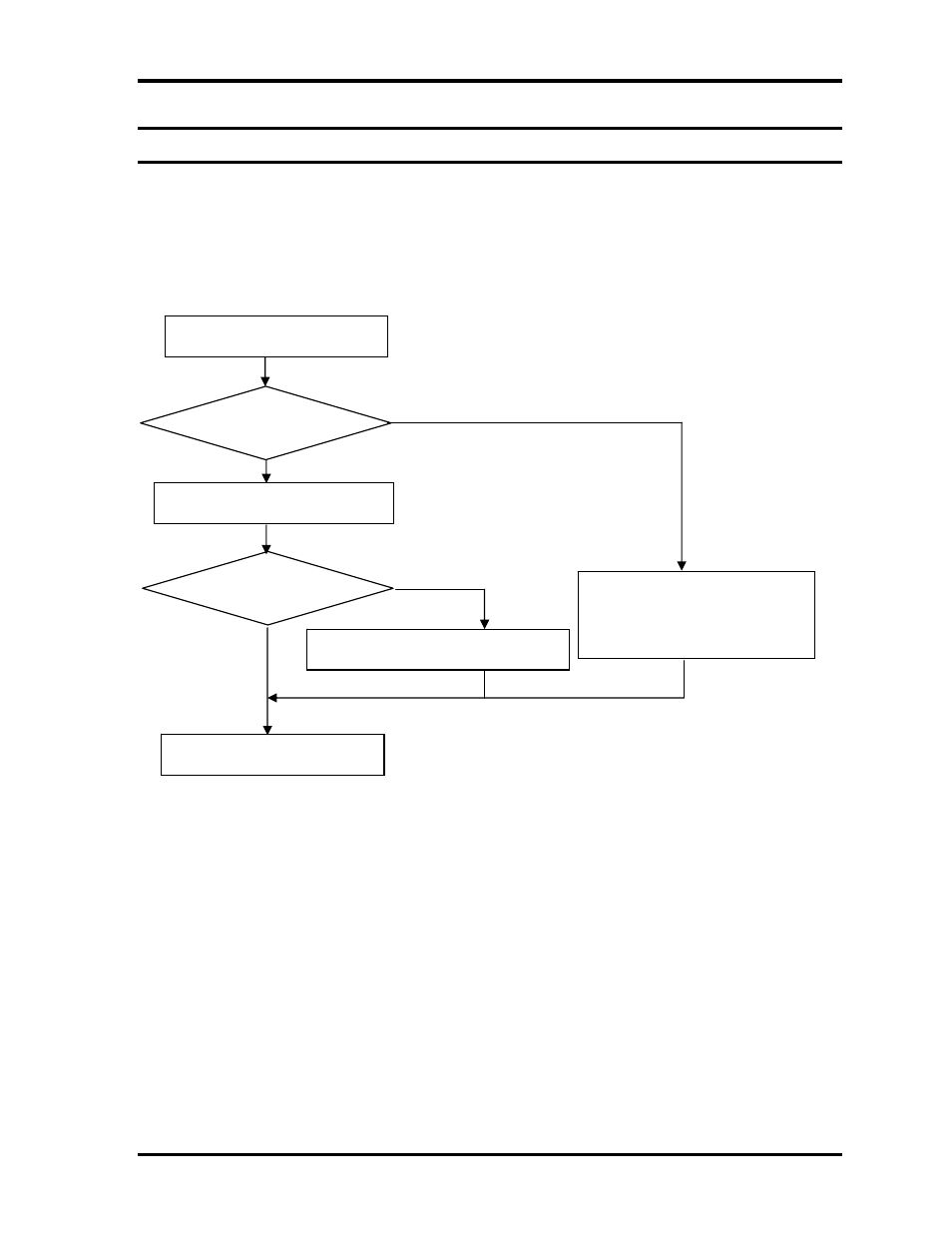

Figure J-1 Flowchart of repairing TOSHIBA RAID
*1: Refer to “Check of RAID configuration” in Section 3.3 in Chapter 3.
*2: Refer to “Identifying failed HDD” in Section 3.3.3 of Chapter 3.
*3: Refer to “Analysis and handling by Drive Log” in section J.2.
