4 Replacement Procedures 4.15 Battery lock assembly/Pen holder assembly
4.15 Battery lock assembly/Pen holder assembly
Removing the Battery lock assembly/Pen holder assembly
The following describes the procedure for removing the battery lock assembly/pen holder
assembly. (See Figure 4-29.)
1. Remove the pen holder assembly from the slot.
2. Remove the battery lock assembly from the slot.
Battery lock assembly
Pen holder assembly

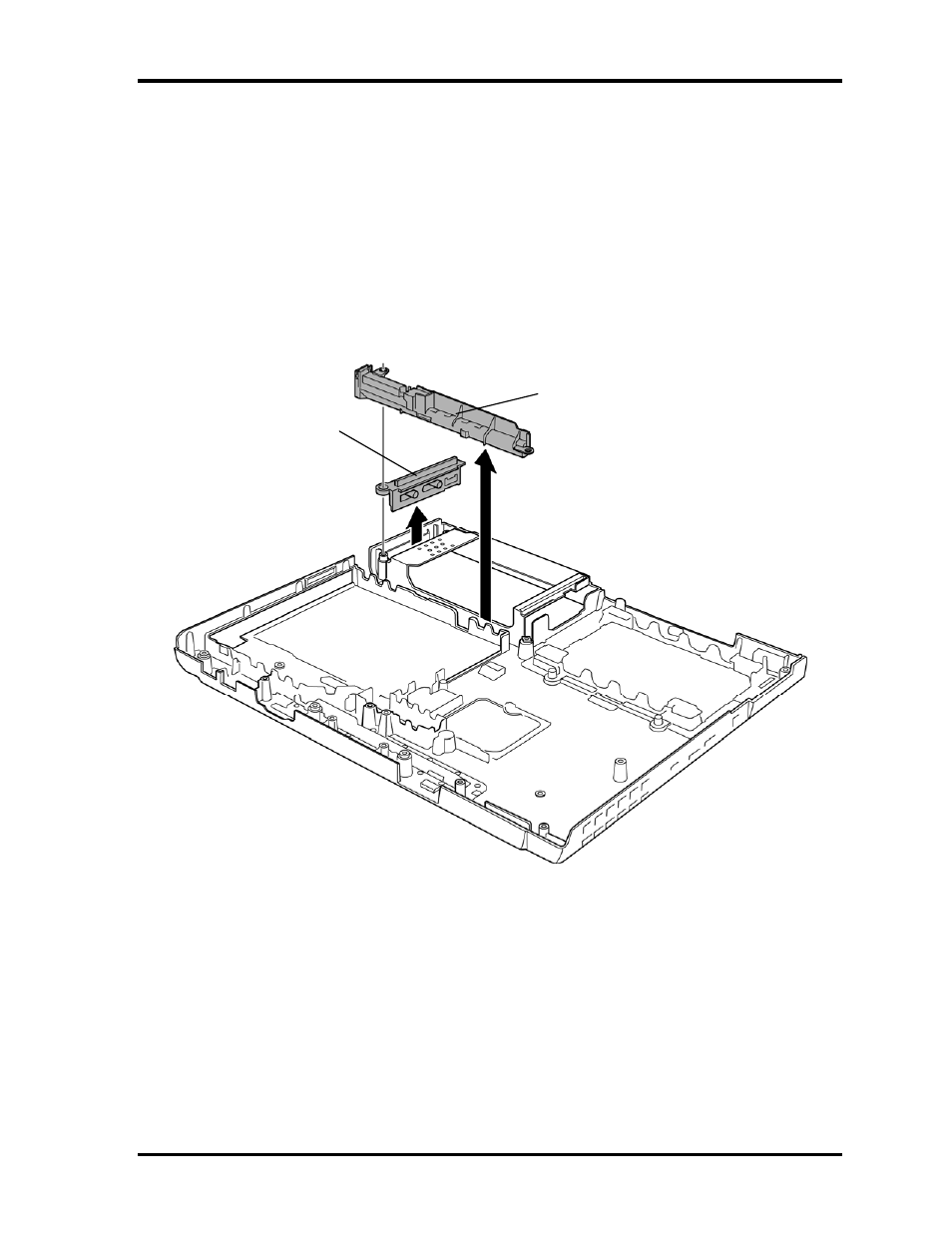

Figure 4-29 Removing the battery lock assembly/pen holder assembly
Installing the Battery lock assembly/Pen holder assembly
The following describes the procedure for installing battery lock assembly/pen holder
assembly (See Figure 4-29).
1. Install the battery lock assembly to the slot.
2. Install the pen holder assembly to the slot
4-46 [CONFIDENTIAL] PORTEGE M400 Maintenance Manual (960-541)
