– 64 –

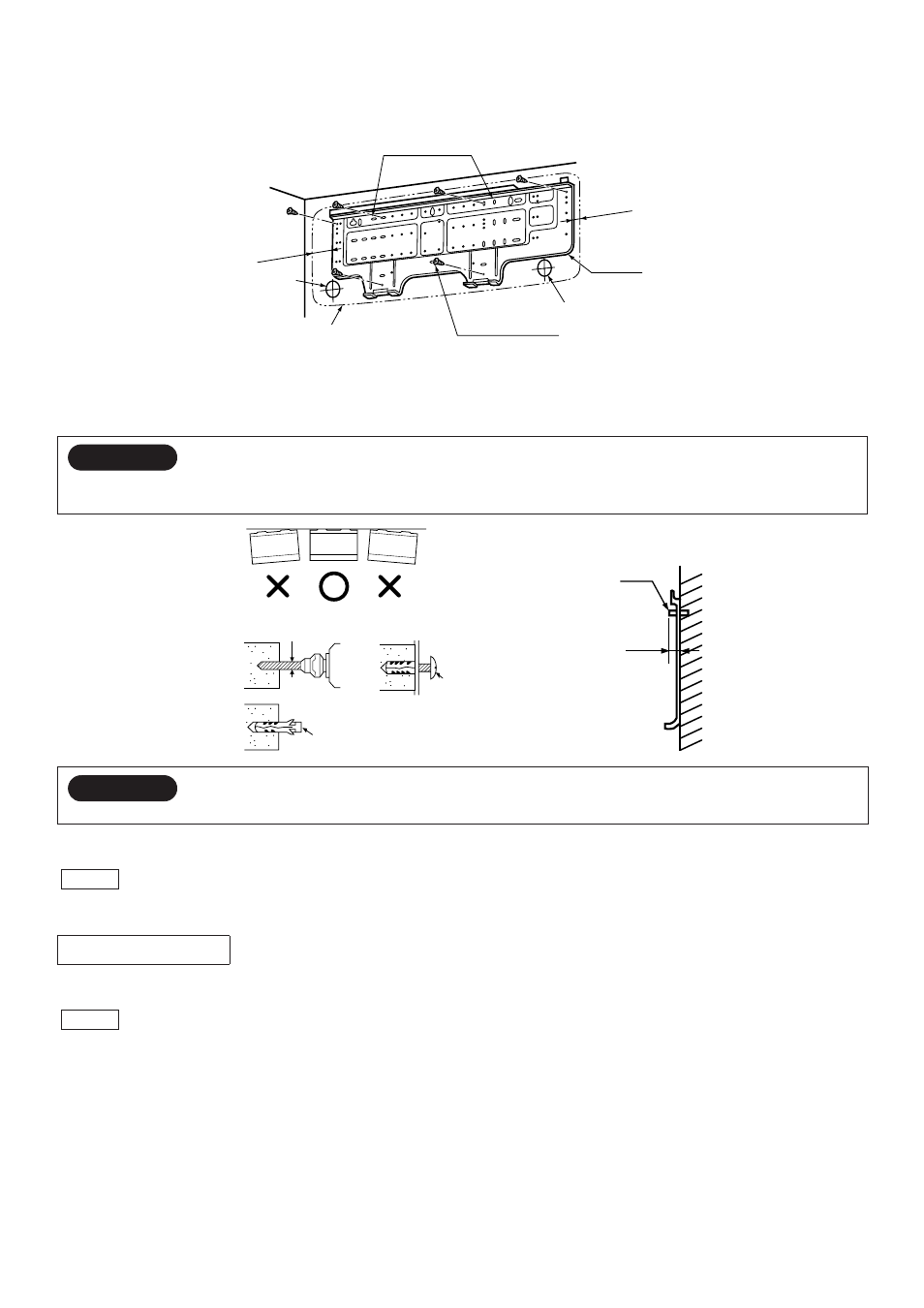

Mounting the installation plate
When the installation plate is directly mounted on the wall
1. Securely fit the installation plate onto the wall by screws with the upper and lower catches, that hold the indoor unit, facing out.
2. To mount the installation plate on a concrete wall use anchor bolts. Drill the anchor bolt holes as illustrated in the above figure.
3. Install the installation plate horizontally and level.
• In case of block, brick, concrete or similar type walls, drill 5 mm dia. holes in the wall.
• Insert clip anchors for the
g mounting screws.
NOTE
• Install the installation plate using between 4 to 6 mounting screws, being sure to secure all four corners.
1. The supply voltage must be the same as the rated voltage of the air conditioner.
2. Prepare a power source for the exclusive use of the air conditioner.
NOTE
• Wire type: More than H07RN-F or 245IEC66 (1.0 mm 2 or more)
CAUTION
When installing the installation plate with mounting screws, do not use anchor bolt holes. Otherwise the unit may fall down and
result in personal injury and property damage.
CAUTION
Failure to securely install the unit may result in personal injury and/or property damage if the unit falls.
Electrical Work
91 mm
25 mm
Anchor bolt holes
Indoor unit
Pipe hole
Pipe hole
g Mounting screw
a Installation plate
Clip anchor
(local parts)
g Mounting screw
φ 4 x 25L
Anchor bolt
Projection 15 mm or less
5 mm dia. hole
