– 101 –
12. HOW TO REPLACE THE MAIN PARTS
WARNING
• Since high voltages pass through the electrical parts, turn off the power without fail before proceeding with the
repairs.
Electric shocks may occur if the power plug is not disconnected.
• After the repairs have been completed (after the front panel and cabinet have been installed), perform a test
run, and check for smoking, unusual sounds and other abnormalities.
If this check is omitted, a fire and/or electric shocks may occur.
Before proceeding with the test run, install the front panel and cabinet.
• Ensure that the following steps are taken when doing repairs on the refrigerating cycle.
(1) Do not allow any naked flames in the surrounding area. If a gas stove or other appliance is being used,
extinguish the flames before proceeding. If the flames are not extinguished, they may ignite any oil mixed
with the refrigerant gas.
(2) Do not use welding equipment in an airtight room. Carbon monoxide poisoning may result if the room is not
properly ventilated.
(3) Do not bring welding equipment near flammable objects.
Flames from the equipment may cause the flammable objects to catch fire.
• If keeping the power on is absolutely unavoidable while doing a job such as inspecting the circuitry,
wear rubber gloves to avoid contact with the live parts.
Electric shocks may be received if the live parts are touched.
High-voltage circuits are contained inside this unit. Proceed very carefully when conducting checks since
directly touching the parts on the control circuit board may result in electric shocks.

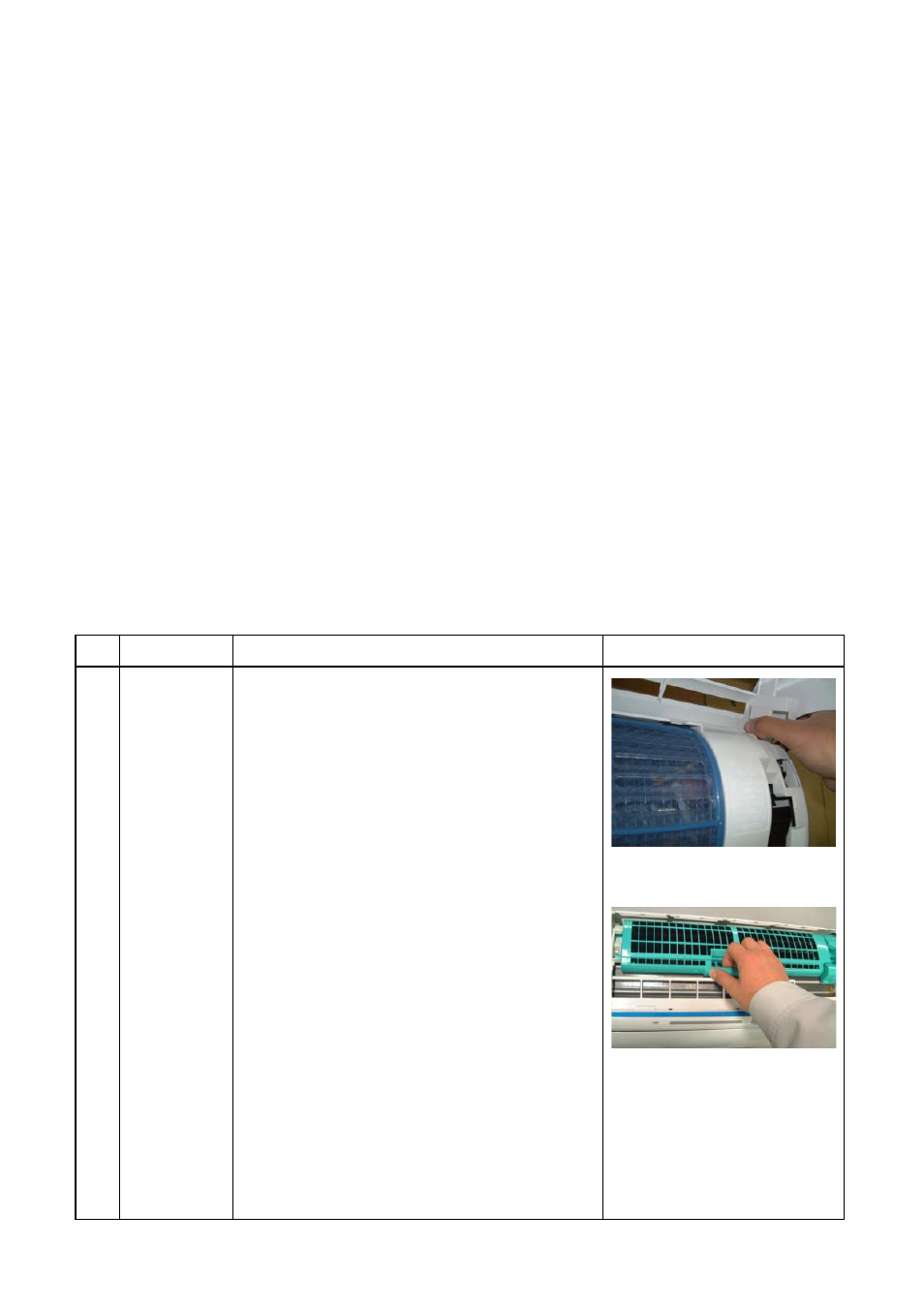

12-1. Indoor Unit
No. Remarks Procedures Part name
Front panel
!
1) Stop operation of the air conditioner and turn off
its main power supply.
2) Open the air inlet grille, push the arm toward the
outside, and remove the grille.
3) Remove the left and right air filters, and remove
the electric dust collector.
