– 103 –

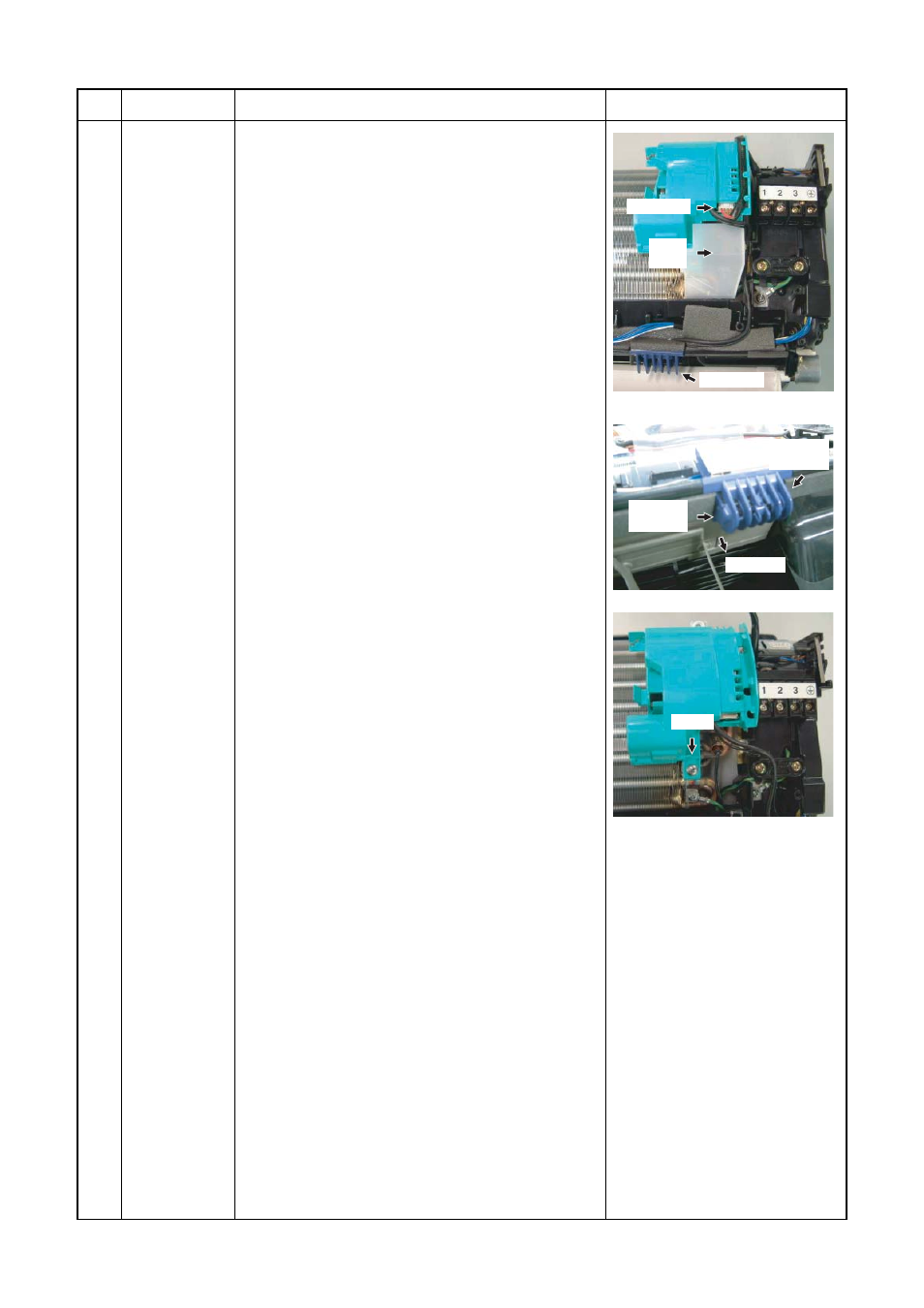

No. Remarks Procedures Part name
High voltage
generator
"
1) Follow to the procedure in the item ! .
2) Remove the drain guide.
3) To remove the air ionizer from the back body,
pull it toward you while pressing down on its left
and right claws. Disconnect the two leads
(black) connected to the air ionizer from where
they are fitted into the other components.
(Caution: do not remove the Faston.)
4) Disconnect the connectors of the high-voltage
generator, and disconnect the four leads from
where they are fitted into the other components.
5) Remove the fixing screw which secures the high
voltage generator, and remove the high voltage
generator from the evaporator.
Air ionizer
Connector
Drain
guide
Push the
claw here
Push the
claw here
Pull here
Screw
