Appendix
Appendix-6
No. Photo / Explanatory diagram Procedure
2

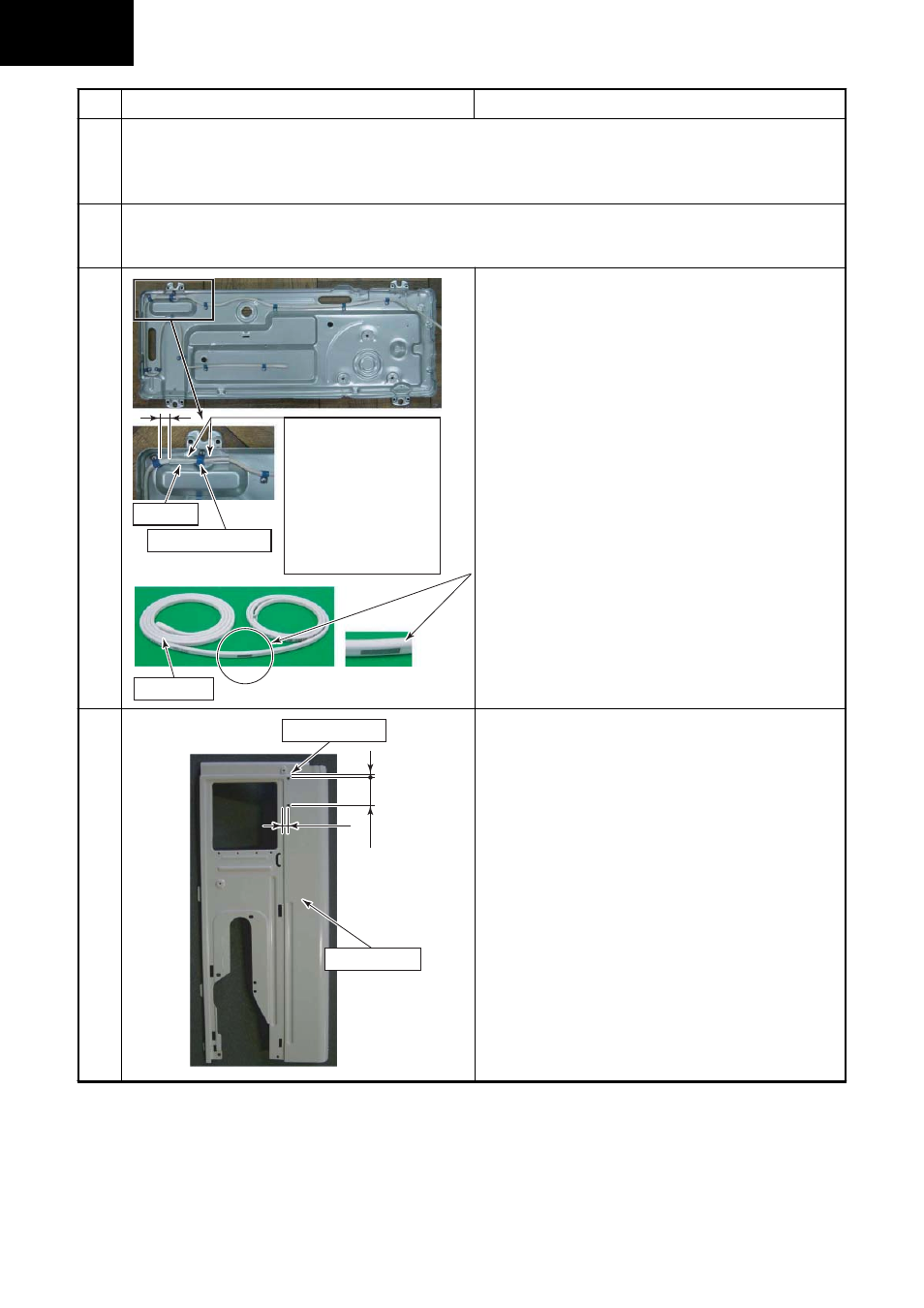

Cord heater installation work
Drill a hole on the outdoor unit base plate, and fix the cord heater to the outdoor unit base plate using P-shape
clamp.
Connect the cord heater cables.
2-1
Using a motor drill, etc., drill Ø3.2 holes on the outdoor unit base plate. (12 positions) See Appendix-10 for the
additional hole positions.
These holes are used to fix the cord heater to the outdoor unit base plate with P-shape clamp.
2-2
Insert the PVC tube into the cord heater.
This tube is designed to protect the cord heater from the
fixing screws used to secure the anchoring feet.
As shown in the left figure, install the cord heater (1.5m) to
the outdoor unit base plate by using P-shape clamp and
screws (Self-tapping screw type-B Ш4 Ч 6mm, stainless).
Pay attention to the direction of P-shape clamp so that it
is set to the same direction in the left figure.
* If the drain port is frozen due to installation status,
etc., draw around the cord heater so that the end part
of the heater is inserted into the drain port. In this
case, add some fixing positions to fix the cord heater
surely.
* The end part from the marked part of the cord heater
heats up. When there is the heating part near the
electric parts box, a fire may generate. Be sure to set
the heating part on the outdoor unit base plate at the
fan room side or near it. (within 20cm from the
outdoor unit base plate)
* Be careful that the cord heater does not hit the fan.
Fix the cord heater without any loosening or sag.
2-3
Drill a hole on the side cabinet (R) for fixing the
thermostat fixing plate.
Ø5 hole at two positions
When drilling a hole on the side cabinet (R), be sure not
to damage the cabinet.
Added hole 2-
φ
5
Side cabinet (R)
7
5
46
5
φ 9.1 P-shape clamp
PVC tube
The PVC tube must be
inserted into the cord
heater between the fixing
screws in order to protect
the cord heater from
these screws. Under no
circumstances must the
tube be allowed to ride
over the tip of the fixing
screws.
Enlarged
marked part
Heating part
