– 122 –

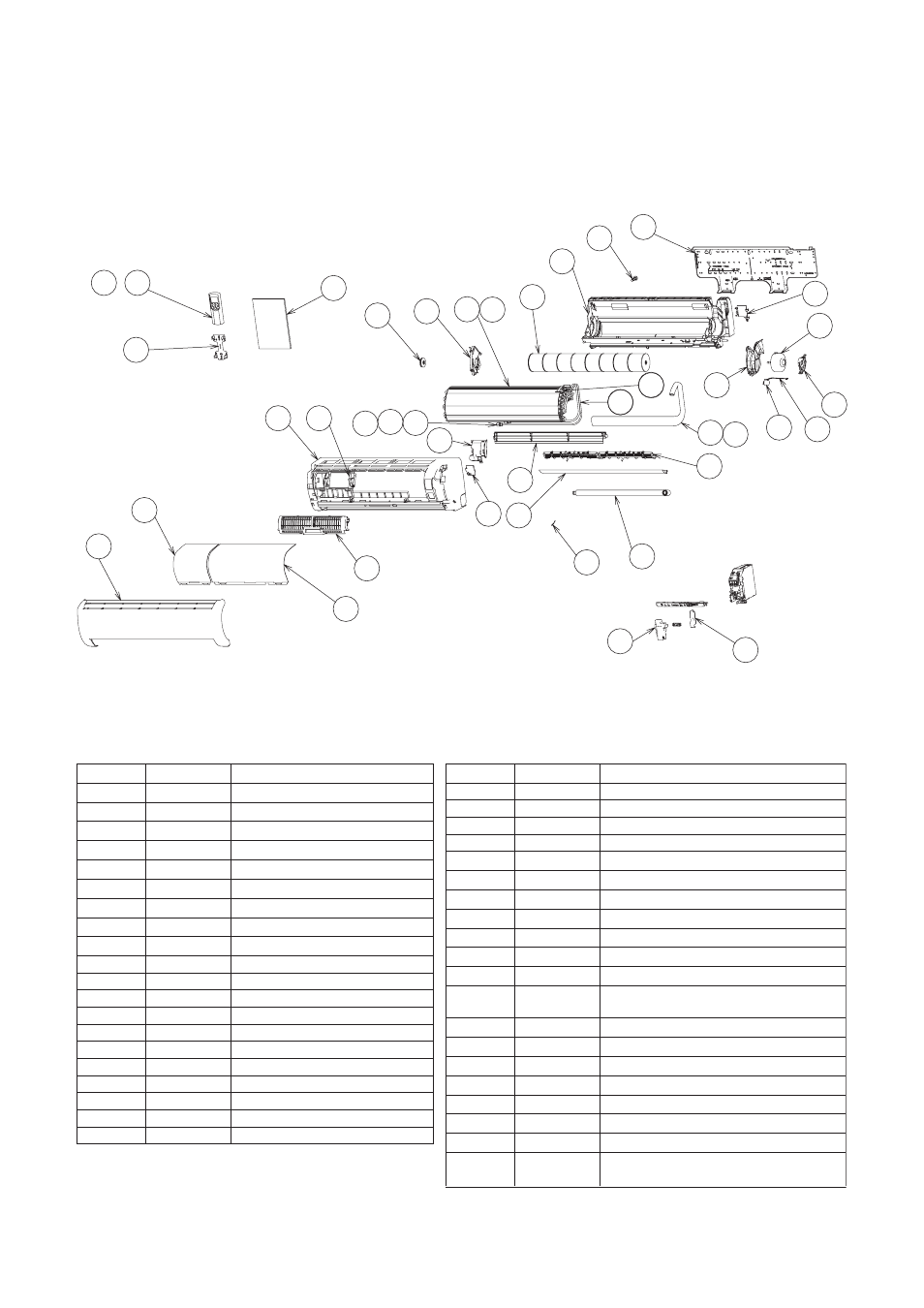

13. EXPLODED VIEWS AND PARTS LIST
13-1. Indoor Unit (1)
233
232
239
207
218
212 230
223
219
210 211
215
209
217
234
240
238
214
226 225 213
216
247
235 248
236
201 203
221 222 224
246
227
228
245
204
205
202
206
229
Location No. Part No. Description
201 43005611 PANEL ASS’Y, FRONT
202 43005610 GRILLE, AIR INLET
203 4301V052 PLATE, FIX
204 43080512 FILTER, AIR
205 43080521 FILTER, AIR
206 43009675 LOUVER, HORIZONTAL
207 43009649 LOUVER, VERTICAL
209 4302C060 MOTOR, FAN
210 4302C029 MOTOR, LOUVER
211 4306A024 CORD, MOTOR, LOUVER
212 43039363 BAND, MOTOR, LEFT
213 43039321 BASE, BEARING
214 43020315 FAN, CROSS FROW
215 43039314 BAND, MOTOR
216 43020253 BEARING
217 4301V028 HOLDER, PIPE
218 43049701 PIPE, SHIELD (*1)
219 43049698 PIPE, SHIELD (*2)
221 43047332 PIPE, SUCTION (*2)
222 43047334 PIPE, SUCTION (*1)
Location No. Part No. Description
223 43049674 SPRING, SUCTION (*1)
224 43047331 PIPE, DELIVERY
225 43044788 EVAPORATOR (*2)
226 43044789 EVAPORATOR (*1)
227 43039324 GUIDE, DRAIN
228 43049728 GUIDE, DRAIN, LEFT
229 43019904 HOLDER, SENSOR
230 43049715 HOLDER, EVAPORATOR, RIGHT
232 43062256 COVER, TERMINAL
233 43062247 COVER, LEAD
234 43082290 PLATE, INSTALLATION
235 4306S577 REMOTE CONTROLLER (Heat pump
models)
236 43083071 HOLDER, REMOTE, COMTROLLER
238 43003301 BODY ASS’Y, BACK
239 43070187 HOSE, DRAIN
240 43079268 CAP, DRAIN
245 43080516 ELECTRICAL AIR PURIFYING FILTER
246 43080518 GENERATOR, ASS’Y HV
247 4308N505 O
248 4306S578 REMOTE CONTROLLER (Cooling-only
models)
WNER’S MANUAL
(*1) RAS-B16EKVP-E, RAS-M16EKCVP-E
(*2) RAS-B10EKVP-E, RAS-B13EKVP-E, RAS-M10EKCVP-E,
RAS-M13EKCVP-E
