– 106 –

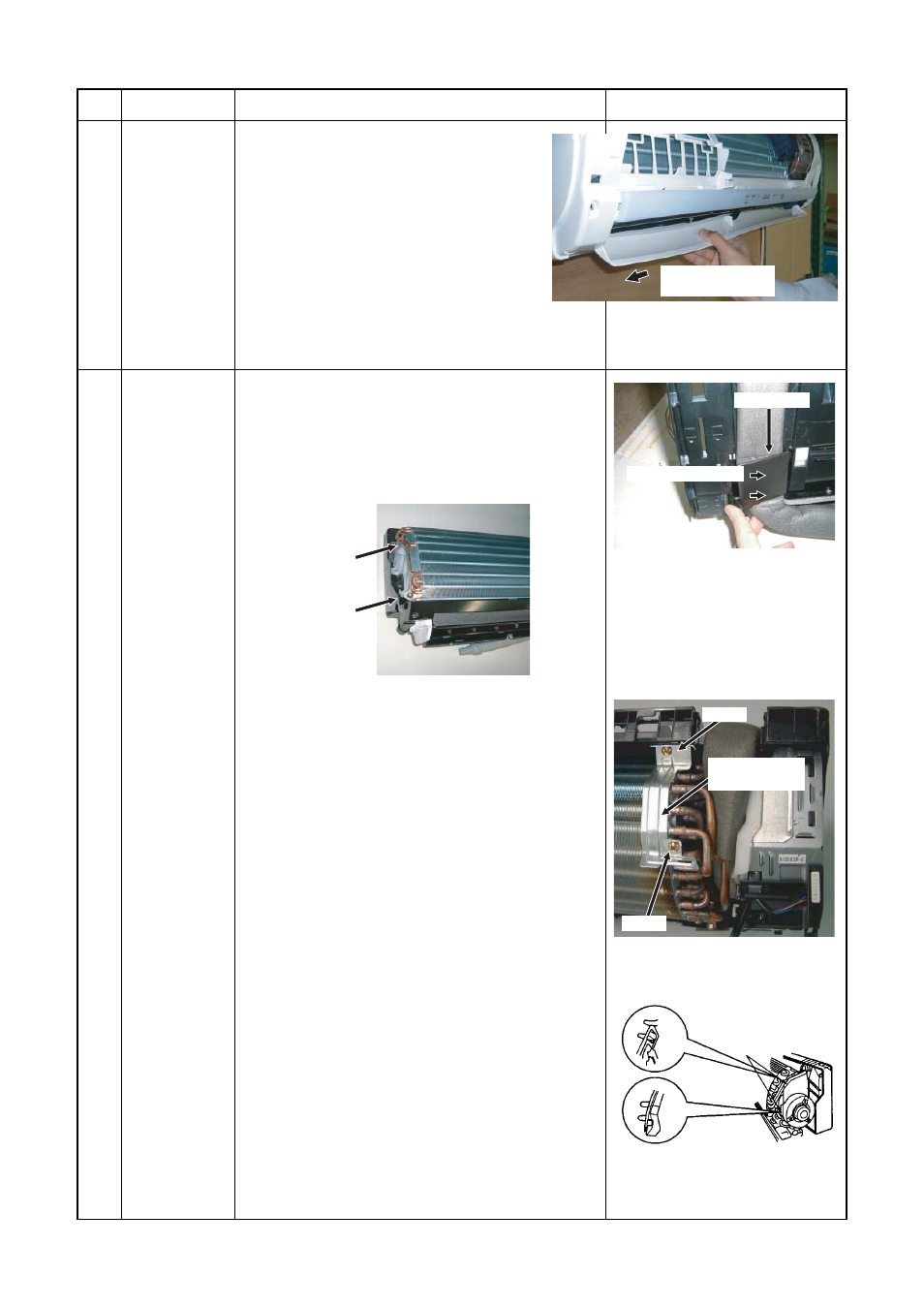

No. Remarks Procedures Part name
$
Evaporator
(Heat
exchanger) 1) Follow to the procedure in the item
#
.
2) Remove the pipe holder from the rear side of the
main unit.
3) Remove two fixing screws at the left side of the
end plate of the heat exchanger.
4) Remove the heat exchanger fixing holder by
removing the two fixing screws used to secure
it.
Hanged part
Disengage the claw
Pipe holder
Screw
Screw
Screw
Heat exchanger
fixing holder
Screw
5) Remove right side of the end plate from two
fixing ribs while sliding slightly the heat ex-
changer rightward.
1) Remove shaft of the horizontal louver
from the back body. (First remove the
left shaft, and then remove other shafts
while sliding the horizontal louver
leftward.)
Horizontal
louver
%
Slide the horizontal
louver leftward
