– 102 –
No. Remarks Procedures Part name
Pull here
Push here
Push here
Pull here
Press with your thumb
Pull here
Holder
Protrusion
Electric dust
collector
Holder
Protrusion
Electric dust
collector

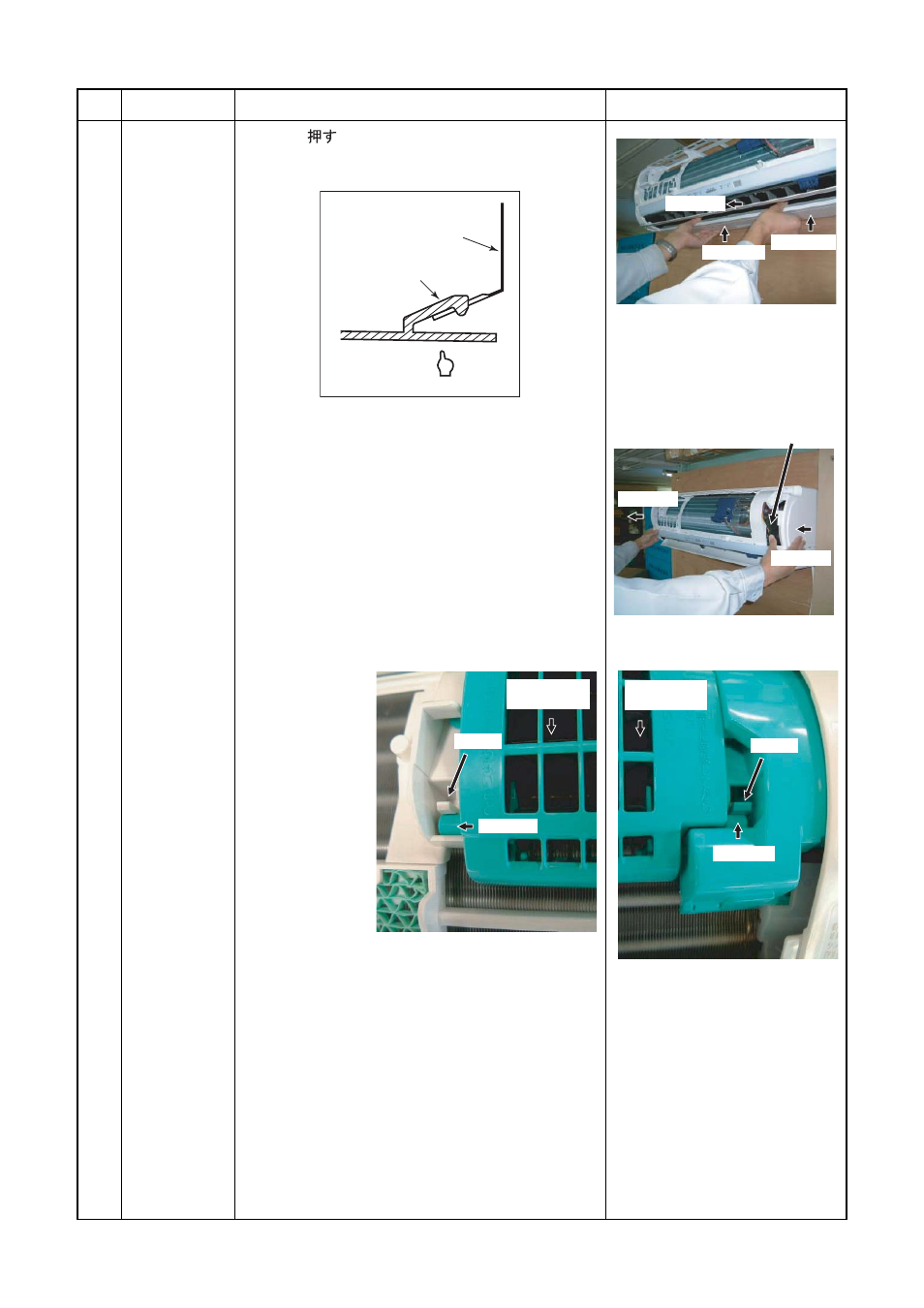

4 ) Push “ ” part under the front panel and
remove hooks of the front panel from the
installation plate.
Push
Front panel
Installation plate
5) Remove the front panel fixing screws (2 pcs.).
6) Push the electric parts box with the right thumb
while pulling the both sides of the front panel
toward you.
1) Push three
center positions
and two lower
center positions
of the air outlet,
and then hang
the hanging
hooks (4 pcs.)
at the top side
of the front
panel to the rear
plate.
2) Insert the
electric dust
collector and
left and right air filters.
Push in the electric dust collector until the
protrusions on both sides are completely
inserted into the holders. If installation is
incomplete, the FILTER indicator (orange) may
light.
3) Tighten two screws.
• Incomplete hanging or incomplete pushing
may cause a dewdrops or generation of a
fluttering sound.
Front panel
!
