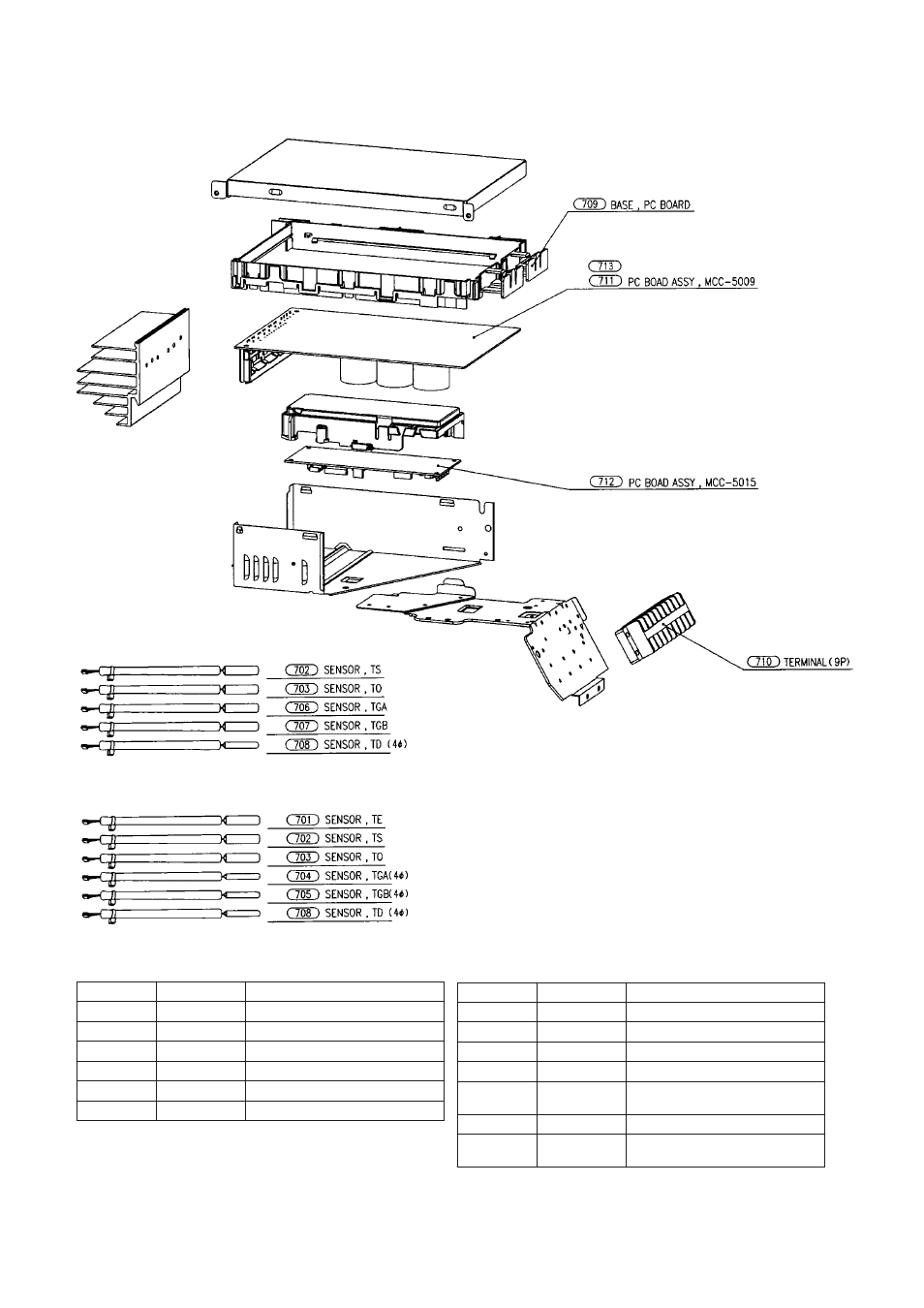

13-3. P.C. Board Layout
Location No. Part No. Description
701 43050412 Sensor , (Heat pump)
702 43050413 Sensor , TS
703 43050415 Sensor , TO
704 43050418 Sensor , TGa (Heat pump)
705 43050419 Sensor , TGb (Heat pump)
706 43050416 Sensor , TGa (Cooling-only)
Location No. Part No. Description
707 43050417 Sensor , TGb (Cooling-only)
708 43050354 Sensor , TD
709 43062228 Base , PC Board
710 4306A027 Terminal Block (9P)
711 4306S645 PC Board Assy , MCC–5009
(M14EAV-E, M14EACV-E)
712 4306S646 PC Board Assy , MCC–5015
713 4306S667 PC Board Assy , MCC–5009
(M18EAV-E, M18EACV-E)
Cooling only model
Heat pump model
