No. Remarks Procedures Part name
1. Detachment
1) Perform step 1 in
1
.
2) Remove the fixing screws (ST1TØ4 x 8 l l l l l 2 pcs.)
used to secure the front cabinet and inverter
cover, the screws (ST1TØ4 x 8
lllll 3 pcs.) used to
secure the front cabinet at the bottom plate, and
the fixing screws (ST1TØ4 x 8
lllll 2 pcs.) used to
secure the motor base.
• The front cabinet is fitted into the side cabinet
(left) at the front left side so pull up the top of
the front cabinet to remove it.
2. Attachment
1) Insert the claw on the front left side into the side
cabinet (left).
2) Hook the bottom part of the front right side onto
the concave section of the bottom plate. Insert
the claw of the side cabinet (right) into the
square hole in the front cabinet.
3) Return the screws that were removed above to
their original positions, and attach them.
"

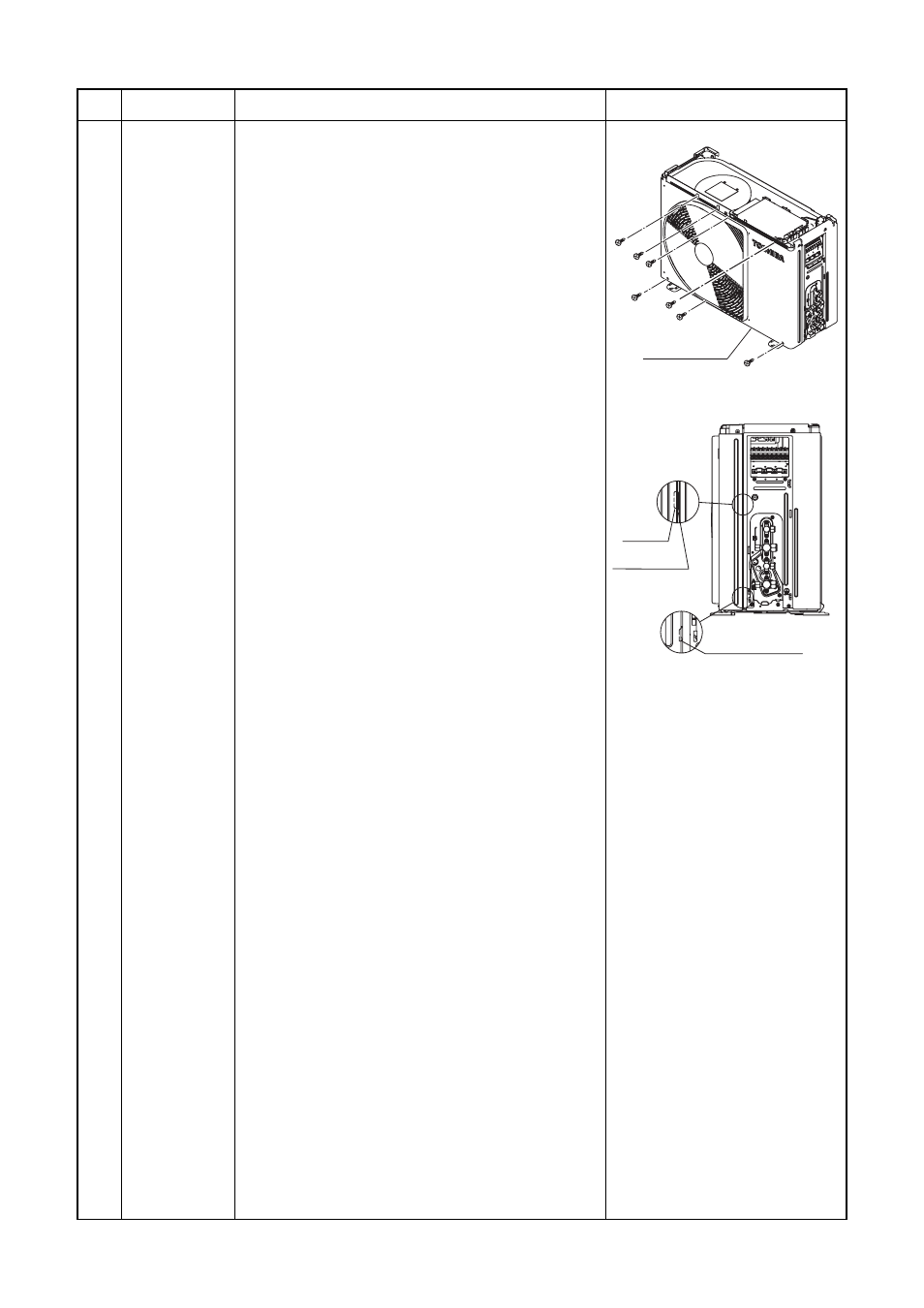

Front cabinet
Square hole
Claw
Front cabinet
Concave section
